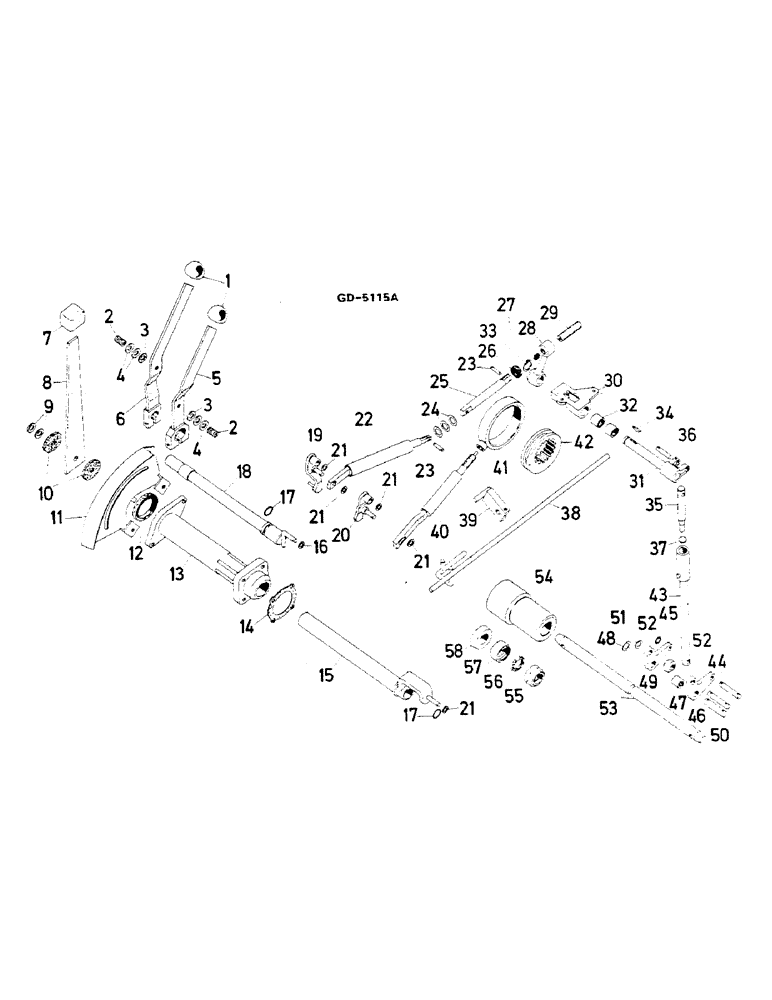

Запчасти Case IH 844S (10-34) - LINKAGE (07) - HYDRAULICS

1

3134919R2

KNOB

BALL

2шт.

2

3145214R1

SPRING

2шт.

3

3145213R1

WASHER

2шт.

4

3058090R1

WASHER

4шт.

5

3145211R91

LEVER

CONTROL

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

80681

LOCK WASHER,5/16"

1шт.

9413946

LOCK NUT,1/4"-20, GA

1шт.

6

3145244R91

LEVER

CONTROL

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

25751R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

1шт.

80681

LOCK WASHER,5/16"

1шт.

9413946

LOCK NUT,1/4"-20, GA

1шт.

7

3137539R2

KNOB

GRIP

1шт.

8

3131372R1

LEVER

STOP GAUGE

1шт.

9

3145247R1

SPRING WASHER

DISC

4шт.

10

3057776R1

DISC

BRAKE

2шт.

11

3145246R92

SECTOR

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

1шт.

274993

SHIELD

1шт.

12

3134874R91

OIL SEAL,30mm ID x 42mm OD x 8mm Thk

OIL

1шт.

13

3057479R3

FLANGED BEARING

BEARING, CONTROL SHAFT

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

6шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

14

3053452R1

GASKET

1шт.

15

3145204R91

SHAFT HOUSING

TUBE, POSITION CONTROL

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

1шт.

16

95-11034

WASHER,1/4"

1шт.

17

3051811R1

O-RING,2.4mm Thk x 17.3mm ID, 72 Duro

2шт.

18

3145241R91

SHAFT

DRAFT CONTOL

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

1шт.

19

3145238R91

LEVER

DRAFT SPOOL

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

1шт.

20

3145208R91

LEVER

POSITION SPOOL

1шт.

23477R1

COTTER PIN,5/64" x 5/8"

1шт.

21

95-11034

WASHER,1/4"

5шт.

22

3145233R91

LINK

SPRING, ELEMENT

1шт.

23

3057645R1

PIN

PILOT

2шт.

103373

COTTER PIN,3/32" x 3/4"

4шт.

24

3145232R1

WASHER

AS REQUIRED

1шт.

25

3145231R1

ROD

PLUNGER, DRAFT LINK

1шт.

932040R1

LOCK PIN,4mm OD x 24mm L, Slotted

1шт.

26

3145168R91

OIL SEAL

OIL

1шт.

27

3145230R1

BUSHING

ROLLER

1шт.

28

3145228R1

ARM

SPARE PART LEVER

1шт.

29

3145229R1

SCREW

SPARE PART ADJUSTING

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

30

3145227R1

BRACKET

BEARING

1шт.

21019R1

SCREW,Hex Soc Hd, 5/16"-18 x 3/4"

1шт.

217911

SCREW

1шт.

933744R1

LOCK WASHER

3/8

1шт.

933843R1

WASHER

LOCK 5/16

1шт.

31

3145223R91

SHAFT

LEVER

1шт.

32

3139045R1

NEEDLE BEARING,Needle, 17.99mm ID x 24mm OD x 16mm W

NEEDLE

2шт.

33

934001R1

SNAP RING,M18, Ext

CIRCLIP

1шт.

34

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

35

3145222R1

ROD

1шт.

36

3145207R1

PIN

1шт.

23480R1

COTTER PIN,5/64" x 1"

1шт.

37

3145221R1

WASHER

1шт.

38

3145215R92

ROD

STOP LIMIT

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

39

3145218R91

STOP

BLOCK, LIMIT

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

3145196R91

ROD ASSY.

ACTUATOR, POSITION CONTROL CPTE - INCLUDES ITEMS 40 THRU 42 -

1шт.

40

3145198R92

ROD

ACTUATOR, POSITION CONTROL

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

41

3145197R1

RING

1шт.

42

3145203R1

DISC

RING, ECCENTRIC

1шт.

43

3145255R91

ROD

1шт.

932296R1

LOCK PIN,M5 x 12, Slotted

1шт.

44

3145258R1

PIN

SPARE PART

1шт.

23476R1

PIN, SPLIT (COTTER),5/64" x 1/2"

PIN, COTTER

2шт.

45

95-11034

WASHER,1/4"

2шт.

46

3145263R1

PIN

SPARE PART

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

PIN, COTTER (M4 x 25)

2шт.

47

3145264R91

NEEDLE BEARING

NEEDLE

1шт.

48

Q2272

WASHER

2шт.

49

3145262R1

ROLLER

1шт.

50

3145261R1

PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

51

714421R2

WASHER

2шт.

52

3145260R91

LEVER

SET OF 2 - AS REQUIRED

1шт.

53

3223152R92

STRIPPER PACKAGE

KIT, REPAIR, ROD, CONTROL

1шт.

54

3145269R1

BUSHING

2шт.

55

3145270R1

BEARING

JOINT, BALL

2шт.

56

3217570R1

RING,21mm ID x 35mm OD x 9mm Thk

SEAL

2шт.

57

3217571R1

SPACER,30mm ID x 42.05mm OD x 16mm L

RETAINER, SEAL

2шт.

58

3145271R1

RING

LIMIT STOP

2шт.
