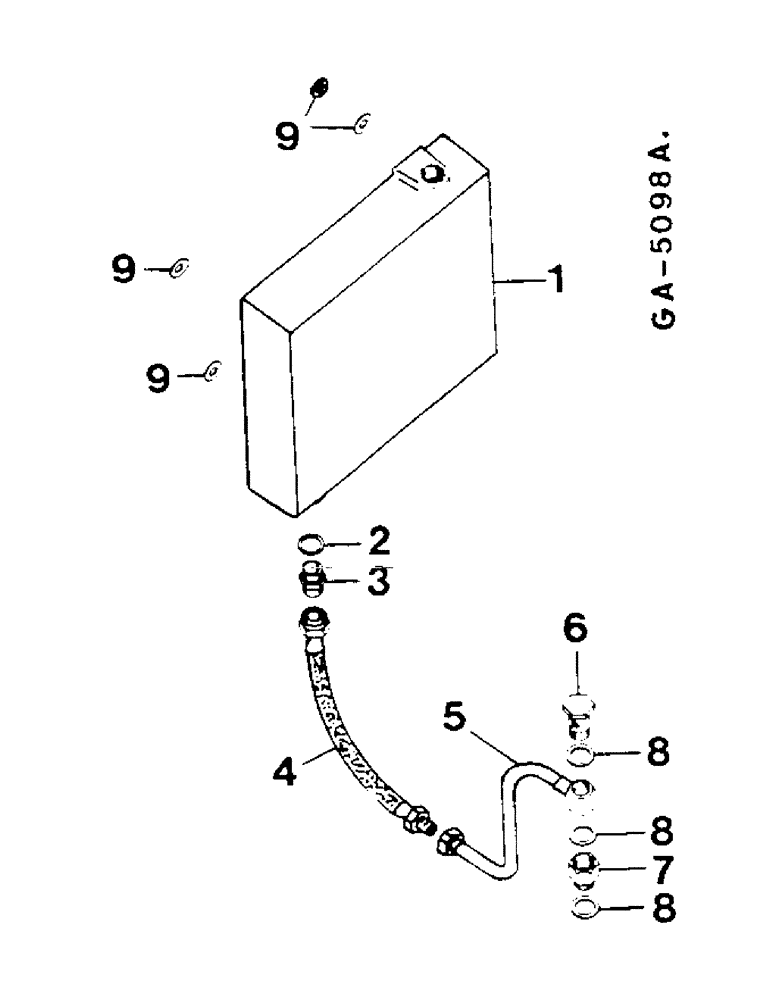

Запчасти Case IH 844S (10-32) - ADDITIONAL OIL RESERVOIR, DRAFT CONTROL (07) - HYDRAULICS

1

3145977R1

RESERVOIR

OIL

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

933334R1

LOCK WASHER,M8

3шт.

2

933608R1

SEALING RING,M26 x 31 x 2

1шт.

3

3130992R1

UNION

1шт.

4

3145980R1

HOSE

1шт.

5

3145979R1

LINE

TUBE

1шт.

6

931081R1

BANJO BOLT,M26 x 1.5 x 60mm

HOLLOW

1шт.

7

3145978R1

UNION

FITTING, REDUCER

1шт.

8

933609R1

RING

3шт.

9

934033R1

WASHER,M8 x 15 x 2

6шт.
