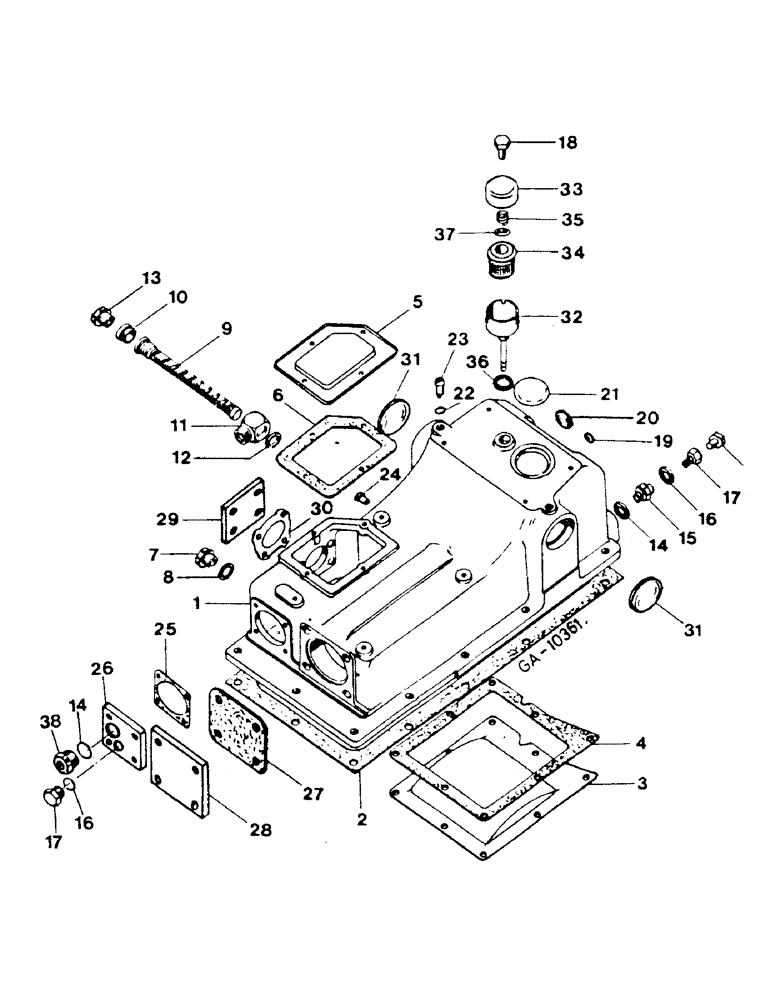

Запчасти Case IH 844S (10-27) - LIFT HOUSING (07) - HYDRAULICS

1

3145166R2

HOUSING

LIFT, HYDRAULIC : 743, Start Serial: 001765

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

1

3145166R2

HOUSING

LIFT, HYDRAULIC : 745S, Start Serial: 002503

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

1

3145166R2

HOUSING

LIFT, HYDRAULIC : 844S, Start Serial: 0020098

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

1

3145166R2

HOUSING

LIFT, HYDRAULIC -- ORDER ALSO 3057627R2, 3057628R3, 4 OF Q 1597, 4 OF 934590R1 - : 743, Serial Range: -001764

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

1

3145166R2

HOUSING

LIFT, HYDRAULIC -- ORDER ALSO 3057627R2, 3057628R3, 4 OF Q 1597, 4 OF 934590R1 - : 745S, Serial Range: -002502

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

1

3145166R2

HOUSING

LIFT, HYDRAULIC -- ORDER ALSO 3057627R2, 3057628R3, 4 OF Q 1597, 4 OF 934590R1 - : 844S, Serial Range: -020097

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

1

3145835R2

HOUSING

LIFT, HYDRAULIC - 743, Start Serial: 001765

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

1

3145835R2

HOUSING

LIFT, HYDRAULIC - 745S, Start Serial: 002503

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

1

3145835R2

HOUSING

LIFT, HYDRAULIC - 844S, Start Serial: 020098

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

1

3145835R2

HOUSING

LIFT, HYDRAULIC - ORDER ALSO 3057627R2, 3057628R3, 4 OF Q1597, 4 OF 934590R1 - : 743, Serial Range: -001764

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

1

3145835R2

HOUSING

LIFT, HYDRAULIC - ORDER ALSO 3057627R2, 3057628R3, 4 OF Q1597, 4 OF 934590R1 - : 745S, Serial Range: -002502

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

1

3145835R2

HOUSING

LIFT, HYDRAULIC - ORDER ALSO 3057627R2, 3057628R3, 4 OF Q1597, 4 OF 934590R1 - : 844S, Serial Range: -020097

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

24864R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

2шт.

24865R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

BOLT, 1/2 X 54 MM

2шт.

138293

HEX SOC SCREW,1/2" - 13 x 1 3/4"

1шт.

3218995R1

WASHER

9шт.

932835R1

LOCK PIN,M16 x 24, Slotted

1шт.

2

3145167R1

GASKET

1шт.

3

3145169R1

COVER

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.

4

3145170R1

GASKET

1шт.

5

3057627R2

COVER

1шт.

934590R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

743, Start Serial: 001765

4шт.

934590R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

745S, Start Serial: 002503

4шт.

934590R1

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

844S, Start Serial: 020098

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

743, Serial Range: -001764

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

745S, Serial Range: -002502

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

844S, Serial Range: -020097

4шт.

103320

LOCK WASHER,5/16"

743, Serial Range: -001764

4шт.

103320

LOCK WASHER,5/16"

745S, Serial Range: -002502

4шт.

103320

LOCK WASHER,5/16"

844S, Serial Range: -020097

4шт.

Q1597

WASHER

743, Start Serial: 001765

4шт.

Q1597

WASHER

745S, Start Serial: 002503

4шт.

Q1597

WASHER

844S, Start Serial: 020098

4шт.

6

3057628R3

GASKET

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

7

716954R1

PLUG,Hex, M22 x 1.5

1шт.

8

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

3137238R91

STRAINER ELEMENT

SUCTION - CONSISTS OF ITEMS 9-12 -

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

9

3059935R91

STRAINER ASSY.

SUCTION

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

10

3058066R1

PLUG

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

11

3058064R1

UNION

CONNECTING

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

12

3058065R1

RING

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

13

933786R1

PLUG,Hex Hd, M26 x 1.5

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

14

933609R1

RING

2шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

15

3145171R1

UNION

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

16

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

17

933223R1

PLUG,Hex, M18 x 1.5

2шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

18

3059999R2

PLUG

2шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

19

172531

PLUG,Exp, 3/4"

EXPANSION

1шт.

20

63556R1

PLUG

50 MM DIA

1шт.

20

934222R1

PLUG,Exp, M30

30 MM DIA

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

21

3057293R1

PLUG

EXPANSION

1шт.

22

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING, PACKING

2шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

23

716447R1

SCREW

FILLISTER HEAD

2шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

24

3058858R2

PLUG

1шт.

25

3053453R1

GASKET

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

26

3145834R2

COVER

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

26

3131893R2

COVER

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

103320

LOCK WASHER,5/16"

4шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

27

3131895R1

GASKET

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

28

3131894R1

COVER

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

271552

SCREW

4шт.

103325

LOCK WASHER,5/8"

4шт.

29

3131876R1

BEARING COVER

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

30

3053452R1

GASKET

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

31

3131892R1

PLUG

EXPANSION 84 MM DIA

2шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

31

3057293R1

PLUG

EXPANSION 80 MM DIA

2шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

TRACTOR W/O HYDRAULIC LIFT, W/O ADDITIONAL CONTROL VALVES.

1шт.

3145873R91

FILTER, ENGINE OIL

FILTER, OIL GAUGE, LEVEL W/BREATHER - CONSISTS OF ITEMS 32-35, WITH 37

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

32

3145878R1

CASE

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

33

3145875R1

COVER

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

34

3221048R1

HYDRAULIC OIL FILTER

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

35

3148682R1

SPRING

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

36

3147942R1

O-RING

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

37

3148683R1

SPRING CUP

RETAINER

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

38

3399847R1

UNION

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.

3216624R91

GASKET

SET OF - AS REQUIRED

1шт.

TRACTOR WITH HYDRAULIC LIFT VERSION.

1шт.

3216625R91

GASKET KIT

SET OF - AS REQUIRED

1шт.

TRACTORS W/O HYDRAULIC LIFT, WITH ADDITIONAL CONTROL VALVES.

1шт.
