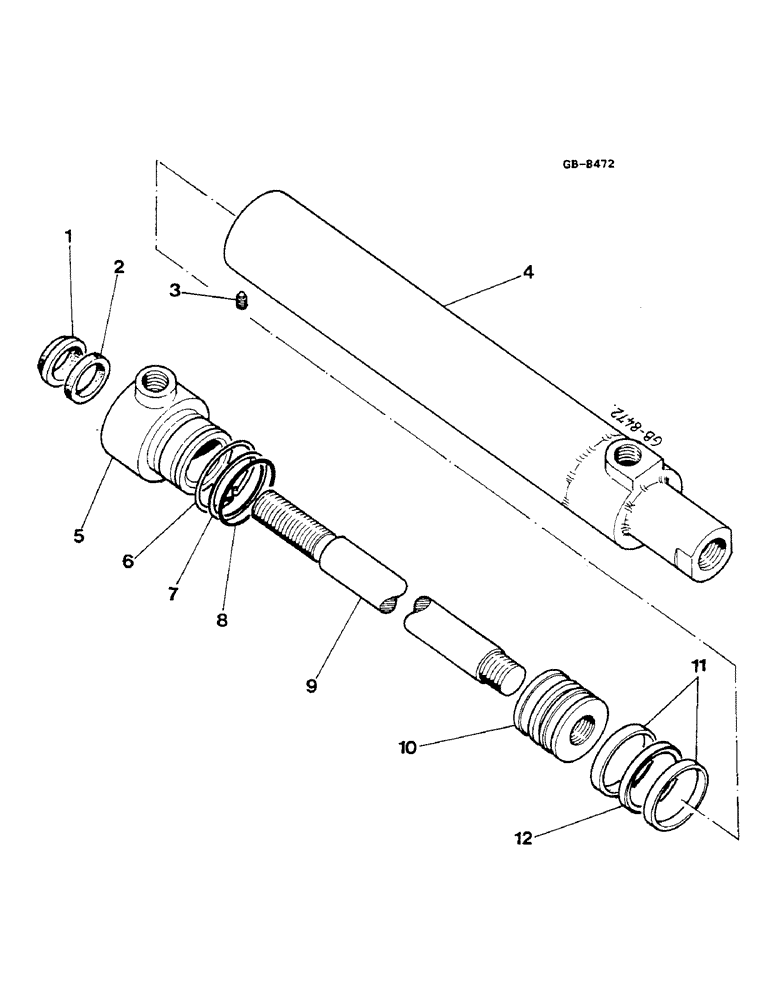

Запчасти Case IH 844S (10-21) - STEERING CYLINDER (07) - HYDRAULICS

3230100R91

HYDRAULIC CYLINDER

STEERING, FOR UNITS WITH 2-WHEEL DRIVE AND FRONT AXLE - 3230074R91 OR 3230082R1 - UNIT I -

1шт.

3230184R91

CYLINDER ASSY.

STEERING - FOR APL-1351 - UNIT II -

1шт.

1

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in Gasket Kit 3230677R1.

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Included in Gasket Kit 3230677R1.

1шт.

3

934724R1

SET SCREW,Hex Skt, M5 x 6mm, Dog Pt

1шт.

4

3230674R1

CYLINDER

- UNIT I -

1шт.

4

3232991R1

CYLINDER

- UNIT II -

1шт.

5

3229430R1

END

CYLINDER

1шт.

FOR444613

PLUG

PLUG

1шт.

6

3147624R1

WIRE

WIRE

1шт.

7

NSS

NOT SOLD SEPARAT

RING, BACK-UP

1шт.

Included in Gasket Kit 3230677R1.

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in Gasket Kit 3230677R1.

1шт.

9

3230675R1

PISTON ROD

- UNIT I -

1шт.

9

3232992R1

PISTON ROD

- UNIT II -

1шт.

10

3230676R1

PISTON

1шт.

11

NSS

NOT SOLD SEPARAT

RING

2шт.

Included in Gasket Kit 3230677R1.

1шт.

12

NSS

NOT SOLD SEPARAT

RING, SLIDING

1шт.

Included in Gasket Kit 3230677R1.

1шт.

3230677R1

SEAL KIT

SET, SEALING, - WITH 1, 2, 7, 8, 11, 12

1шт.
