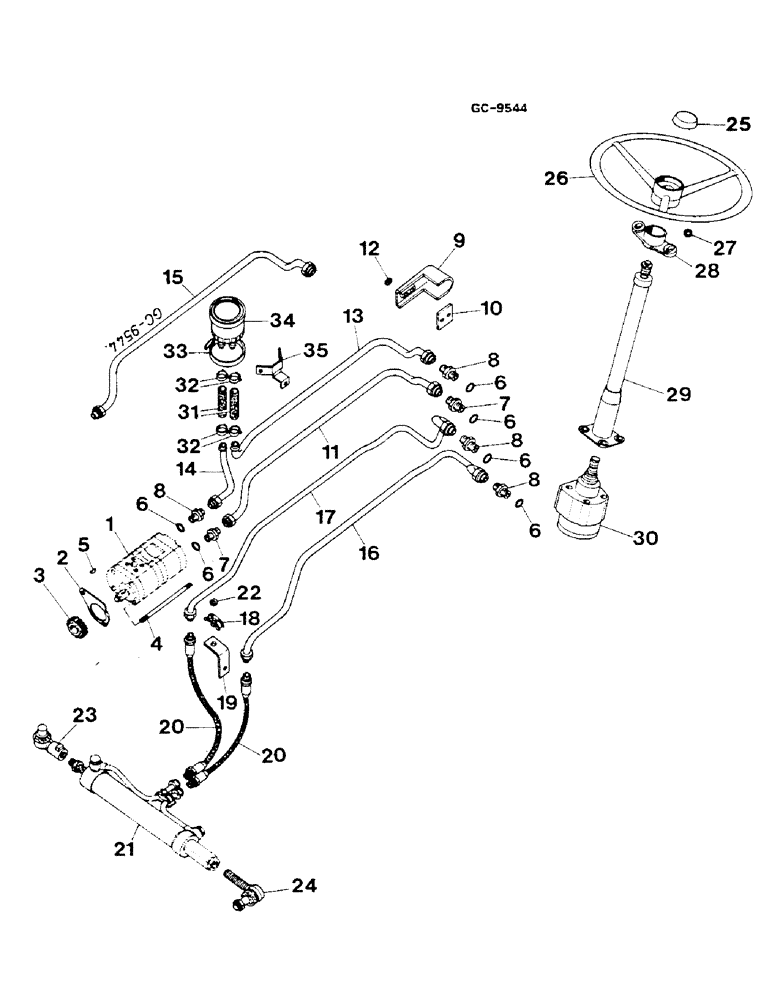

Запчасти Case IH 844S (10-02) - POWER STEERING (07) - HYDRAULICS

1

PUMP, TANDEM - SEE TANDEM PUMP -

1шт.

2

3057397R2

GASKET

1шт.

3

3057396R1

GEAR

DRIVE 20 TEETH

1шт.

4

3147536R1

STUD

210 MM

1шт.

4

3147930R1

STUD

265 MM

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

3шт.

21070R1

NUT,3/8"-16, G8

3шт.

5

932618R1

WOODRUFF KEY,3mm x 5mm x 12.65mm

1шт.

6

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

6шт.

7

3058415R1

UNION

2шт.

8

3131914R1

PORT

UNION

4шт.

9

3059448R1

CAP

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

743/745S

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

884S

3шт.

10

3059449R1

PLATE

COUNTER

1шт.

11

3147934R2

PIPE

PRESSURE - 743/745S -

1шт.

11

3147933R2

PIPE

PRESSURE - 884S -

1шт.

11

3223605R1

PIPE

SPARE PART PRESSURE - 884S - - FOR CANADA

1шт.

12

446178

WASHER,#12

2шт.

13

3230104R2

PIPE

RETURN - 743/745S -

1шт.

13

3230103R2

PIPE

RETURN - 884S -

1шт.

14

3230102R2

PIPE CLAMP

RETURN

1шт.

15

3147936R1

PIPE

RETURN - 743/745S - - FOR TRACTORS W/OUT COMPENSATING RESERVOIR -

1шт.

15

3223606R1

PIPE

SPARE PART RETURN - 884S - - FOR CANADA -

1шт.

16

3147939R2

PIPE

PRESSURE, CONTROL VALVE TO STEERING CYLINDER, LH - - 743/745S -

1шт.

16

3147937R2

PIPE

PRESSURE, CONTROL VALVE TO STEERING CYLINDER, LH - - 884S -

1шт.

17

3147940R2

PIPE

PRESSURE CONTROL VALVE TO STEERING CYLINDER, RH - 743/745S -

1шт.

17

3147938R2

PIPE

PRESSURE, CONTROL VALVE TO STEERING CYLINDER, RH - 884S -

1шт.

18

3217247R1

CLAMP

1шт.

931236R1

BOLT,Hex, M6 x 1 x 35, Cl 5.6

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

19

3145415R2

ANGLE

BRACKET

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

1шт.

103324

LOCK WASHER,9/16"

1шт.

20

3147528R2

HOSE

PRESSURE

2шт.

21

CYLINDER, STEERING - SEE STEERING CYLINDER - 3224385R92 AND 3233187R91 -

1шт.

22

120392

WASHER,1/4", SAE

1шт.

23

JOINT, BALL - AS REQUIRED - SEE STEERING CYLINDER - 3224285R92, 3230100R91 3233187R91, 3230184R91, 3146036R94 -

1шт.

24

JOINT, BALL - AS REQUIRED - SEE STEERING CYLINDER - 3224285R92, 3230100R91, 3233187R91, 3230184R91 AND 3146036R94 -

1шт.

25

790680R1

BUTTON

CAP, STEERING WHEEL - PETRI + VDM -

1шт.

25

3232081R1

CAP

STEERING - KS -

1шт.

26

3057154R91

WHEEL (STEERING)

- PETRI-

1шт.

26

3057155R91

STEERING WHEEL

- VDM -

1шт.

26

3232080R1

SCREW

- KS -

1шт.

27

50793H

WASHER

2шт.

28

3059783R1

BEARING CARRIER

STEERING COLUMN

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

29

HOUSING, STEERING COLUMN - SEE STEERING COLUMN FOR POWER STEERING -

1шт.

931773R1

HEX SOC SCREW,M10 x 35mm, Cl 8.8

3шт.

30

VALVE, CONTROL - SEE STEERING CONTROL VALVE -

1шт.

31

3215094R1

HYDRAULIC HOSE,13.00 mm ID x 70.00 mm, SAE 30R2

2шт.

32

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

4шт.

33

755021R92

CLAMP

1шт.

34

3220700R3

RESERVOIR

1шт.

35

3230105R1

SUPPORT

SPARE PART A- 45 MM - 743/745S -

1шт.

35

3232199R1

SUPPORT

A-85 MM - 884S -

1шт.
