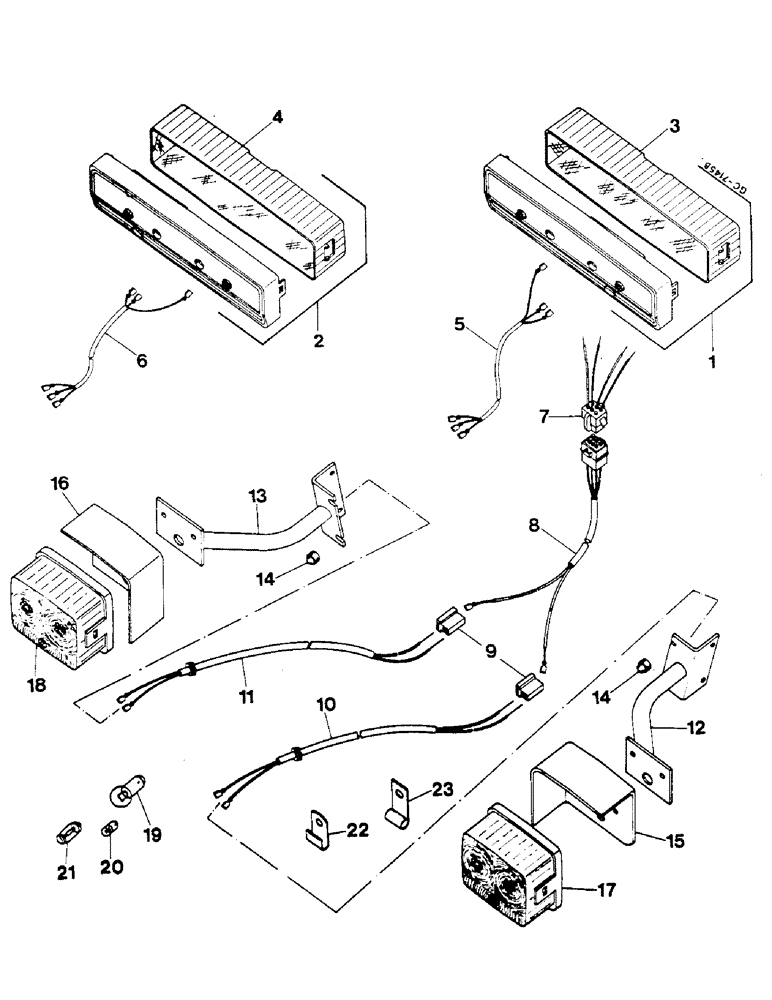

Запчасти Case IH 844S (08-22) - FLASH LAMPS (06) - ELECTRICAL

1

3221209R92

LAMP, TAIL

LIGHT, TAIL FLASH-STOP, LH "HELLA"

1шт.

2

3221210R92

LAMP, TAIL

LIGHT, TAIL FLASH-STOP, RH "HELLA"

1шт.

931313R1

SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8

BOLT, M5 X 20 MM

4шт.

933972R1

NUT

M5

4шт.

887416R1

WASHER

4шт.

3

3224286R1

LENS

GLASS LH

1шт.

4

3224287R1

LENS

GLASS, RH

1шт.

5

3226114R1

CABLE

FENDER, LH

1шт.

6

3226115R1

CABLE

FENDER, RH

1шт.

7

3226116R1

CABLE

CONNECTING

1шт.

8

3226117R1

CABLE

LAMP, FLASH AND POSITION LIGHT, FRONT

1шт.

9

3226355R1

SOCKET/RECEPTACLE

CONNECTING, 2-POLE - ORDER ALSO 3226356R1 -

2шт.

3226356R1

CONNECTOR, ELEC

CONNECTOR CABLE

4шт.

10

3226358R1

HARNESS

FRONT LH

1шт.

11

3226357R1

HARNESS

FRONT RH

1шт.

12

3226112R91

SUPPORT

LH

1шт.

832-10406

NUT,M6 x 1, Cl 8

(-XXX)

4шт.

3229125R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

(XXX-)

4шт.

934055R1

WASHER,M6.4

4шт.

13

3226113R91

SUPPORT

RH

1шт.

832-10406

NUT,M6 x 1, Cl 8

(-XXX)

4шт.

3229125R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

(XXX-)

4шт.

934055R1

WASHER,M6.4

4шт.

14

3221725R1

CAP

(-XXX)

8шт.

15

3229611R1

CAP

PROTECTION LH

1шт.

16

3229612R1

CAP

PROTECTION RH

1шт.

17

3226119R1

LIGHT

FLASH AND POSITION LIGHT LH HELLA

1шт.

18

3226120R1

LIGHT

FLASH AND POSITION LIGHT, RH HELLA

1шт.

931313R1

SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8

BOLT, M5 X 20 MM

4шт.

933972R1

NUT

M5

4шт.

887416R1

WASHER

4шт.

19

3131227R1

BULB,P25-1, 12V, 21W

Lamp

6шт.

20

3051192R1

BULB

LAMP, 12V/10W

2шт.

21

710196R1

BULB,C5W, 12V, 5W

As Required

1шт.

22

3229715R1

CLIP

CABLE - AS REQUIRED

1шт.

23

3229713R1

CLIP

CABLE

2шт.
