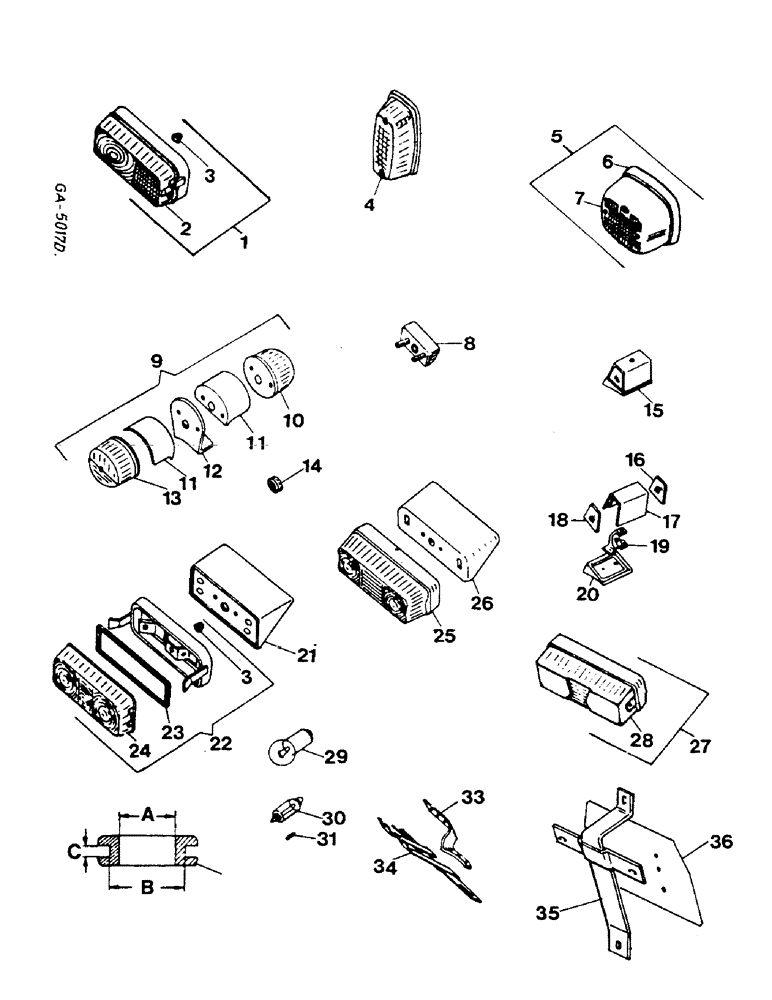

Запчасти Case IH 844S (08-17) - FLASH LAMPS (06) - ELECTRICAL

1

3221211R91

INDICATOR LIGHT

FLASH AND POSITION

2шт.

931313R1

SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8

BOLT, M5 X 20 MM

4шт.

933972R1

NUT

M5

4шт.

887416R1

WASHER

4шт.

2

3224290R1

LENS

2шт.

3

3145948R1

GROMMET

2шт.

4

3145582R91

LIGHT, FLASH AND TAIL POSITION "HELLA" WHITE/YELLOW

2шт.

934542R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 16

8шт.

933971R1

WASHER

8шт.

5

3121089R91

LIGHT

FLASH AND POSITION LIGHT "HELLA"

2шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

BOLT, M4 X 25 MM

8шт.

933993R1

NUT

M4

8шт.

933971R1

WASHER

8шт.

6

3148502R1

BASE

HOUSING

2шт.

934818R1

SCREW,M3.9 x 1.4 x 1.4mm

4шт.

7

3148501R1

LENS

2шт.

8

3053400R92

LIGHT, WARNING

NUMBER PLATE

1шт.

22709R1

BOLT

SPARE PART 1/4 X 19 MM

2шт.

103319

LOCK WASHER,1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

9

3145949R91

LIGHT ASSY.

FLASH, POSITION AND TAIL, LH

1шт.

9

3145950R91

LIGHT ASSY.

FLASH, POSITION AND TAIL, RH

1шт.

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

BOLT, M5 X 10 MM

4шт.

933986R1

LOCK WASHER,M5

4шт.

933187R1

NUT,M5, Cl 8

4шт.

10

3147124R91

LIGHT, FLASH-TAIL, YELLOW/RED

1шт.

11

3146892R1

PROTECTOR

CAP

4шт.

12

3145951R1

SUPPORT

BRACKET, LH

1шт.

12

3145952R1

SUPPORT

BRACKET, RH

1шт.

13

3146894R1

LIGHT

FLASH AND POSITION, WHITE/YELLOW

2шт.

14

711793R1

GROMMET

2шт.

15

3131091R91

LIGHT

TAIL AND POSITION LIGHT, LH - CONSISTS OF ITEMS 15 THRU 20 -

1шт.

15

3131092R91

LIGHT

TAIL AND POSITION LIGHT, RH - CONSISTS OF ITEMS 15 THRU 20 -

1шт.

16

3058236R91

LENS

RED, LH ROUGE LINKS -

1шт.

16

3058237R91

LENS

RED, RH ROUGE RECHTS

1шт.

17

HOUSING, - ORDER 3131091/092R1 -

1шт.

931248R1

BOLT

M4 X 20 MM

2шт.

18

3058238R91

LENS

WHITE, LH

1шт.

18

3058239R91

LENS

WHITE, RH

1шт.

19

SOCKET, BULB, - ORDER 3131091/092R91

2шт.

20

3058240R1

SUPPORT

2шт.

20775R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 13

4шт.

21

3221852R1

SUPPORT

2шт.

934941R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 19

1шт.

934543R1

SELF-TAP SCREW,Hex Hd, M6.3 x 19

1шт.

931519R1

SELF-TAP SCREW,Hex Hd, M6.3 x 25

1шт.

934207R1

LOCK WASHER,Ext Tooth, M6

AS REQUIRED

1шт.

22

3145942R91

LAMP, TAIL

LIGHT, TAIL FLASH-STOP, LH - HELLA -

1шт.

22

3145943R91

LAMP, TAIL

LIGHT, TAIL FLASH-STOP, RH "HELLA"

1шт.

23

3145947R1

GASKET

2шт.

24

3145945R1

LENS

LH. RED/YELLOW

1шт.

24

3145946R1

LENS

RH RED/YELLOW

1шт.

25

3145589R91

LIGHT

FLASH-STOP-TAIL, RED/YELLOW "ULO" -

2шт.

26

3145593R91

SUPPORT

- ULO -

2шт.

933843R1

WASHER

BOLT, 8 MM

4шт.

43362

NUT,M8 x 1.25, Cl 10

4шт.

27

3221209R92

LAMP, TAIL

LIGHT, TAIL FLASH-STOP, LH - HELLA -

1шт.

27

3221210R92

LAMP, TAIL

LIGHT, TAIL FLASH-STOP, RH - HELLA -

1шт.

931313R1

SCREW,Slotted Cheese, M5 x 0.8 x 20mm, Cl 4.8

BOLT, M5 X 20 MM

4шт.

933972R1

NUT

M5

4шт.

887416R1

WASHER

4шт.

28

3224286R1

LENS

LH

1шт.

28

3224287R1

LENS

RH

1шт.

29

711335R1

BULB,R19/5, 12V, 5W

12V/18/5W

1шт.

29

3051192R1

BULB

LAMP, 12V/10W

1шт.

29

3131227R1

BULB,P25-1, 12V, 21W

Lamp

1шт.

29

3131234R1

BULB,P25-2, 12V, 5W

LAMP, 12V/21/5W - As Required

1шт.

30

710196R1

BULB,C5W, 12V, 5W

As Required

1шт.

31

3050199R1

LAMP

12V/4W - AS REQUIRED

1шт.

32

34712D

GROMMET

A- 10MM, B- 13MM

1шт.

32

710489R3

GROMMET

A- 12MM, B- 20MM, C- 4MM - AS REQUIRED

1шт.

33

3141350R1

STRAP

RETAINER

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

34

3141351R91

BRACKET

LICENCE PLATE, SEMI-CROWN TYPE FENDERS -

1шт.

35

3145612R91

SUPPORT

BRACKET, LICENCE PLATE

1шт.

934543R1

SELF-TAP SCREW,Hex Hd, M6.3 x 19

2шт.

934055R1

WASHER,M6.4

2шт.

36

3058317R2

TYPE PLATE

LICENCE - FOR FRANCE ONLY -

1шт.

21203R1

SCREW

BOLT, NR. 10 X 8 MM

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

2шт.
