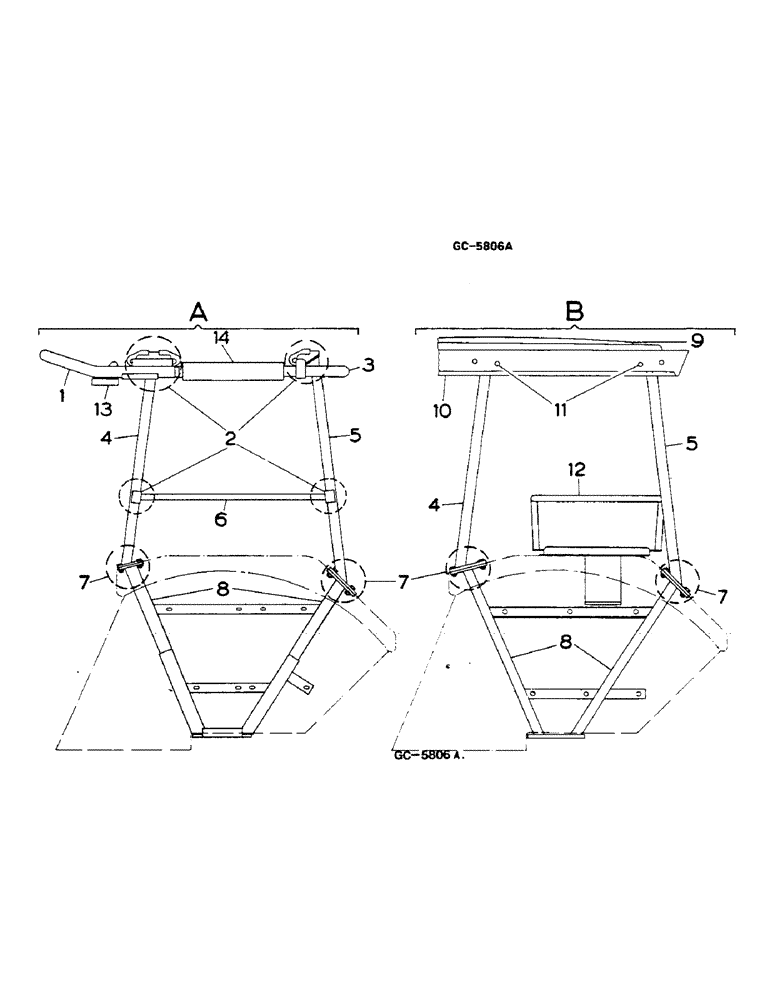

Запчасти Case IH 844S (13-89) - SAFETY FRAME (05) - SUPERSTRUCTURE

1

TUBE FRONT, SEE VIEW A

1шт.

2

3224803R1

CLAMP

2шт.

3224801R1

ANGLE

SPARE PART LH

1шт.

3224802R1

ANGLE

SPARE PART RH

1шт.

3224805R1

INSULATOR, LH

3шт.

3224806R1

INSULATOR, RH

3шт.

3223800R1

BLOWER SWITCH

STRAP, CABLE

8шт.

931592R1

SELF-TAP SCREW,Hex Hd, M6.3 x 19

2шт.

931312R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

3221581R1

SPRING WASHER

10 MM

2шт.

3221580R1

BELLEVILLE WASHER

LOCK 12 MM

6шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

933968R1

NUT,M12 x 1.25, Cl 6

6шт.

905304R1

PIN, GROOVED

SPARE PART GROWER 10 X 50 MM

2шт.

905279R1

WASHER

SEE VIEW A

2шт.

3

TUBE, REAR, SEE VIEW A

1шт.

4

TUBE, FRONT

1шт.

5

TUBE, REAR

1шт.

6

FRAME, PASSENGER SEAT, SEE VIEW A

1шт.

7

3221607R1

CAP

8шт.

931656R1

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

8шт.

933969R1

NUT,M14 x 1.5, Cl 6

8шт.

905406R1

WASHER,M14 x 22 x 3

16шт.

3223099R1

WASHER

AS REQUIRED

1шт.

8

3147590R1

BRACKET, REINFORCEMENT, LH

1шт.

8

3148684R1

SUPPORT

SPARE PART BRACKET, REINFORCEMENT, LH - FOR FRANCE - TIMMERMAN "CAB" -

1шт.

8

3217122R1

FUNNEL

FRAME BRACKET, REINFORCEMENT, LH - TIMMERMAN "SAFETY FRAME " -

1шт.

8

3147591R91

BRACKET

SPARE PART REINFORCEMENT, RH

1шт.

8

3148685R1

SUPPORT

SPARE PART BRACKET, REINFORCEMENT, RH - FOR FRANCE - TIMMERMAN "CAB" -

1шт.

8

3217123R1

STIFFENER

BRACKET, REINFORCEMENT, RH - TIMMERMAN " SAFETY CAB " -

1шт.

931382R1

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 4.6

16шт.

931295R1

CARRIAGE BOLT,Sq Nk, M10 x 25mm, Cl 4.6

BOLT, M10X 25 MM

12шт.

933965R1

LOCK WASHER,M10

32шт.

100016

NUT,M10 x 1.5, Cl 8

12шт.

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

10.5 X 21 X 2 MM

32шт.

3141484R1

WASHER

11.5 X 34 X 1.5 MM - WITH SQUARE HOLE -

12шт.

934050R1

WASHER,M11

SPARE PART 11.5 X 34 X 3 MM - WITH SQUARE HOLE -

16шт.

3216420R1

SPACER

SPARE PART 1 MM

1шт.

3216421R1

SPACER

2 MM

1шт.

3216422R1

SPACER

SPARE PART 3 MM - AS REQUIRED

1шт.

9

PANEL, ROOF, SEE VIEW B

1шт.

10

FRAME, ROOF, SEE VIEW B

1шт.

11

3223697R1

WASHER

SHEET, SLIDING

4шт.

3221592R1

CAP

4шт.

3224572R1

CYLINDER END CAP

6шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

3221580R1

BELLEVILLE WASHER

LOCK 12 MM

8шт.

933968R1

NUT,M12 x 1.25, Cl 6

6шт.

934673R1

WASHER,M8.4 x 25 x 2

4шт.

933963R1

WASHER,M13 ID x 24 OD x 2.5 Thk

- UNIT B -

8шт.

12

FRAME, PASSENGER SEAT, SEE VIEW B

1шт.

13

3142273R1

PROTECTOR

SPARE PART CAP, SEE VIEW A

2шт.

14

3224804R1

INSULATOR

- ITEMS 1, 3, 4, 5, 6, 9, 10, 12, WILL BE SUPPLIED BY - - GEORG FRITZMEIER KG WESTERN GERMANY -, SEE VIEW A

1шт.
