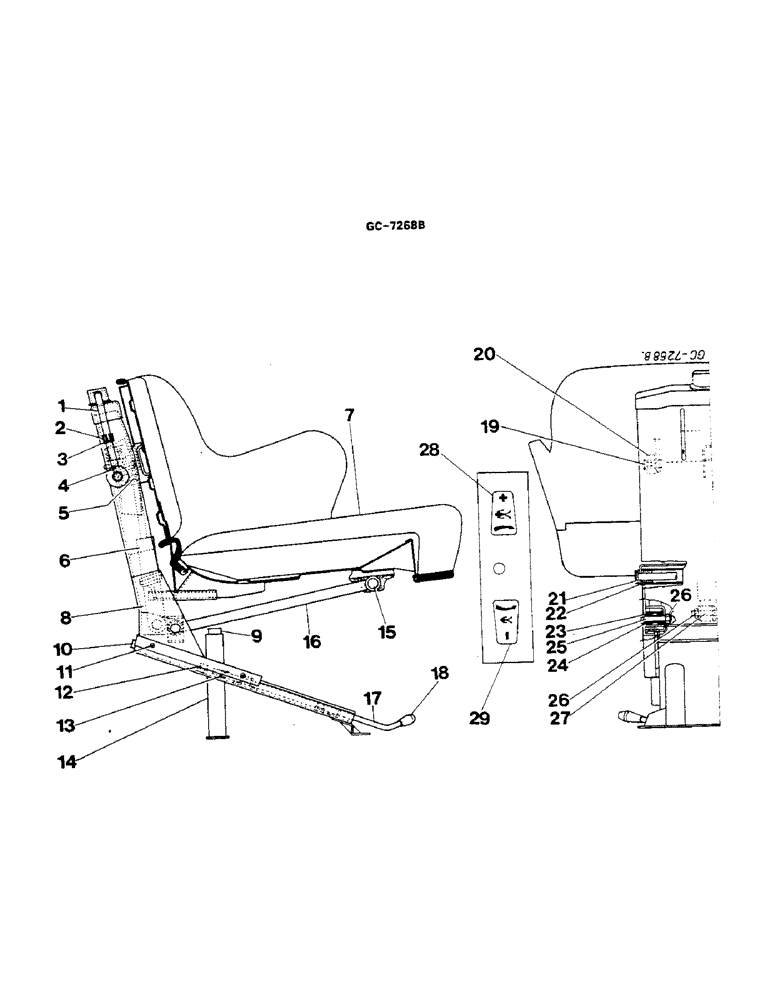

Запчасти Case IH 844S (13-77) - SEAT, "SABLE" DE LUXE, FRENCH VERSION (05) - SUPERSTRUCTURE

3220479R91

SEAT

- CONSISTS OF ITEMS 1 THRU 27 -

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

1

3148983R1

CRANK

SPRING SETTING

1шт.

2

3216013R1

SPRING

SPARE PART

2шт.

3

3220476R1

RIVET

3.2 X 11 MM

2шт.

4

3148989R1

SPRING

2шт.

5

905428R1

BOLT,Hex, M4 x 0.7 x 25mm, Cl 8.8

1шт.

934946R1

LOCK WASHER,Ext Tooth, M4

1шт.

934947R1

THIN NUT,M4 x .7, Thin

M4

1шт.

6

3148988R1

SHOCK ABSORBER

1шт.

7

3220475R1

SEAT

1шт.

8

3220474R1

FUNNEL

FRAME CARRIER

1шт.

9

3137779R1

BUMPER

1шт.

10

3141836R1

SLIDE

4шт.

11

3220473R1

SCREW

BOLT, M4 X 8 MMM

2шт.

12

905429R1

HEX SOC SCREW,M8 x 10mm, Cl 8.8

2шт.

13

3220472R1

VALVE SPRING

1шт.

14

3220471R1

BRACKET

SUPPORT, SEAT

1шт.

15

933970R1

NUT,M12 x 1.5, Thin

M12

1шт.

16

3220469R1

ARM

LINK

1шт.

17

3220468R1

LEVER

1шт.

18

3216021R1

HANDLE

KNOB

1шт.

19

3216019R1

END FITTING

BOLT

2шт.

20

3216020R1

ROLL

2шт.

21

3220467R1

AXLE PIN

1шт.

22

3147309R1

BUSHING

2шт.

23

3148993R1

BUSHING

4шт.

24

3220466R1

SPACER

2шт.

25

3220465R1

BOLT, M8 X 45 MM

2шт.

26

934286R1

THIN NUT,M8 x 1.25, Thin

3шт.

27

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

28

3216016R1

PRODUCT GRAPHIC

1шт.

29

3216018R1

PRODUCT GRAPHIC

1шт.
