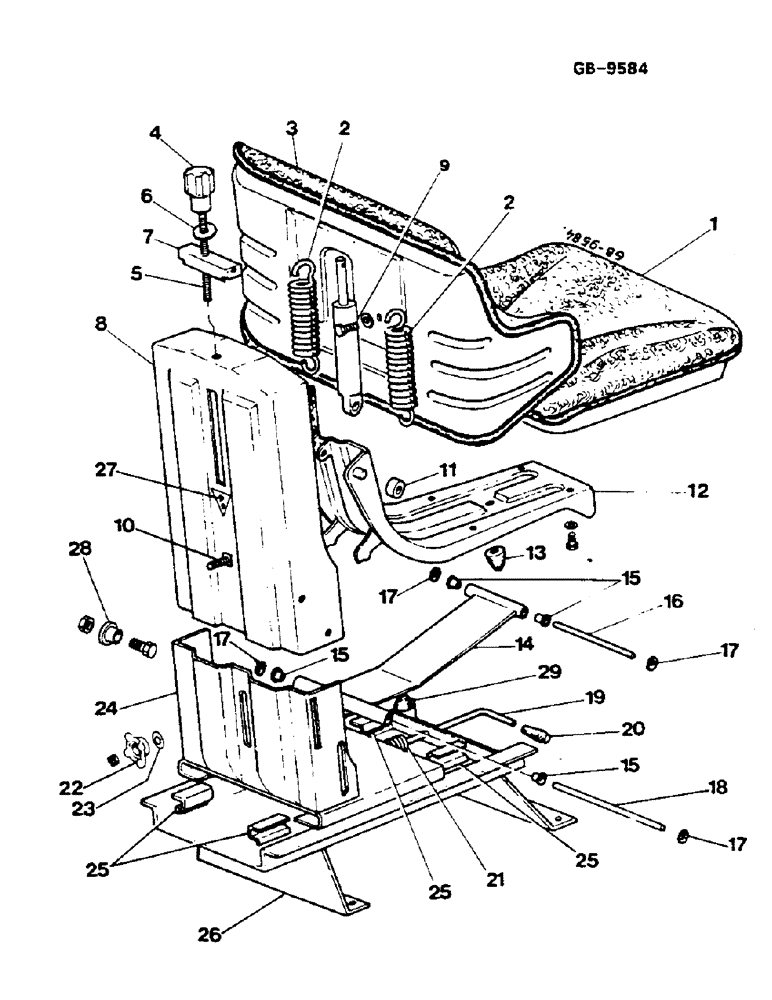

Запчасти Case IH 844S (13-74) - SEAT, "SABLE" 2500/7 (05) - SUPERSTRUCTURE

3225811R91

SEAT ASSY.

- CONSISTS OF ITEMS 1 THRU 29 -

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

1

3225422R1

CUSHION

1шт.

2

3148989R1

SPRING

2шт.

3

3225421R1

BACKREST

CUSHION

1шт.

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

Tooth

4шт.

4

3225416R1

CAP

1шт.

5

3225425R1

BUTTON

SPINDLE, ADJUSTING

1шт.

933446R1

NUT

M10

1шт.

6

3141838R1

WASHER

1шт.

7

3225407R1

HOLDER

1шт.

8

3230886R1

CARRIER

1шт.

9

3148988R1

SHOCK ABSORBER

1шт.

905428R1

BOLT,Hex, M4 x 0.7 x 25mm, Cl 8.8

1шт.

931103R1

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

934947R1

THIN NUT,M4 x .7, Thin

M4

1шт.

934286R1

THIN NUT,M8 x 1.25, Thin

1шт.

10

931876R1

CARRIAGE BOLT,Square Neck, M8 x 45mm, Class 4.6

1шт.

11

3225420R1

ROLLER

2шт.

12

3225424R1

FRAME

1шт.

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

Tooth

4шт.

13

3225398R1

BUMPER

RUBBER

1шт.

14

3225427R1

ARM ASSY.

GUIDE, SEAT

1шт.

905429R1

HEX SOC SCREW,M8 x 10mm, Cl 8.8

1шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

Tooth

1шт.

15

3225414R1

BUSHING

4шт.

16

3225409R1

PIN

ROCKER, FRONT

1шт.

17

3225412R1

WASHER

WASHER, RETAINING

4шт.

18

3225408R1

PIN

ROCKER, REAR

1шт.

19

3225405R1

LEVER

SPARE PART

1шт.

20

3216021R1

HANDLE

KNOB

1шт.

21

3225397R1

SPRING

1шт.

22

3230345R1

KNOB

1шт.

934286R1

THIN NUT,M8 x 1.25, Thin

1шт.

23

934673R1

WASHER,M8.4 x 25 x 2

1шт.

24

3230344R1

CARRIER

1шт.

25

3141836R1

SLIDE

4шт.

26

3230343R1

SUPPORT

1шт.

27

3225418R1

PRODUCT GRAPHIC

SPARE PART

1шт.

28

3230349R1

BUSHING

2шт.

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

934286R1

THIN NUT,M8 x 1.25, Thin

2шт.

29

3230346R1

BUMPER

SPARE PART RUBBER

1шт.
