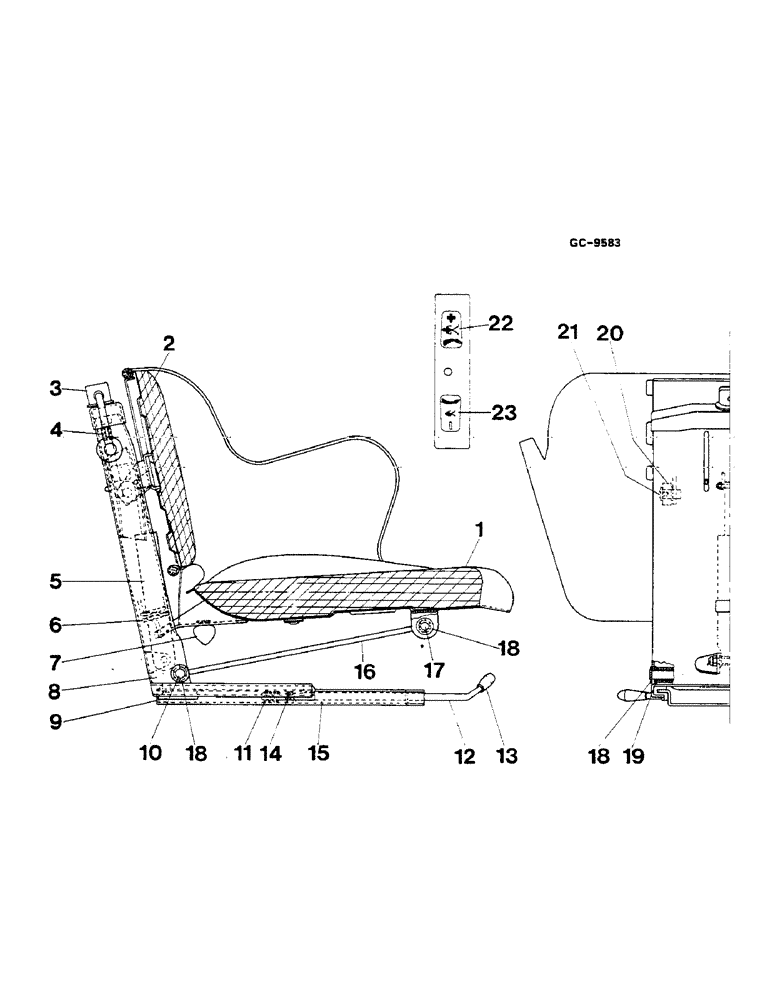

Запчасти Case IH 844S (13-71) - SEAT, "SABLE" SUPER DE LUXE (05) - SUPERSTRUCTURE

3232842R91

SEAT

- CONSISTS OF ITEMS 1 THRU 24 -

1шт.

1

3232077R1

CUSHION

1шт.

2

3232843R1

BACK

CUSHION

1шт.

3

3232838R1

CRANK, SPRING SETTING

1шт.

3148984R1

RIVET

4 X 8 MM

2шт.

4

3216013R1

SPRING

SPARE PART

1шт.

5

3148988R1

SHOCK ABSORBER

1шт.

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

934286R1

THIN NUT,M8 x 1.25, Thin

1шт.

905428R1

BOLT,Hex, M4 x 0.7 x 25mm, Cl 8.8

1шт.

934947R1

THIN NUT,M4 x .7, Thin

M4

1шт.

934946R1

LOCK WASHER,Ext Tooth, M4

1шт.

6

3148989R1

SPRING

2шт.

7

3225398R1

BUMPER

1шт.

8

3232844R1

CARRIER

SPARE PART

1шт.

9

3141836R1

SLIDE

4шт.

10

3232073R1

PIN

ROCKER, REAR

1шт.

11

3225397R1

SPRING

1шт.

12

3232851R1

LEVER

STOP

1шт.

13

3216021R1

HANDLE

KNOB

1шт.

14

905429R1

HEX SOC SCREW,M8 x 10mm, Cl 8.8

1шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

1шт.

15

3232845R1

SUPPORT

SPARE PART SEAT

1шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

4шт.

16

3232075E1

GUIDE, SEAT

1шт.

17

3225409R1

PIN

ROCKER, FRONT

1шт.

18

3225412R1

WASHER

WASHER, RETAINING

4шт.

19

3147309R1

BUSHING

4шт.

20

3216020R1

ROLL

2шт.

21

3216019R1

END FITTING

BOLT

2шт.

22

3216016R1

PRODUCT GRAPHIC

1шт.

23

3216018R1

PRODUCT GRAPHIC

1шт.

24

3220462R1

PRODUCT-GRAPHIC

1шт.
