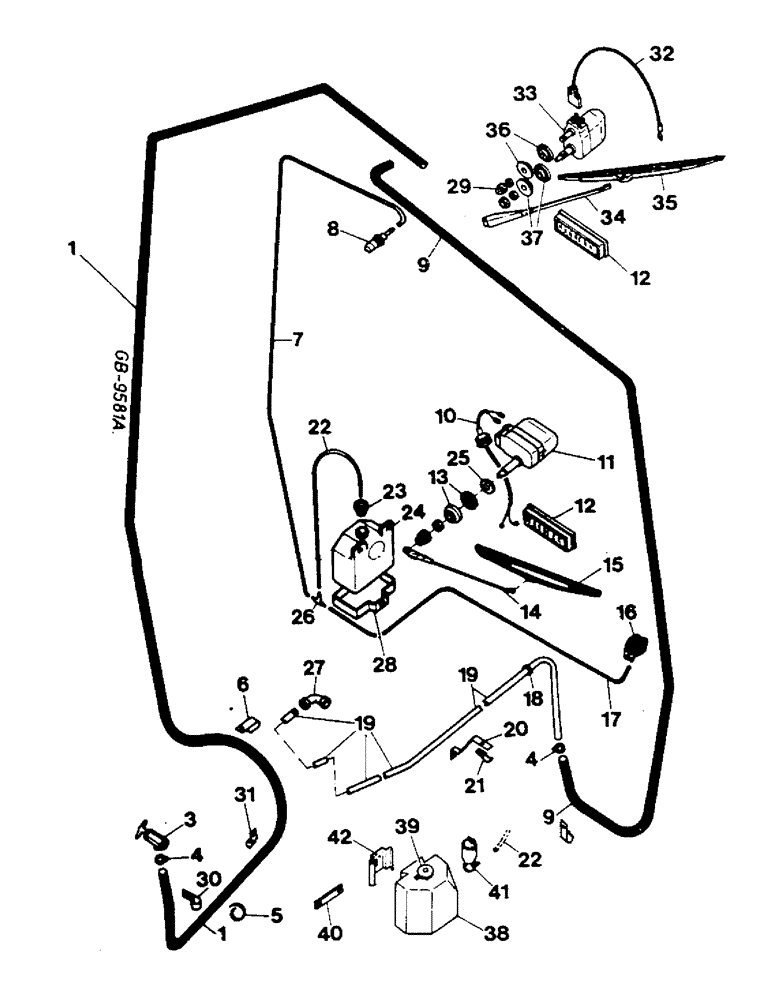

Запчасти Case IH 844S (13-55) - CAB ACCESSORIES (05) - SUPERSTRUCTURE

1

3225971R1

HOSE

WATER INLET

1шт.

2

3223611R1

CLAMP

1шт.

3

898799H1

VALVE

WATER

1шт.

4

3143364R1

CLAMP,19mm - 23mm

2шт.

5

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP CABLE - AS REQUIRED

1шт.

6

760109R1

CLIP

CLAMP

1шт.

7

3223756R1

STRIP, METERS

HOSE, VALVE TO NOZZLE

1шт.

7

3223756R1

STRIP, METERS

HOSE, PUMP TO NOZZLE - FOR SCANDINAVIA -

1шт.

8

3221577R1

NOZZLE CAP

1шт.

9

3221602R1

HOSE

WATER RETURN

1шт.

10

3221555R1

CABLE

WIPER MOTOR

1шт.

11

3221606R1

WIPER MOTOR

MOTOR, WIPER

1шт.

11

3225478R1

LINING

MOTOR, WIPER - FOR SCANDINAVIA -

1шт.

905288R1

WASHER,Int Tooth, M10

2шт.

3225251R1

NUT

2шт.

12

BOX, FUSE, - SEE ELECTRICAL INSTRUMENTS

1шт.

13

3221554R1

WASHER

THRUST

2шт.

14

3221553R1

ARM

WIPER

1шт.

15

3221552R1

WIPER BLADE

BLADE, WIPER

1шт.

16

3221595R1

PUMP

1шт.

931672R1

SCREW,M5 x 25mm, Cl 4.8

BOLT, M5 X 25 MM

1шт.

931858R1

SCREW,M5 x 0.8 x 35mm, Cl 5.8

BOLT, M5 X 35 MM

1шт.

905267R1

NUT,M5 x .8, Cl 8

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

2шт.

17

3221597R1

HOSE

SPARE PART VALVE TO PUMP

1шт.

18

3223612R1

GROMMET

1шт.

19

3223590R1

TUBE

WATER RETURN

1шт.

19

3233342R1

TUBE

SPARE PART WATER RETURN - USED WITH 690171C1 - 743/745S

1шт.

19

3233343R1

TUBE

WATER RETURN USED WITH 690171C1 - 844S

1шт.

20

3233107R1

BRACKET

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

1шт.

21

3223106R1

CLAMP

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

832-10406

NUT,M6 x 1, Cl 8

1шт.

934948R1

WASHER,M6

1шт.

22

3221596R1

HOSE

SPARE PART VALVE TO RESERVOIR

1шт.

23

3223101R1

COVER

1шт.

24

3221593R1

RESERVOIR

1шт.

25

3225156R1

GROMMET

1шт.

26

3221594R1

TEE

1шт.

27

897556H1

ELBOW

1шт.

28

3221530R1

HOLDER

1шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3221578R1

BELLEVILLE WASHER

8 MM

1шт.

43362

NUT,M8 x 1.25, Cl 10

1шт.

934673R1

WASHER,M8.4 x 25 x 2

8.4 X 17 X 1.6 MM

1шт.

29

3221592R1

CAP

12MM

1шт.

30

3224359R1

CLAMP

1шт.

31

3224358R1

CLAMP

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

1шт.

934067R1

LOCK WASHER,M16

1шт.

32

3232780R1

CABLE, WIPER MOTOR - FOR CABS W/TILTABLE WINDSCREEN -

1шт.

33

3232764R1

MOTOR, ELECTRIC

WIPER - FOR CABS W/TILTING WINDSCREEN

1шт.

832-10406

NUT,M6 x 1, Cl 8

1шт.

NUT, M8

1шт.

NUT, M12

1шт.

WASHER, TOOTH 12 MM

1шт.

WASHER

1шт.

34

3232766R1

WIPER ARM

ARM, WIPER - FOR CABS W/TILTING WINDSCREEN -

1шт.

35

3232765R1

WIPER BLADE

BLADE, WIPER - FOR CABS W/TILTING WINDSCREEN -

1шт.

36

3232767R1

WASHER

THRUST - FOR CABS W/TILTING WINDSCREEN -

2шт.

37

3232768R1

WASHER

THRUST - FOR CABS W/TILTING WINDSCREEN -

2шт.

38

3227041R1

RESERVOIR

CONTAINER, WINDSCREEN WASHER UNIT - FOR SCANDINAVIA -

1шт.

38

3227222R91

RESERVOIR

CONTAINER, - WITH 39, 41, 42 - FOR SCANDINAVIA -

1шт.

39

3227043R1

PLUG

CAP, - FOR SCANDINAVIA -

1шт.

40

3401099R1

SUPPORT

SPARE PART - FOR SCANDINAVIA -

1шт.

3229125R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

832-10406

NUT,M6 x 1, Cl 8

1шт.

934948R1

WASHER,M6

2шт.

41

3227223R1

PUMP

- FOR SCANDINAVIA -

1шт.

42

3227039R1

SUPPORT

BRACKET, - FOR SCANDINAVIA -

1шт.

934872R1

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

3223419R1

HOSE

WASHER, LOCK 5 MM

2шт.

905425R1

NUT

M5

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

5 MM

2шт.
