Запчасти Case IH 844 (2B01) - TRANSMISSION, FRONT AXLE DRIVE (-XXX) (04) - Drive Train

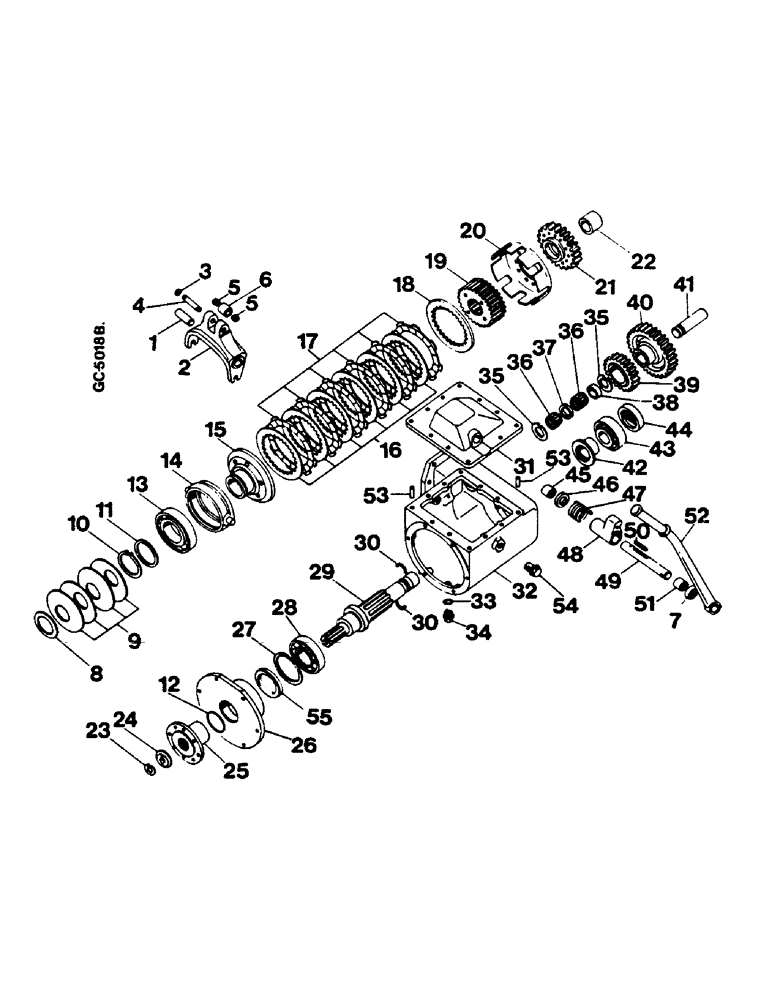

Схема запчастей Case IH 844 - (2B01) - TRANSMISSION, FRONT AXLE DRIVE (-XXX) (04) - Drive Train
19
52
46
55
10
23
40
32
25
37
12
18
38
53
30
54
29
26
16
31
6
30
3
21
44
34
13
9
28
2
24
51
14
36
41
33
1
11
49
50
20
8
5
36
27
35
17
42
43
53
7
22
45
48
15
4
35
47
39
5

Артикул

Название

Примечание

Количество

1

3147163R91

GEARBOX ASSY

TRANSMISSION front, axle drive, Includes: 1 - 55, 644

1шт.

1

3147165R91

DRIVE

SPARE PART TRANSMISSION front, axle, Includes: 1 - 55, 744/844/844S

1шт.

1

3131562R1

PIN

pivot

2шт.

2

3131556R1

FORK

shifter, with bushings

1шт.

3

933073R1

SNAP RING,M12, Ext

CIRCLIP

2шт.

4

3131561R1

PIN

1шт.

5

3131560R1

BEARING, NEEDLE

2шт.

6

3131559R1

ROLLER

BUSHING

1шт.

7

3131571R1

SEALING RING

oil

1шт.

8

3140487R1

SHIM

2.0 mm

1шт.

8

3140486R1

SHIM

2.5 mm

1шт.

8

3140485R1

SHIM

3.0 mm

1шт.

8

3140484R1

SHIM

3.5 mm

1шт.

8

3140483R1

SHIM

4.0 mm

1шт.

8

3140482R1

SHIM

4.5 mm

1шт.

8

3140481R1

SHIM

5.0 mm

1шт.

9

3226043R1

SET OF WASHERS

SPRING belleville, (set of four), 3131516R1

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING belleville, (set of four), 3146738R1

4шт.

9

NSS

NOT SOLD SEPARAT

SPRING belleville, (set of four), 3146739R1

4шт.

9

NSS

NOT SOLD SEPARAT

SPRING belleville, (set of four), 3146740R1

4шт.

10

800-1165

SNAP RING,M65, Ext

1шт.

11

3131519R2

WASHER

WASHER

1шт.

12

3140636R1

O-RING,2.5mm Thk x 38mm ID

1шт.

13

3131518R2

BEARING,65mm ID x 120mm OD x 23mm W

ball

1шт.

14

3131520R1

RING

release

1шт.

15

3131517R2

HUB

1шт.

16

3131522R1

CLUTCH PLATE,117mm ID x 160mm OD x 2mm Thk

inner

6шт.

17

3146741R1

DISC

outer

6шт.

18

1390 290732

DISC

PLATE pressure

1шт.

19

3131521R1

CARRIER

HUB disk

1шт.

20

3145959R1

GEAR

spur, with disk housing, 33 teeth, Includes: 20 and 21, 644

1шт.

21

3131527R1

GEAR

spur, with disk housing, 34 teeth, Includes: 20 and 21, 744/844/844S

1шт.

22

3131526R1

SPACER

BUSHING

1шт.

23

933789R1

WASHER,Ext Tab, M13 ID x 30 OD x 1.2 Thk

1шт.

24

3131515R1

WASHER

pressure

1шт.

25

3131535R91

CONNECTOR, ELEC

CONNECTOR FLANGE coupling, with bolts and nuts

1шт.

931202R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3223425R1

LOCK NUT

M8

8шт.

32-512

COTTER PIN,5/64" x 3/4"

cotter, 3 x 20 mm (-xxx)

8шт.

26

3147270R1

COUPLING, BREAK AWAY

SPARE PART COVER front

1шт.

931205R1

SCREW,M10 x 25mm, Cl 10.9

6шт.

27

3147269R1

WASHER

SHIM, 3.5 mm (.138")

1шт.

27

3147268R1

WASHER

SHIM, 4.0 mm (.158")

1шт.

27

3147267R1

RING

SHIM, 4.3 mm (.171")

1шт.

28

317705C92

BEARING, CONE

1шт.

28

317706C2

BEARING, CUP,88.92mm OD x 19.1mm W

CUP

1шт.

29

3147266R1

SHAFT

SPARE PART drive

1шт.

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

932660R1

PIN, GROOVED

PIN, GROOVE 5 x 12 mm

1шт.

30

3131539R1

SET

RING lock, (2-piece)

1шт.

31

3131572R1

COVER

shifter

1шт.

193152A1

BOLT

M10 x 20 mm

2шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

7шт.

32

3147265R1

CASE

HOUSING

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

932287R1

LOCK PIN,M3 x 28, Slotted

1шт.

932148R1

LOCK PIN,M5 x 28, Slotted

1шт.

33

933608R1

SEALING RING,M26 x 31 x 2

1шт.

34

3131574R1

PLUG

1шт.

35

3131554R1

PLATE, LOCKING

WASHER thrust

2шт.

36

3147273R91

NEEDLE BEARING

needle

2шт.

37

3147277R2

RING

spacer

1шт.

38

3147278R2

RING

spacer

1шт.

39

3147272R1

PINION

GEARS drive, set of 28/40 teeth, Includes: 39 and 40, 644

1шт.

40

3147271R1

PINION

GEARS drive, set of 27/40 teeth, Includes: 39 and 40, 744/844/844S

1шт.

41

3131555R1

SHAFT

SHAFT gear, driving

1шт.

42

3131540R1

BUSHING

spacer

1шт.

43

3131513R91

ROLLER BEARING

CONE

1шт.

43

90-2674T1

CUP

bearing

1шт.

44

3131512R1

COVER

1шт.

45

3131568R1

BEARING, NEEDLE

1шт.

46

3131570R1

SPACER

SPARE PART RING stop

1шт.

932662R1

LOCK PIN,3mm OD x 32mm L, Slotted

1шт.

47

3131565R1

SPRING

1шт.

48

3217434R1

CAM

shifter

1шт.

49

3140429R1

SHAFT

shifter

1шт.

50

932664R1

KEY,M6 x 4 x 36, Par

1шт.

51

1390 290810

SLEEVE

BEARING needle

1шт.

52

3145966R1

LEVER

1шт.

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

1шт.

838-5836

LOCK PIN,M8 x 36, Slotted

1шт.

53

3140583R1

PIN

dowel

2шт.

54

1390 290715

SCREW

PLUG

2шт.

55

3131549R1

SEALING RING

oil

1шт.

Выбрано товаров: 84
