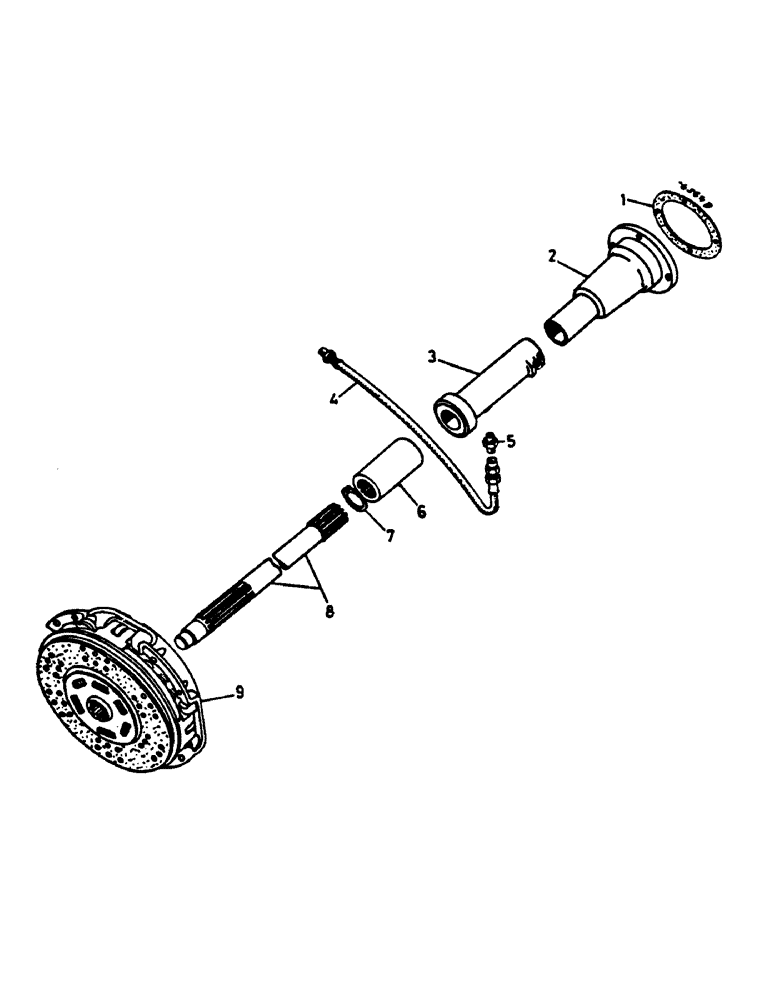

Запчасти Case IH 844 (1D15) - SINGLE CLUTCH 844/844S (04) - Drive Train

1

3134518R1

GASKET,0.5mm Thk

1шт.

2

3145776R92

COLUMN JACKET

PIPE guide

1шт.

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

4шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

4шт.

3

3145779R91

SUPPORT

SLEEVE release

1шт.

4

3137676R1

HOSE,6.00 mm ID x 370.00 mm

Lubricating

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

5

3146395R1

UNION

1шт.

6

3131184R1

SPLINED COUPLING

1шт.

7

933029R1

SNAP RING,M35, Ext

CIRCLIP

2шт.

8

3145773R1

SHAFT

clutch

1шт.

9

NSS

NOT SOLD SEPARAT

CLUTCH single, see Figure: 1D17

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

492-11031

LOCK WASHER,5/16"

8шт.
