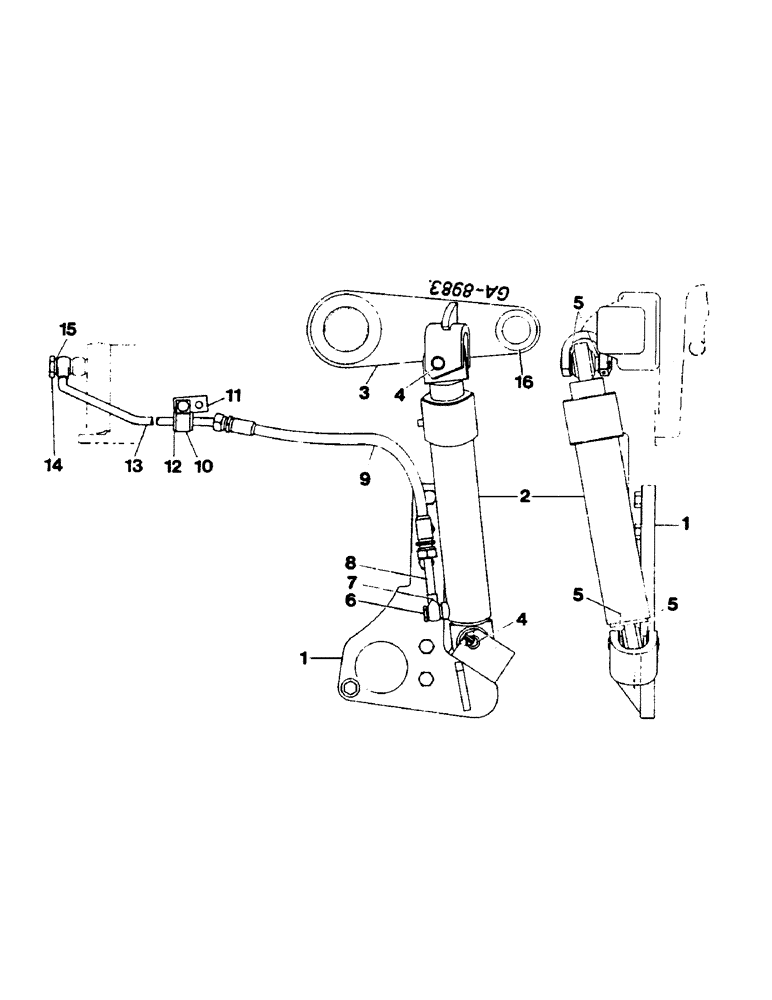

Запчасти Case IH 844 (2I07) - QUICK COUPLING, SELF SEALING COUPLING (07) - HYDRAULICS

1

3145922R1

TUBE

for control valve, quick coupling

1шт.

1

3145924R1

TUBE

for control valve, quick coupling

1шт.

2

3145923R1

TUBE

for control valve, quick coupling

1шт.

Additional used for double acting valves

1шт.

2

3145925R1

TUBE

for control valve, quick coupling

1шт.

Additional used for double acting valves

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

4

930259R1

BANJO BOLT,M18 x 1 x 42mm

hollow

1шт.

5

3225748R1

HYD CONNECTOR,M18 x 1.5 x M22 x 1.5

1шт.

6

3132075R2

CLAMP

quick coupling

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Quick coupling

1шт.

492-11031

LOCK WASHER,5/16"

Quick coupling

1шт.

425-105

NUT,5/16"-18, G5

Quick coupling

1шт.

7

3145918R1

HOSE

quick coupling

1шт.

8

3058147R91

COUPLING, BREAK AWAY

quick connecting, quick coupling, version with cab 2000

1шт.

9

3059127R1

UNION

quick coupling, version with cab 2000

1шт.

10

3059128R1

CAP

quick coupling, version with cab 2000

1шт.

11

3134739R1

HOLDER

break-away coupling, quick coupling

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Quick coupling

1шт.

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Quick coupling

1шт.

933335R1

LOCK WASHER,M10

lock, 3/8", quick coupling

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

Quick coupling

1шт.

12

3142206R1

SPACER, quick coupling

1шт.

13

3145920R91

SUPPORT

LH, quick coupling

1шт.

13

3145921R91

SUPPORT

RH, quick coupling

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Quick coupling

2шт.

14

95-81084

WASHER,0.41" ID x 0.88" OD x 0.12" Thk

quick coupling, version with cab 2000

1шт.

15

3147604R92

SHROUD

LH

1шт.

15

3147605R92

SHROUD

RH

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

16

786929R2

BRACKET

HOLDER, self sealing coupling, version with cab 2000

1шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

self sealing coupling, version with cab 2000

1шт.

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Self sealing coupling, version with cab 2000

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Self sealing coupling, Version with cab 2000

1шт.

492-11038

LOCK WASHER,3/8"

Self sealing coupling, Version with cab 2000

1шт.

425-106

NUT,3/8"-16, Cl 5

Self sealing coupling, Version with cab 2000

1шт.

17

3134962R1

PLUG

CAP, self sealing coupling

1шт.

18

3141597R91

COUPLING

self sealing, with cap, Order: 3141598R91, self sealing coupling, version with cab 2000

1шт.

19

3145487R2

TUBE

for control valve. self sealing coupling

1шт.

19

3148477R2

TUBE

for control valve, self sealing coupling

1шт.

20

3148478R2

TUBE

for control valve, self sealing coupling

1шт.

Additional used for double acting valves

1шт.

20

3148479R2

TUBE

for control valve, self sealing coupling

1шт.

Additional used for double acting valves

1шт.

21

3221740R1

TUBE

for control valve, version with cab 2000

1шт.

21

3221742R2

TUBE

for control valve, version with cab 2000

1шт.

22

3221741R1

TUBE

for control valve, version with cab 2000

1шт.

Additional used for double acting valves

1шт.

22

3221743R2

TUBE

for control valve, version with cab 2000

1шт.

Additional used for double acting valves

1шт.

23

3139467R1

HOLDER

quick coupling

1шт.

24

3223618R92

SUPPORT

HOLDER, version with cab 2000

1шт.

25

3221744R1

HOLDER

version with cab 2000

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Version with cab 2000

2шт.

26

20285H

WASHER

version with cab 2000

1шт.

27

3404086R1

O-RING

quick coupling, version with cab 2000

1шт.

28

3138442R1

RING

back-up, quick coupling, version with cab 2000

1шт.
