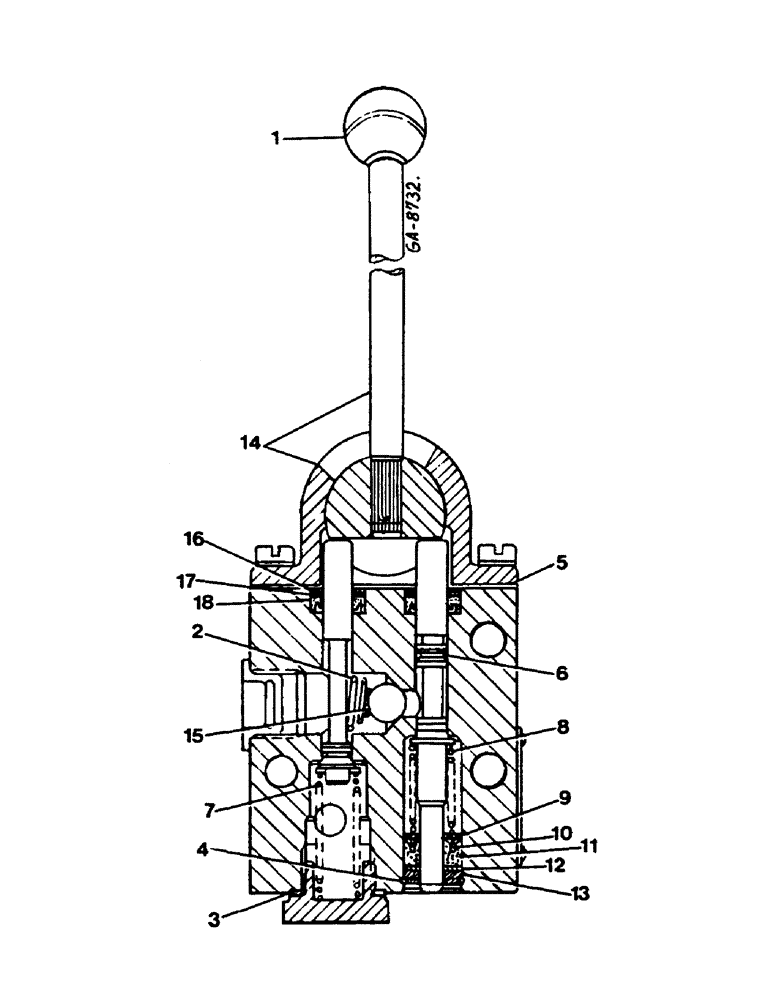

Запчасти Case IH 844 (2H22) - SINGLE ACTING CONTROL VALVE (07) - HYDRAULICS

3221094R92

VALVE

control, for units with cab, "Timmerman", Includes Ref: 1 - 18

1шт.

3221737R91

VALVE

control, for units with cab, 2000, Includes Ref: 1 - 18

1шт.

R3054388R95

VALVE control, Includes Ref: 1 - 18

1шт.

1

3142351R1

BALL KNOB,32 MM x M10

BALL lever

1шт.

2

3055818R1

SPRING

1шт.

3

NSS

NOT SOLD SEPARAT

RING packing, 718957R1

1шт.

4

NSS

NOT SOLD SEPARAT

RING snap, 3055814R1

1шт.

5

3142365R1

DISC

SHIM, 0.2 mm

1шт.

5

3142366R1

SHIM

0.3 mm

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL oil, 3058805R1

1шт.

7

3055806R1

SPRING

1шт.

8

3142356R1

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, 3142357R1

1шт.

10

NSS

NOT SOLD SEPARAT

RING back-up, 3142359R1

1шт.

11

NSS

NOT SOLD SEPARAT

RING groove, 3142358R1

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER, 3142360R1

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, 3142361R1

1шт.

14

3225760R1

LEVER ASSY.

BEARING shifter head, for valve control, 3054388R95

1шт.

14

3225768R1

HEAD ASSY.

BEARING shifter, for valve control, 3221737R91

1шт.

14

3225029R1

LEVER ASSY.

BEARING shifter head, for valve control, 3221094R92

1шт.

3079011R1

SCREW

BOLT, M6 x 15 mm

2шт.

892-11006

LOCK WASHER,M6

2шт.

15

NSS

NOT SOLD SEPARAT

BALL steel, 933157R1

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER, 3142363R1

2шт.

17

NSS

NOT SOLD SEPARAT

WASHER, 3142364R1

2шт.

18

NSS

NOT SOLD SEPARAT

RING groove, 3142362R1

2шт.

3225647R91

SEAL KIT

repair, with: 3, 4, 6, 9 - 13 and 15 - 18

1шт.
