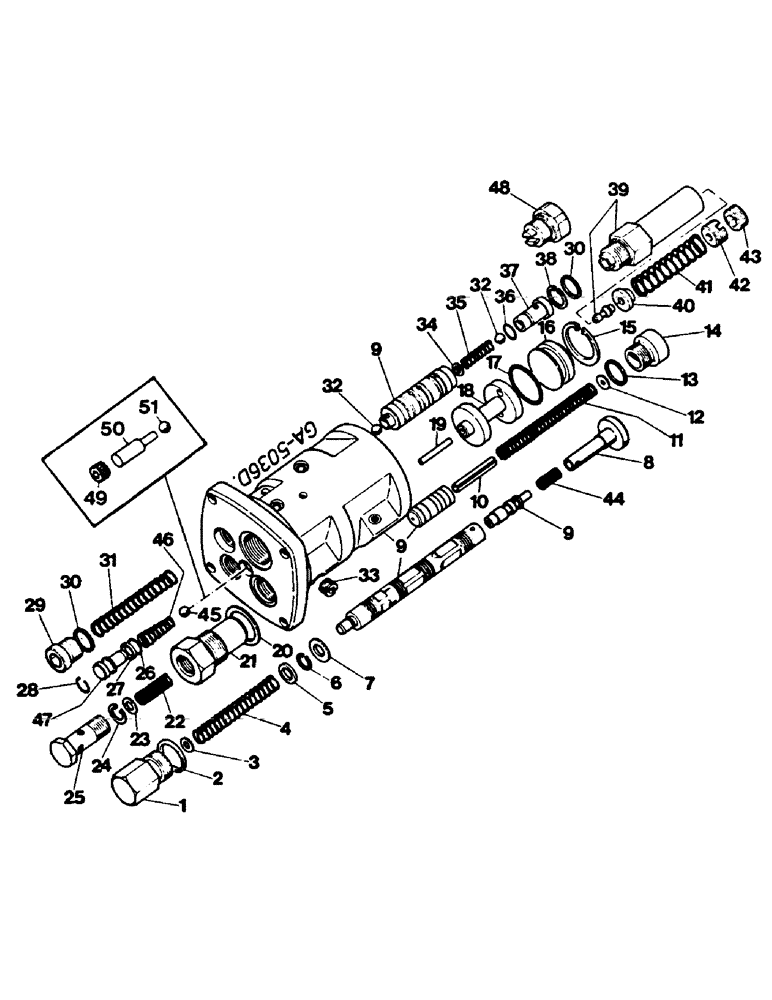

Запчасти Case IH 844 (2H16) - DRAFT CONTROL VALVE (-XXX) (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
3145178R92
VALVE, CONTROL
with cut-out valve
1шт.
932625R1
LOCK PIN,M3 x 8, Slotted
roll, 3 x 28mm
1шт.
3225058R91
PACKAGE
KIT repair, with: 10-12, 14, 29, 31 and 33
1шт.
3225059R91
PACKAGE, REPAIR
KIT, with: 15, 16, 18 and 19
1шт.
3225060R91
PACKAGE
Kit repair, with 15, 16, 18, 19, oversize
1шт.
3225061R91
PACKAGE
Kit repair, with: 1, 3 - 8 and 44
1шт.
3225062R91
PACKAGE
Kit repair, with: 26 - 28 and 45 - 47
1шт.
3225063R91
VALVE, CHECK
Kit repair, with: 21 - 24
1шт.
3225064R91
PACKAGE, REPAIR
gaskets, with: 2, 13, 17, 20, 25, 30 and 36
1шт.
1
NSS
NOT SOLD SEPARAT
PLUG, 3145186R1
1шт.
2
NSS
NOT SOLD SEPARAT
RING packing, 717183R1
1шт.
3
NSS
NOT SOLD SEPARAT
SHIM spool, 3053113R1
1шт.
4
NSS
NOT SOLD SEPARAT
SPRING spool return, 3145185R1
1шт.
5
NSS
NOT SOLD SEPARAT
WASHER, 3054834R1
1шт.
6
NSS
NOT SOLD SEPARAT
RING snap, 3054835R1
1шт.
7
NSS
NOT SOLD SEPARAT
WASHER, 3053110R2
1шт.
8
NSS
NOT SOLD SEPARAT
TAPPET spool, 3145183R1
1шт.
932349R1
LOCK PIN,M2.5 x 14, Slotted
4.25 x 14 mm
1шт.
9
NSS
NOT SOLD SEPARAT
Order : 3145178R92
1шт.
10
NSS
NOT SOLD SEPARAT
PIN roll, 932 724 R1
1шт.
11
NSS
NOT SOLD SEPARAT
SPRING flow divider, 3217300R1
1шт.
12
NSS
NOT SOLD SEPARAT
SHIM flow, divider spring, 3053131R1
1шт.
13
NSS
NOT SOLD SEPARAT
RING packing, 933222R1
1шт.
14
NSS
NOT SOLD SEPARAT
PLUG, 3056341R2
1шт.
15
NSS
NOT SOLD SEPARAT
CIRCLIP, 933327R1
1шт.
16
NSS
NOT SOLD SEPARAT
RETAINER O-ring, 3053118R4
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING, 3051823R1
1шт.
18
NSS
NOT SOLD SEPARAT
PISTON control bloc valve, 3053115R2
1шт.
19
NSS
NOT SOLD SEPARAT
PIN thrust, 3053120R1
1шт.
20
NSS
NOT SOLD SEPARAT
RING packing, on bloc valve, 933608R1
1шт.
21
NSS
NOT SOLD SEPARAT
BLOCK valve, with valve cone, 3145187R91
1шт.
22
NSS
NOT SOLD SEPARAT
SPRING block valve, 3147495R1
1шт.
23
3053125R1
SHIM
block valve spring, 15 x 7.2 x 1 mm
1шт.
23
NSS
NOT SOLD SEPARAT
SHIM block, valve spring, 16.1 x 7.1 x 1 mm, 3148794R1
1шт.
24
NSS
NOT SOLD SEPARAT
CIRCLIP, 3053126R1
1шт.
25
NSS
NOT SOLD SEPARAT
SCREW hollow, 930259R1
1шт.
26
NSS
NOT SOLD SEPARAT
O-RING, 3147862R1
1шт.
27
NSS
NOT SOLD SEPARAT
RING back-up, 3147861R1
1шт.
28
NSS
NOT SOLD SEPARAT
CIRCLIP, 934265R1
1шт.
29
NSS
NOT SOLD SEPARAT
PLUG, 3056332R2
1шт.
30
NSS
NOT SOLD SEPARAT
RING packing, 718957R1
2шт.
31
NSS
NOT SOLD SEPARAT
SPRING safety valve, 3147493R1
1шт.
32
211-1006
BALL,3/16" Dia
Valve
2шт.
33
NSS
NOT SOLD SEPARAT
NOZZLE damping, 3216758R91
1шт.
34
3136924R1
WASHER
0.1 mm
1шт.
34
933982R1
WAVE WASHER,M4.3 ID x 9 OD x .5 Thk
SHIM, 0.5 mm
1шт.
34
3136921R1
WASHER
0.2 mm
1шт.
35
3056327R1
SPRING
non return valve
1шт.
36
NSS
NOT SOLD SEPARAT
O-RING, 3142195R2
1шт.
37
3136920R2
BODY
valve
1шт.
38
933403R1
SNAP RING,M12, Int
CIRCLIP
1шт.
39
3134338R92
VALVE, PRESSURE RELI
EF with: 40 - 43
1шт.
40
3136928R1
BUSHING
guide, if so equipped
1шт.
41
3142175R1
SPRING
if so equipped
1шт.
42
3136929R1
PLUG
if so equipped
1шт.
43
3059465R1
NUT
SPARE PART lock, if so equipped
1шт.
44
NSS
NOT SOLD SEPARAT
SPRING, 3147496R1
1шт.
45
NSS
NOT SOLD SEPARAT
BALL non-return valve, 1/2", 17016R1
1шт.
46
NSS
NOT SOLD SEPARAT
SPRING, 3147859R1
1шт.
47
NSS
NOT SOLD SEPARAT
PIN thrust, 3147860R1
1шт.
48
3220798R1
PLUG
1шт.
49
905416R1
PLUG,Hex Soc, M12 x 1.5, Pipe
up to August 1974
1шт.
50
3056342R1
SPACER
PIN retainer, valve ball, up to August 1974
1шт.
51
211-1010
BALL,5/16" OD
non-return valve
1шт.
Выбрано товаров: 64
