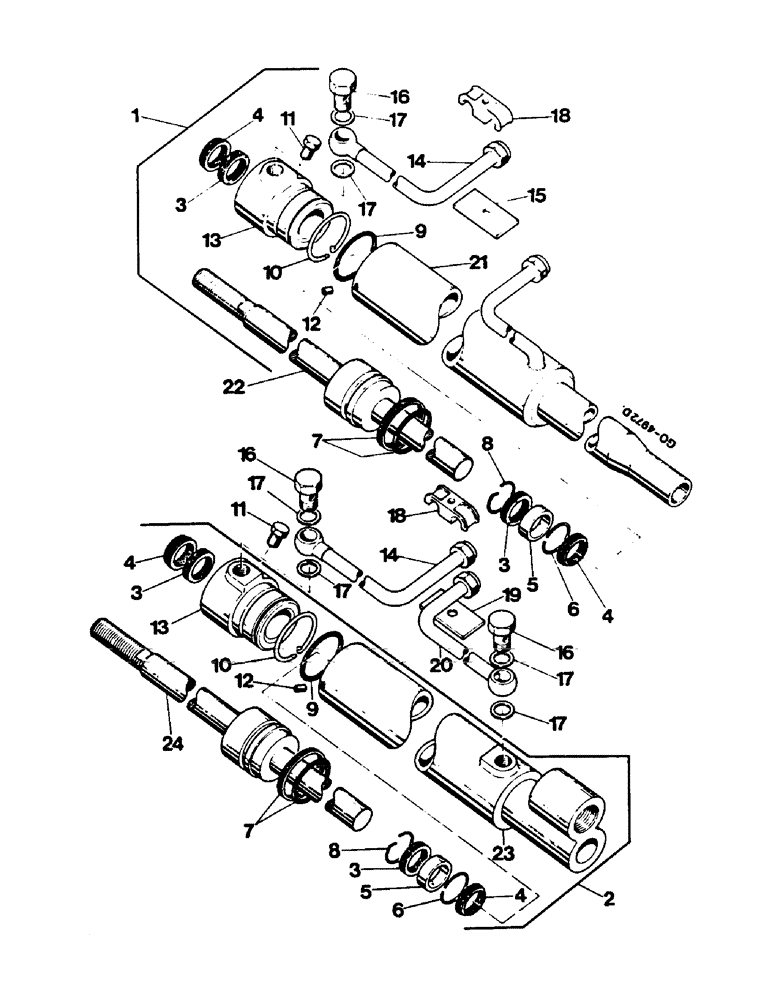

Запчасти Case IH 844 (2G11) - STEERING CYLINDER (07) - HYDRAULICS

1

3146356R95

CYLINDER

steering, see also Ref. No. 21, 644 (-010067) C

1шт.

1

3224285R92

CYLINDER

steering, see also Ref. No. 21, 644 (010068-014221) C

1шт.

2

3146036R94

CYLINDER ASSY.

steering, for four-wheel drive tractors, 644 (004172-) C

1шт.

2

3217591R92

KIT

CYLINDER steering, repair, with: 2, 11, 14 and 16 - 20, 644 (-004171) C

1шт.

3

3147621R1

SEALING RING,25mm ID x 33mm OD x 6.4mm Thk

2шт.

4

3147622R1

SNAP RING

WIPER

2шт.

5

3147619R1

THRUST RING

1шт.

6

3147620R1

RING, SNAP

RING SNAP

1шт.

7

3216626R2

RING, SET

sliding

1шт.

7

3147623R1

GASKET KIT

RING, sliding 644 (-002929) C 744 (-002664) C 844 (-003990) C

1шт.

8

3217744R1

RING, SNAP

RING SNAP 644 (004172-) C

1шт.

8

3147620R1

RING, SNAP

RING SNAP 644 (-004171) C

1шт.

9

3138018R1

O-RING,3mm Thk x 49mm ID

1шт.

10

3147624R1

WIRE

WIRE

1шт.

11

FOR444613

PLUG

1шт.

12

934724R1

SET SCREW,Hex Skt, M5 x 6mm, Dog Pt

1шт.

13

3217435R1

END

cylinder

1шт.

14

3217439R1

TUBE

1шт.

15

3220709R1

PLATE

SPARE PART

1шт.

16

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

hollow

1шт.

17

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

18

3217247R1

CLAMP

1шт.

931236R1

BOLT,Hex, M6 x 1 x 35, Cl 5.6

1шт.

825-1406

NUT,M6, Cl 8

1шт.

495-11028

WASHER,1/4", SAE

1шт.

19

3058623R1

PLATE

1шт.

20

3217438R1

TUBE

1шт.

21

3220708R1

CYLINDER

M22, 644 (-010067) C, 744 (-008669) C, 844 (-005275) C, 844S (-010500) C

1шт.

21

3224339R2

HYD CYL SLEEVE

M24, 644 (010068-014221 C, 744 (008670-013698) C, 844 (005276-006275) C, 844S (010501-016724) C

1шт.

22

3147616R1

PISTON ROD

1шт.

23

742967C91

STEERING CYLINDER

1шт.

24

3147627R1

ROD ASSY.

1шт.
