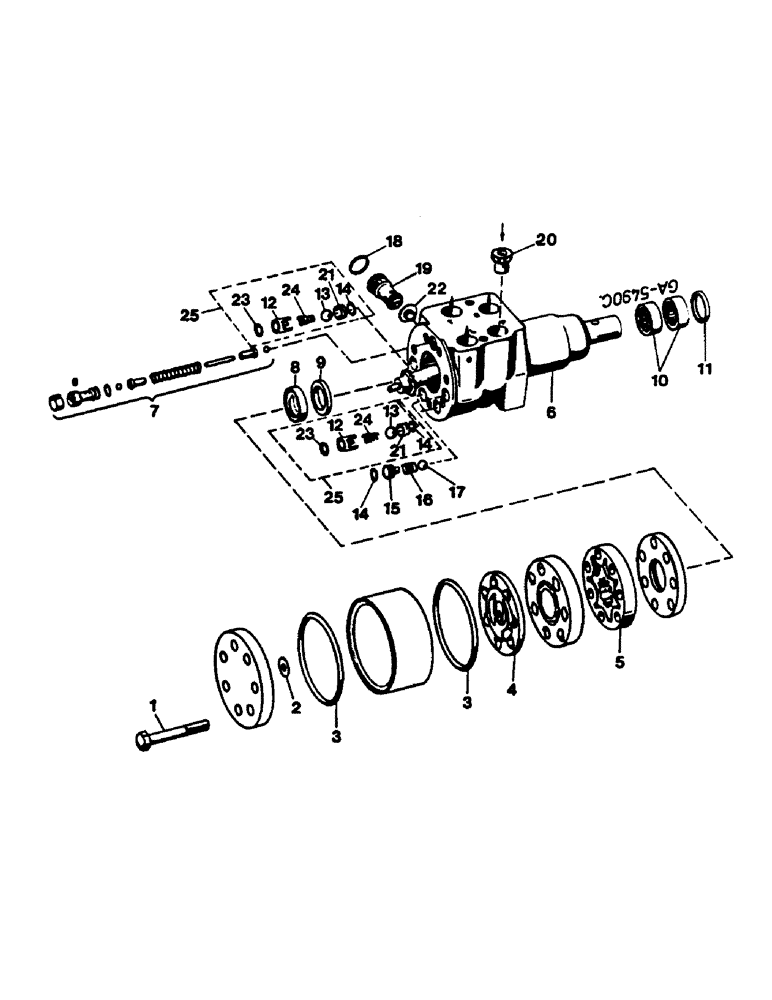

Запчасти Case IH 844 (2F023) - STEERING CONTROL VALVE (07) - HYDRAULICS

3147931R96

VALVE, CONTROL

steering, 644 (-014 221) C, 744 (-013 698) C, 844 (-006 275) C, 844S (-016 724) C

1шт.

3230108R91

VALVE, CONTROL

steering, 644 (014 222-) C, 744 (013 699-) C, 844 (006 276-) C, 844S (016 725-) C

1шт.

1

3216069R1

BOLT

BOLT

7шт.

1

3230112R1

BOLT

SPARE PART

1шт.

2

3216070R1

WASHER

1шт.

3

3225273R1

O-RING

2шт.

4

3216072R1

PLATE

cam

1шт.

5

3216073R1

ROTOR

SPARE PART set

1шт.

5

3230111R1

ROTOR

set

1шт.

6

3216074R1

HOUSING

with spools, Includes: 6 - 11

1шт.

6

3221625R1

HOUSING

with spools, Includes: 6 - 11

1шт.

7

3216081R1

VALVE

safety

1шт.

8

1287569C1

SEAL

oil

1шт.

9

1287569C1

SEAL

WASHER back-up

1шт.

10

3139062R91

BEARING, NEEDLE,Needle, 22.21mm ID x 31.88mm OD x 9.53mm W

2шт.

11

3216084R1

SEAL

oil

1шт.

12

3224366R1

PLATE, LOCKING

GUIDE ball, 644 (009169-) C, 744 (007494-) C, 844 (005101-) C, 844S (009327-) C

2шт.

12

3224370R91

VALVE

2шт.

13

934018R1

BALL

644 (009169-) C, 744 (007494-) C, 844 (005101-) C, 844S (009327-) C

2шт.

13

3220801R1

SPARE PART 644 (-009168) C, 744 (-007493) C, 844 (-005100) C, 844S (-009326) C

2шт.

14

3216075R3

O-RING

1шт.

15

3216076R1

PLUG

2шт.

16

3216419R1

SPRING

2шт.

17

934017R1

BALL,8mm OD, Gr 28

2шт.

18

1965945C1

O-RING,2mm Thk x 15mm ID

1шт.

19

3216078R3

VALVE, PRESSURE RELI

EF

1шт.

20

1287570C1

VALVE

non return

1шт.

21

3224367R1

SEAT, VALVE

SPARE PART ball, 644 (009169-) C, 744 (007494-) C, 844 (005101-) C, 844S (009327-) C

2шт.

21

3220802R1

SEAT/SLOT

SPARE PART ball, 644 (-009168) C, 744 (-007493) C, 844 (-005100) C, 844S (-009326) C

2шт.

22

3217266R1

FILTER

1шт.

23

3224368R1

WASHER

2шт.

24

3224369R1

SPRING

2шт.

25

3225861R91

HYDRAULIC VALVE

with: 12, 13, 23 and 24

1шт.

For steering control valve ZF (59090-)

1шт.

25

3224370R91

VALVE

with: 12-14, 21, 23 and 24

1шт.

For steering control valve ZF (-59089)

1шт.
