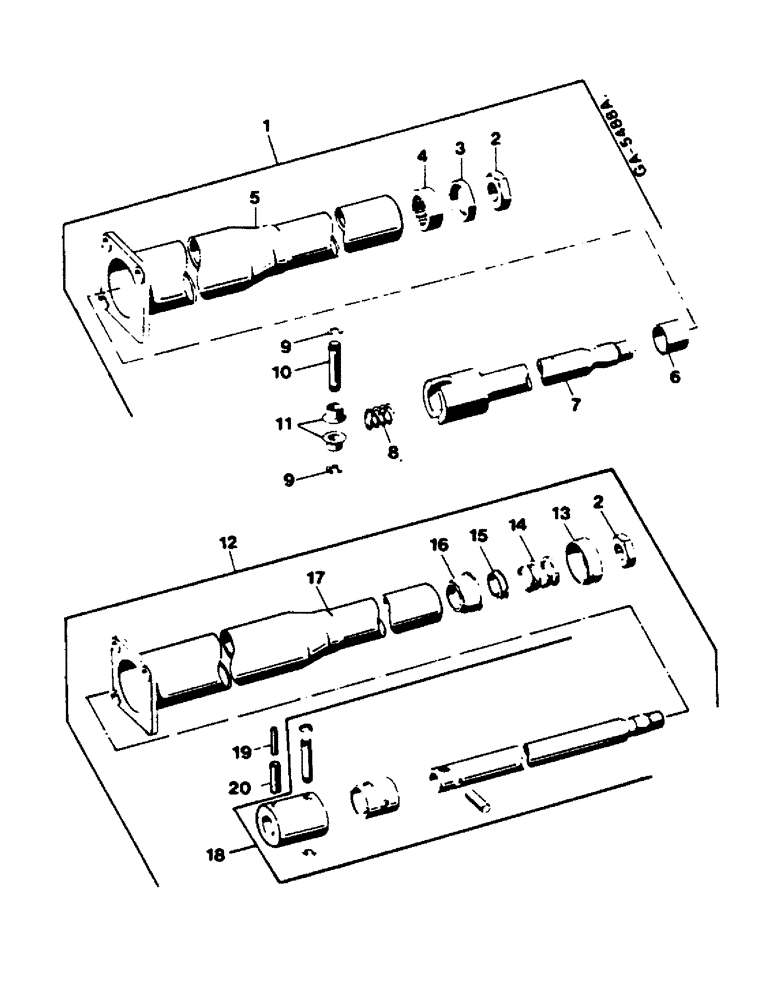

Запчасти Case IH 844 (2F021) - STEERING COLUMN FOR POWER STEERING (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

COLUMN steering, Order: 3147932R94, 644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

2

934021R1

JAM NUT,Thin, M16 x 1.5, Cl 05

1шт.

3

3217893R1

RING

SEAL, 644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

4

3217894R91

NEEDLE BEARING

needle, 644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

5

3217895R1

TUBE

COLUMN jacket, 644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

864-12020

HEX SOC SCREW,M12 x 20mm, Cl 8.8

BOLT, M10 x 35 mm

3шт.

6

3217890R1

BUSHING

644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

7

3217891R1

SPINDLE

steering, 644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

8

3217889R1

SPRING

644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

9

934030R1

CIRCLIP,M7

WASHER-C, 644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

2шт.

10

3217263R1

PIN

644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

1шт.

11

3217262R1

BUSHING

guide, 644 (xxx-007920) C, 744 (xxx-006522) C, 844 (xxx-007728) C, 844S (xxx-007051) C

2шт.

12

NSS

NOT SOLD SEPARAT

COLUMN steering, Order: 3147932R94, (-xxx)

1шт.

13

3131952R1

SEALING RING

(-xxx)

1шт.

14

715854R1

SPRING

(-xxx)

1шт.

15

715853R1

RING

centering, (-xxx)

1шт.

16

3131949R1

BUSHING

(-xxx)

1шт.

17

3216424R1

PIPE

COLUMN jacket, (-xxx)

1шт.

864-12020

HEX SOC SCREW,M12 x 20mm, Cl 8.8

BOLT, M10 x 35 mm

3шт.

18

3216423R1

SPINDLE

steering, (-xxx)

1шт.

19

838-5840

LOCK PIN,M8 x 40, Slotted

(-xxx)

1шт.

20

932236R1

LOCK PIN,M5 x 40, Slotted

(-xxx)

1шт.
