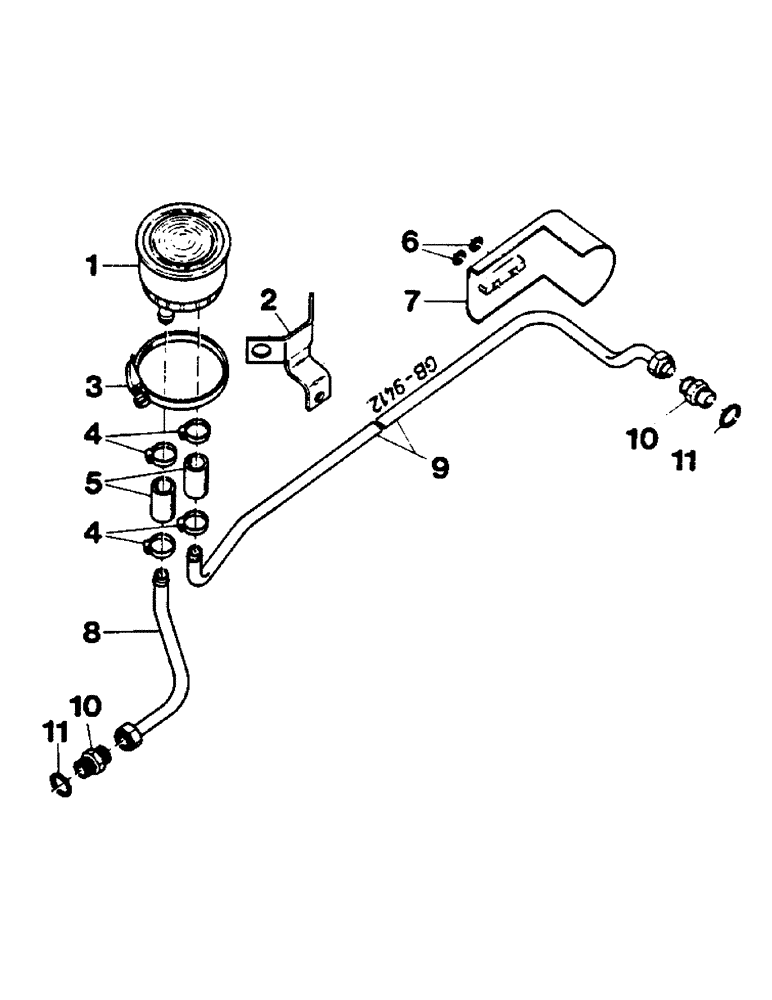

Запчасти Case IH 844 (2F018) - COMPENSATING RSRVR FOR STEERING CYL, 644 (014222-)C, 744 (013699-)C, 844 (006276-)C, 844S (016725-)C (07) - HYDRAULICS

1

3220700R3

RESERVOIR

1шт.

2

3230105R1

SUPPORT

SPARE PART 644

1шт.

2

3232199R1

SUPPORT

744/844/844S

1шт.

3

755021R92

CLAMP

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

4шт.

5

3215094R1

HYDRAULIC HOSE,13.00 mm ID x 70.00 mm, SAE 30R2

2шт.

6

446179

WASHER,#12

2шт.

7

3059448R1

CAP

1шт.

353669X1

SCREW

BOLT, 1/4" x 25 mm

2шт.

8

3230102R3

LINE

TUBE return, pump-reservoir

1шт.

9

3230104R2

PIPE

TUBE return, reservoir-steering control valve, for 644/744

1шт.

9

3230103R2

PIPE

TUBE return, reservoir-steering control valve, for 844/844S

1шт.

10

3225749R1

HYD CONNECTOR,M18 x 1.5 x M20 x 1.5

2шт.

11

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.
