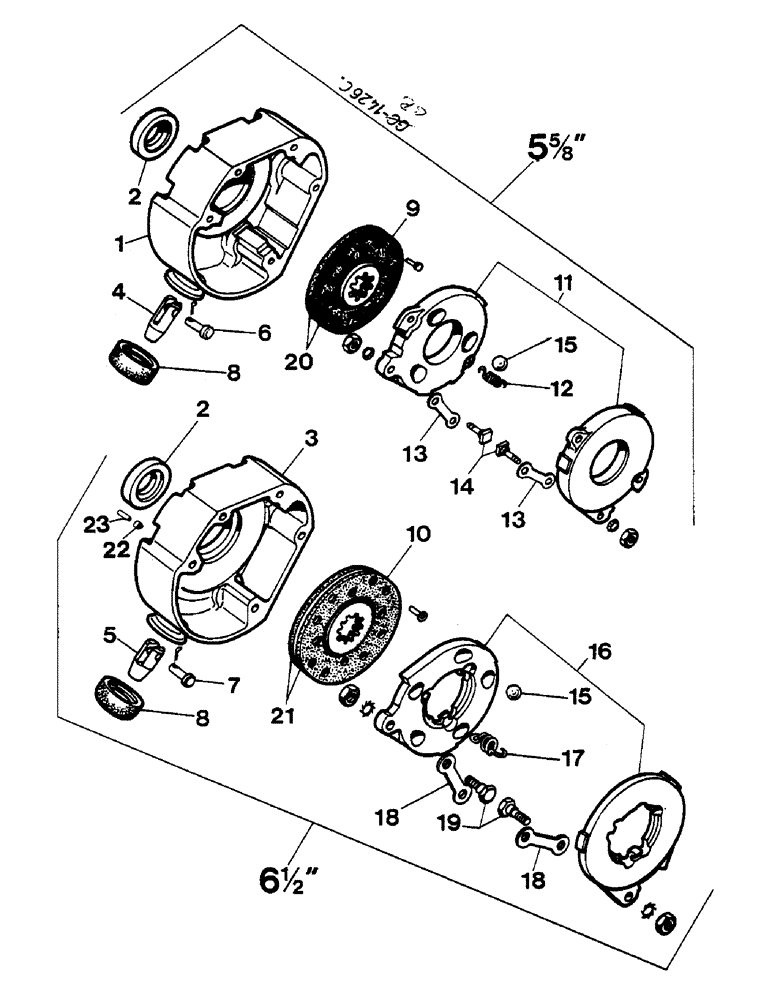

Запчасти Case IH 833 (04-02) - FOOT BRAKE (5.1) - BRAKES

1

3131438R1

HOUSING

BRAKE, LH

1шт.

1

3131437R11

HOUSING

BRAKE, RH, CPTE WITH SEAL

1шт.

190256

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

138301

SPARE PART Hex Soc Hd, 1/2"-13 x 4"

4шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

179812

GEAR

1шт.

103323

LOCK WASHER,1/2"

10шт.

Brake 5 - 5/8"

1шт.

2

761840R91

SEAL

DUST

1шт.

3

786467R1

HOUSING

BRAKE, LH

1шт.

3

3223924R1

HOUSING

BRAKE, LH, FOR VERSION WITH BEARING ROLLER 3223928R1

1шт.

3

786465R11

HOUSING

BRAKE, RH, CPTE WITH SEAL

1шт.

3

3224571R91

HOUSING

BRAKE, RH, CPTE WITH SEAL, FOR VERSION WITH BEARING ROLLER 3223928R1

1шт.

190256

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

8шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

10шт.

Brake 6 - 1/2"

1шт.

4

3057493R1

YOKE

UNIVERSAL JOINT YOKE CLEVIS ADJUSTING

2шт.

Brake 5 - 5/8"

1шт.

5

786463R1

FORK

CLEVIS ADJUSTING

2шт.

Brake 6 - 1/2"

1шт.

6

103496

CLEVIS PIN,3/8" x 1.060"

2шт.

103373

COTTER PIN,3/32" x 3/4"

2шт.

Brake 5 - 5/8"

1шт.

7

787067R1

PIN

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

Brake 6 - 1/2"

1шт.

8

786902R1

BOOT

CAP RUBBER

2шт.

9

3058680R92

DISK BRAKE, CPTE WITH LINING

4шт.

9

3134666R92

LINING

DISK BRAKE, CPTE WITH LINING, OPTIONAL

4шт.

Brake 5 - 5/8"

1шт.

10

3058855991

DISK BRAKE, CPTE WITH LINING

4шт.

10

3134664R91

LINING

DISK BRAKE, CPTE WITH LINING, OPTIONAL

4шт.

Brake 6 - 1/2"

1шт.

11

786459R92

PLATE, THRUST

BRAKE, DOUBLE DISK

2шт.

Brake 5 - 5/8"

1шт.

12

787296R1

SPRING

EXTENSION

4шт.

Brake 5 - 5/8"

1шт.

13

717058R1

LINK

BRAKE

4шт.

Brake 5 - 5/8"

1шт.

14

711355R1

BOLT

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

Brake 5 - 5/8"

1шт.

15

17028R1

BALL,7/8" Dia

6шт.

Brake 5 - 5/8"

1шт.

15

17028R1

BALL,7/8" Dia

10шт.

Brake 6 - 1/2"

1шт.

16

786460R21

BRAKE DISC

DISC, BRAKE DOUBLE

2шт.

Brake 6 - 1/2"

1шт.

16

3223926R91

BRAKE DISC

DISC, BRAKE DOUBLE, FOR VERSION WITH BEARING ROLLER 3223928R1

2шт.

Brake 6 - 1/2"

1шт.

17

786776R2

SPRING

EXTENSION

6шт.

Brake 6 - 1/2"

1шт.

18

786462R1

LINK

BRAKE

4шт.

Brake 6 - 1/2"

1шт.

19

786461R1

BOLT,Hex, 3/8" x 31mm

BOLT

4шт.

114494

NUT,Jam, 3/8"-24, G5

4шт.

933435R1

LOCK WASHER

TOOTH LOCK 3/8"

4шт.

Brake 6 - 1/2"

1шт.

20

3134497R92

PACKAGE, 2 LININGS WITH RIVETS

1шт.

20

3134672R92

DISK HARROW

PACKAGE, 2 LININGS WITH RIVETS, OPTIONAL

1шт.

356073R1

RIVET

5 X 12 MM - GRIND LININGS TO SPECIFICATION, SEE SERVICE MANUAL

12шт.

Brake 5 - 5/8"

1шт.

21

3134496R91

BRAKE LINING

LINING, BRAKE PACKAGE, 2 LININGS WITH RIVETS

1шт.

21

3134671R91

BRAKE LINE

PACKAGE, 2 LININGS WITH RIVETS, OPTIONAL

1шт.

933093R1

RIVET,Flat Hd, M5 x 12

5 X 12 MM - GRIND LININGS TO SPECIFICATION, SEE SERVICE MANUAL

12шт.

Brake 6 - 1/2"

1шт.

22

3223928R1

ROLLER

BEARING, FOR VERSION WITH BEARING ROLLER 3223928R1

8шт.

Brake 6 - 1/2"

1шт.

23

3223929R1

BUSHING

GUIDE, FOR VERSION WITH BEARING ROLLER 3223928R1

4шт.

Brake 6 - 1/2"

1шт.
