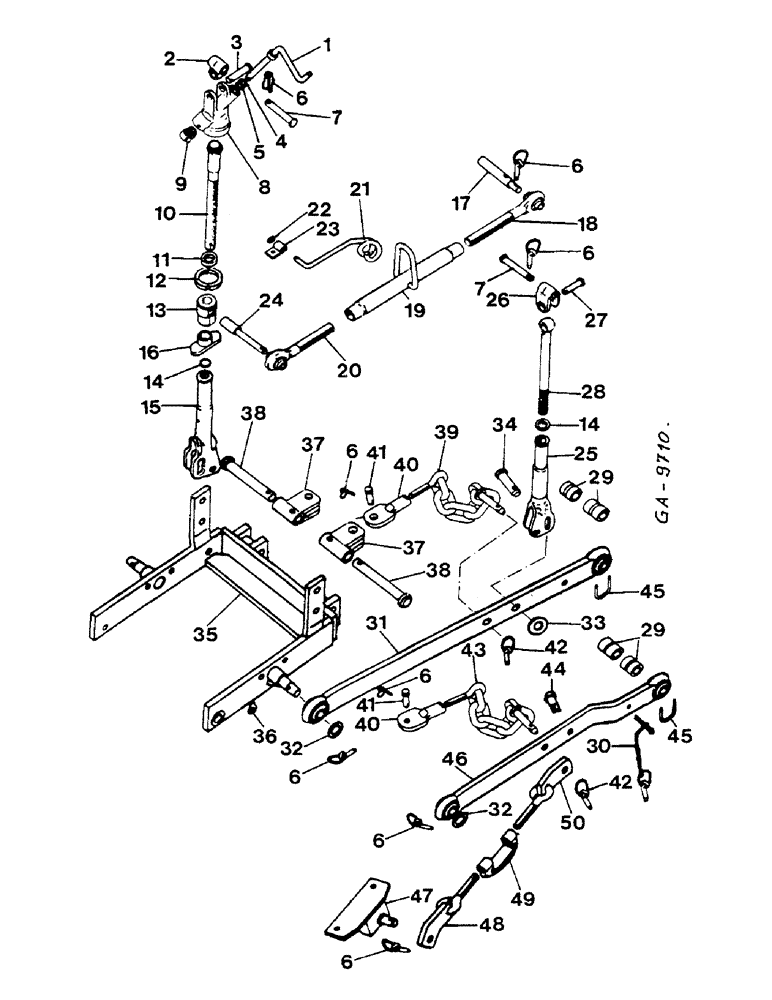

Запчасти Case IH 833 (09-13) - THREE-POINT-LINKAGE - E-VERSION (12) - FRAME

3216173R91

ARM ASSY.

ROD, ADJUSTABLE, LIFTING, RH CPTE., CONSISTS OF: ITEMS 1 - 15

1шт.

1

3054581R11

CRANK

LEVELLING

1шт.

2

3137294R11

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, LIFTING ROD, RH

1шт.

3

Q1176

HEADED PIN,5/8" x 2 3/16"

HEADED

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

(5 x 30 mm)

1шт.

4

11002VA

WASHER

1шт.

5

N32983

WASHER

15 X 22 X 0.5 MM

1шт.

6

3057333R91

LINCH PIN,5mm OD

4.5 MM DIA.

1шт.

6

3057346R11

LINCH PIN

11 MM DIA.

1шт.

7

PG146

PIN

HEADED

2шт.

8

3050170R3

HOUSING

LEVELLING GEAR, ORDER ALSO, 3229744R1

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

FITTING, 433/533/633 (-XXX)

2шт.

3229744R1

LUBE NIPPLE

LUBE

2шт.

932148R1

LOCK PIN,M5 x 28, Slotted

1шт.

9

716859R1

GEAR

LEVELLING BOX

1шт.

10

716860R2

SET SCREW

SPINDLE, LEVELLING

1шт.

11

3059904R1

BUSHING,25mm ID x 42mm OD x 11mm L

PRESSURE

1шт.

12

718920R1

RING NUT

ANNULAR

1шт.

12

3131131R1

NUT

ANNULAR, OPTIONAL

1шт.

13

716861R2

HOUSING

GEAR BOTTOM

1шт.

14

711759R1

WASHER

FELT

2шт.

15

3050497R2

FORK

LEVELLING SPINDLE, ORDER ALSO, 3229744R1

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

FITTING, 433/533/633 (-XXX)

1шт.

3229744R1

LUBE NIPPLE

LUBE

1шт.

932741R1

LOCK PIN,M5 x 22, Slotted

1шт.

16

3229592R91

FLANGE

1шт.

17

3137658R11

PIN

UPPER LINK

1шт.

3134549R91

UPPER LINK

CPTE- CONSISTS OF: ITEMS 18 - 20

1шт.

18

700407R21

LINK

UPPER LH THREAD

1шт.

19

3057371R91

TURNBUCKLE

UPPER LINK

1шт.

20

3057373R91

UPPER LINK

RH THREAD

1шт.

218447

NUT

1-1/4"

1шт.

21

3058490R2

CLAMP

HOLDER, UPPER LINK

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

22

934065R1

WASHER,M10.5

1шт.

23

3057376R1

HINGE

UPPER LINK HOLDER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

24

3137660R1

PIN,25.4mm OD x 175mm L

UPPER LINK

1шт.

25

3142002R2

FORK,7/8" - 9 LH Thread

LIFTING ROD, LH, ORDER ALSO, 3229744R1

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

FITTING, 433/533/633 (-XXX)

1шт.

3229744R1

LUBE NIPPLE

LUBE

1шт.

26

711757R1

ADJUSTABLE CLEVIS

SWIVEL, LIFTING ROD, LH

1шт.

27

H2808

HEADED PIN,5/8" x 2"

HEADED

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

(5 x 30 mm)

1шт.

28

3142003R2

ROD,7/8" - 9, LH Thread

LIFTING, LH

1шт.

29

3057362R1

BUSHING

LINK LOWER, CAT I

2шт.

29

3057361R1

BUSHING,28.83mm ID x 43.13mm OD x 44.2mm L

LINK LOWER, CAT II

2шт.

30

3057364R94

PIN

CHAIN, WITH LINCH AND COTTER

2шт.

3059364R1

PIN

COTTER 7.7 X 63 MM

2шт.

31

3232131R1

LOWER LINK

2шт.

32

722107R1

WASHER

2шт.

33

933807R1

WASHER,M23 ID x 39 OD x 3 Thk

1шт.

34

3134910R2

PIN

HEADED

2шт.

35

3232123R1

SUPPORT

SPARE PART BASIC

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8" X 38 MM

8шт.

103325

LOCK WASHER,5/8"

4шт.

36

714258R1

WASHER,Tab, M17 ID x 36 OD x 1 Thk

SHEET

4шт.

37

3232125R1

HOLDER

FOR CHECK CHAIN

2шт.

38

3232124R1

PIN

2шт.

Q2933

LOCK PIN,M8 x 40, Slotted

2шт.

39

3216061R91

CHAIN (AG)

CHECK

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

40

3057348R3

TURNBUCKLE

LINK, CHECK CHAIN STRAIN

2шт.

41

3057350R3

PIN

HEADED

2шт.

42

3134126R11

LINCH PIN

2шт.

43

3232133R1

CHAIN (AG)

CHECK

2шт.

44

786765R2

BOLT

PIN

2шт.

219754

BACK-UP RING

4шт.

45

3057363R1

CLAMP

"U"

2шт.

46

3232135R1

LOWER LINK

2шт.

47

3232128R1

BRACKET

SPARE PART SIDE SUPPORT, LH

1шт.

47

3232129R1

BRACKET

SIDE SUPPORT, RH

1шт.

24874

BOLT, 5/8" X 45 MM

4шт.

103325

LOCK WASHER,5/8"

4шт.

48

3059504R11

SCREW

SCREW, TURN BUCKLE, WITH, LH THREAD

2шт.

49

3131093R1

TRUNNION

TURNBUCKLE

2шт.

50

3059506R11

LINK

SCREW, TURNBUCKLE, WITH LINK, RH THREAD

2шт.
