Запчасти Case IH 833 (09-04) - TRAILER HITCH - 3216218R92 (12) - FRAME

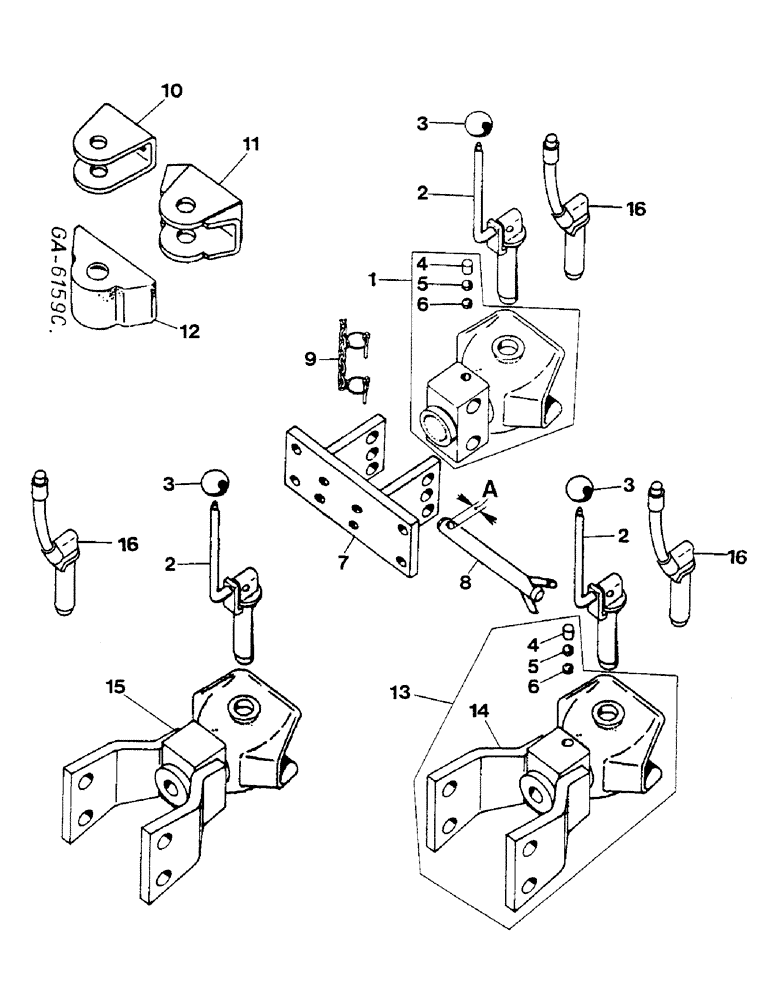

Схема запчастей Case IH 833 - (09-04) - TRAILER HITCH - 3216218R92 (12) - FRAME
7
16
3
4
2
2
12
8
1
16
6
16
4
3
14
13
2
5
15
3
11
5
10
6
9

Артикул

Название

Примечание

Количество

1

3216218R92

TRAILER HITCH

433/533/633 V/E, 733/833E

1шт.

1091153R1

PLATE

NAME

1шт.

932658R1

GROOVED PIN,Rd Hd, M3 x 5

GROOVE, 3 X 5 MM

1шт.

2

3146011R1

PIN

TRAILER HITCH CPTE., WITH: 3, 433/533/633/733 V/E

1шт.

2

3221987R91

LEVER

SPARE PART PIN, TRAILER HITCH CPTE., WITH: 3, 433/533/633/733 V/E

1шт.

2

3402650R91

HITCH PIN

TRAILER HITCH, 833 V/E

1шт.

3

3142306R1

BALL KNOB,40 MM x M12

BALL, WITH THREAD

1шт.

3

3230185R1

KNOB

BALL, WITHOUT THREAD, 433/533/633/733 V/E

1шт.

4

3147020R1

PIN

1шт.

930114R1

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

1шт.

933319R1

NUT

M14

1шт.

5

3147021R1

HITCH DAMPER

BUMPER

1шт.

6

3147022R1

BLOCK

1шт.

7

3148422R92

HOLDER

TRAILER HITCH

1шт.

3216230R1

BOLT

5/8" X 38 MM

4шт.

8

3148415R91

LARGE PIN

PIN, LARGE CROSS, V-VERSION, A - 12 MM DIA.

2шт.

8

3217839R91

PIN

SPARE PART CROSS, V-VERSION, A - 8 MM DIA.

2шт.

8

3148419R91

LARGE PIN

PIN, LARGE CROSS, E-VERSION, A - 12 MM DIA.

2шт.

8

3217881R92

PIN

CROSS, E-VERSION, A - 8 MM DIA.

2шт.

9

3216232R91

CHAIN (AG)

SPARE PART WITH LINCH PIN, 11 MM DIA.

1шт.

9

3217880R91

LARGE PIN

SPARE PART CHAIN, WITH LINCH, 7 MM DIA.

1шт.

934583R1

PIN,M5 x 20

COTTER, 5 X 20 MM

1шт.

934588R1

WASHER,M5.5

1шт.

10

3145839R1

ADJUSTABLE CLEVIS

DRAW, FRONT

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

2шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

2шт.

11

3145838R91

HITCH ASSY, TRAILER

CLEVIS, DRAW, FRONT

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

2шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

2шт.

12

3146710R1

CAP

PROTECTION, FOR DRAW CLEVIS

1шт.

13

3216226R91

YOKE

UNIVERSAL JOINT YOKE HITCH, TRAILER, 433/533/633 V - 733/833 V/E

1шт.

14

3216227R91

TRAILER HITCH

1шт.

930114R1

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

1шт.

933319R1

NUT

M14

1шт.

1091152R1

TYPE PLATE

NAME

1шт.

932658R1

GROOVED PIN,Rd Hd, M3 x 5

GROOVE, 3 X 5 MM

2шт.

15

3220829R91

HITCH

TRAILER, 433/533/633/833 E - - 733 V

1шт.

16

3402650R91

HITCH PIN

1шт.

Выбрано товаров: 38
