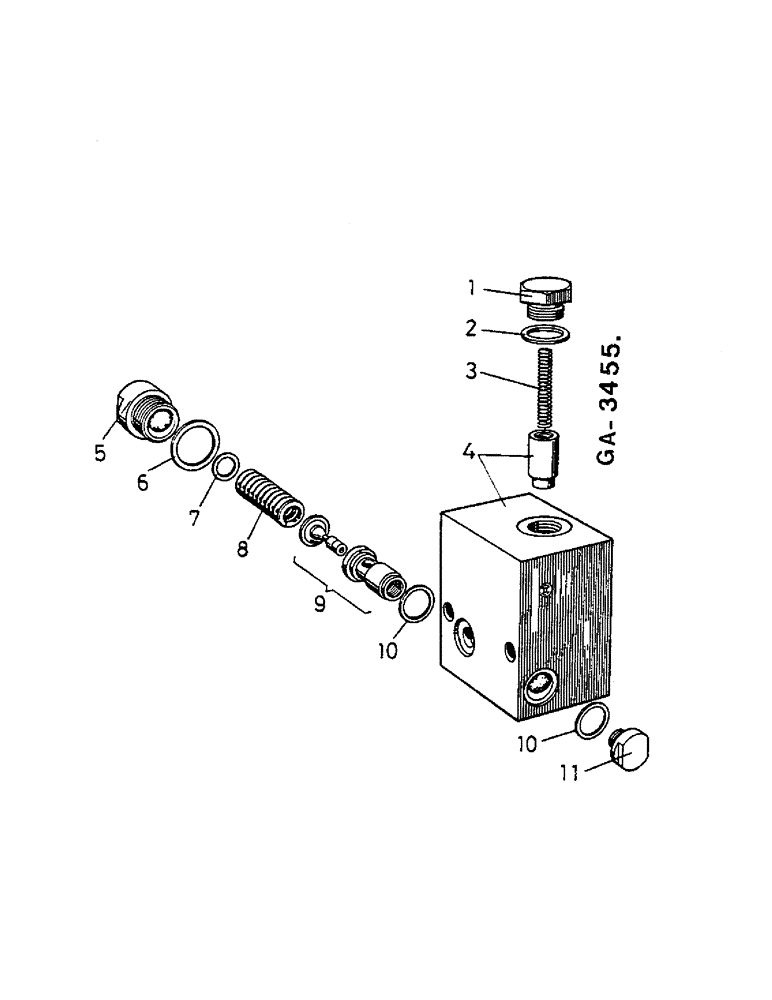

Запчасти Case IH 833 (10-62) - MOUNTING BLOCK (07) - HYDRAULICS

3134342R91

VALVE

BLOCK, MOUNTING CPTE. - CONSISTS OF ITEMS 1-11

1шт.

3225769R91

SEAL KIT

SET, SEAL CONSISTS OF ITEMS 2, 6, 10

1шт.

1

3055831R1

PLUG

SPARE PART

1шт.

2

933721R1

SEALING RING,M16 x 22 x 1.5

1шт.

3

3055827R1

SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

ORDER 3134342R91

1шт.

5

3055826R1

SPARE PART

1шт.

6

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

7

3055824R1

WASHER

SHIM, 0.3 MM

1шт.

7

3055825R1

WASHER

SHIM, 0.7 MM

1шт.

8

3055823R1

SPRING

1шт.

9

3055819R91

VALVE

SAFETY

1шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

11

3055820R1

PLUG

1шт.
