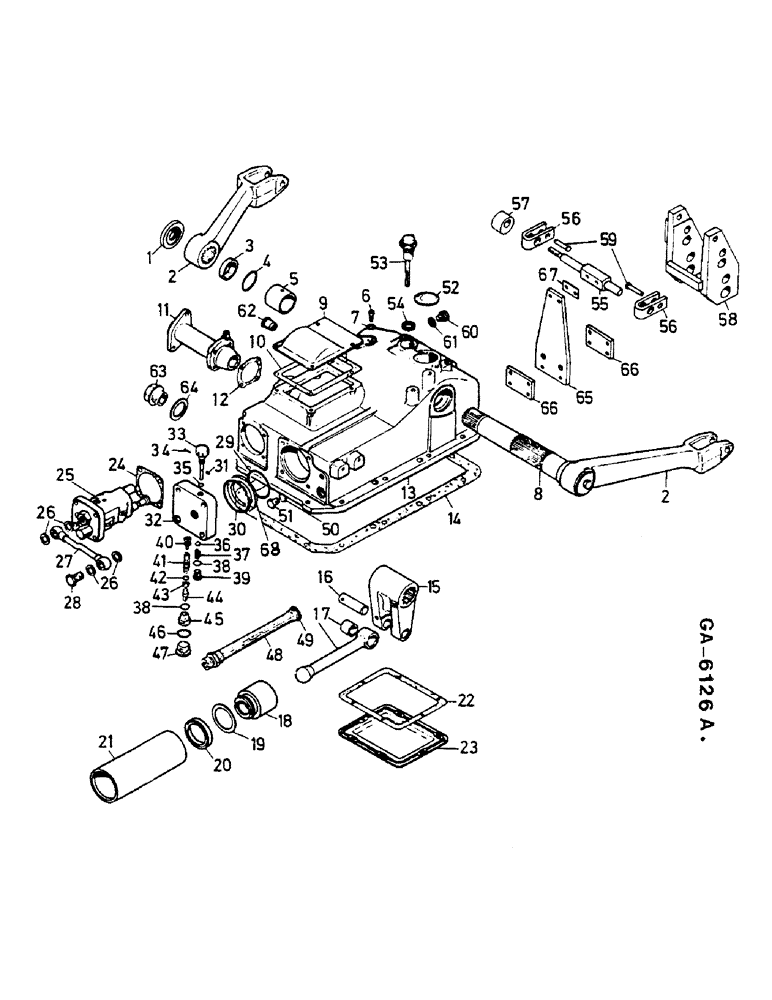

Запчасти Case IH 833 (10-23) - LIFT HOUSING (07) - HYDRAULICS

1

3216210R1

WASHER, THRUST

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

2

313167R1

ARM, ROCKER - V - VERSION

2шт.

2

3051041R2

ARM

ROCKER - E - VERSION

2шт.

3

3134565R1

RING,48.5mm ID x 54.5mm OD x 16mm Thk

SPACER

2шт.

4

3134564R2

O-RING

2шт.

5

3134715R4

BUSHING

ROCKSHAFT

2шт.

6

3148096R1

SCREW

SLOTTED

2шт.

7

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING, PACKING

4шт.

8

3148097R1

SHAFT

ROCK

1шт.

9

3051862R2

COVER

ADJUSTING

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

10

3051861R3

SEAL

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, CONTROL SHAFT, SEE CONTROL LINKAGE

1шт.

12

3053452R1

GASKET

1шт.

13

3146001R2

HOUSING

LIFT HYDRAULIC

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

9шт.

103321

LOCK WASHER,3/8"

433/533/633/733 (-XXX)

9шт.

13

3146001R2

HOUSING

LIFT HYDRAULIC

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

E version

9шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

V version

5шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

HARDENED 3/8", 433/533/633/733 (XXX-), 833

9шт.

14

711232R2

GASKET

1шт.

15

3134561R2

ARM

POWER

1шт.

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

1шт.

Q2932

LOCK PIN,M8 x 36, Slotted

1шт.

16

3225092R1

PIN,25mm OD x 79.5mm L

LIFT ARM, ORDER ALSO, 932238R1 AND 905287R1

1шт.

932238R1

LOCK PIN,M5 x 45, Slotted

1шт.

905287R1

LOCK PIN,M3 x 40, Slotted

1шт.

17

3134567R11

ROD

CONNECTING, BALL TYPE, W/BUSHING

1шт.

18

3401115R1

PISTON

433/533/633/733 (XXX-), 833

1шт.

18

3134566R1

PISTON

433/533/633/733 (-XXX)

1шт.

19

3051776R1

RING,60.2mm ID x 80mm OD x 2mm Thk

BACK-UP

1шт.

20

3051777R1

SEALING RING,60mm ID x 80mm OD x 12mm Thk

PISTON

1шт.

21

3148098R2

SLEEVE CYLINDER

TUBE

1шт.

22

3051863R3

GASKET

1шт.

23

3051864R2

COVER

433/533/633/733 (-XXX)

1шт.

23

3401116R1

COVER

433/533/633/733 (XXX-), 833

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

24

3053453R1

GASKET

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE, CONTROL - SEE CONTROL VALVES, OIL LINES, BREAK AWAY COUPLINGS (XXX-)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

26

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

4шт.

27

3052675R11

PIPE

CONNECTING

1шт.

28

930259R1

BANJO BOLT,M18 x 1 x 42mm

HOLLOW

2шт.

29

3051786R1

O-RING,3mm Thk x 74mm ID, 88 Duro

1шт.

30

3051787R1

O-RING,3mm Thk x 98mm ID, 70 Duro

1шт.

31

3052055R1

O-RING,2.4mm Thk x 7.3mm ID, 72 Duro

1шт.

3230982R91

COVER

CYLINDER CPTE. CONSISTS OF: ITEMS 32 - 47 (XXX-) 833

1шт.

3230982R91

COVER

CYLINDER CPTE. CONSISTS OF ITEMS 32 - 47 (XXX-), 833

1шт.

3248099R91

COVER, CYLINDER CPTE. CONSISTS OF ITEMS 32 - 47, (-X XX)

1шт.

32

3230983R1

COVER ASSY

CYLINDER (XXX-) - 833

1шт.

32

3131221R2

COVER

CYLINDER (-XXX)

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

711055R1

WASHER

4шт.

33

3148100R91

SPINDLE

1шт.

932662R1

LOCK PIN,3mm OD x 32mm L, Slotted

1шт.

34

3058347R1

PIN

PLASTIC

1шт.

35

3052813R1

O-RING,2.54mm Thk x 3.3mm ID, 70 Duro

1шт.

36

17013R1

BALL,13/32" Dia

VALVE

1шт.

37

3051783R1

SPRING

1шт.

38

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

39

3051784R1

PLUG

1шт.

40

3142326R1

GUIDE

SPRING

1шт.

41

3131218R1

SPRING

1шт.

42

3131215R1

WASHER

1шт.

43

3131216R1

WASHER

1шт.

44

3131213R1

VALVE

CONE

1шт.

45

3131214R1

SEAT, VALVE

1шт.

46

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

47

934025R1

PLUG,Hex Soc, M22 x 1.5

1шт.

48

NSS

NOT SOLD SEPARAT

STRAINER, - SEE HYDRAULIC PUMP, OIL LINES, PRESSURE OIL FILTER 433/533/633

1шт.

49

933608R1

SEALING RING,M26 x 31 x 2

2шт.

50

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

51

786892R1

PLUG

1шт.

52

3057293R1

PLUG

EXPANSION

1шт.

53

786883R91

GAUGE

OIL LEVEL WITH BREATHER FILTER

1шт.

54

933608R1

SEALING RING,M26 x 31 x 2

1шт.

55

3148359R1

PIN

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

56

3216039R1

BRACKET

2шт.

57

3148361R1

CAM

ECCENTRIC

1шт.

58

3148354R92

SUPPORT

LEVER, BELLCRANK

1шт.

59

787067R1

PIN

HEADED

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

60

934203R1

PLUG,Hex Hd, M24 x 1.5

M24

1шт.

61

933709R1

PACKING RING

1шт.

62

3058858R2

PLUG

1шт.

63

933223R1

PLUG,Hex, M18 x 1.5

1шт.

64

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

65

3148358R2

PLATE

SPRING, LEAF

1шт.

66

3148423R1

BAR

75 X 50 X 8 MM

1шт.

3148360R1

BAR

95 X 50 X 10 MM

1шт.

24619R1

BOLT

3/8" X 41 MM

4шт.

67

3216041R1

SHIM

1шт.

68

3230981R1

RING,Split, 75.4mm ID x 80mm OD x 1.5mm Thk

BACK-UP, 433/533/633/733 (XXX-), 833

1шт.
