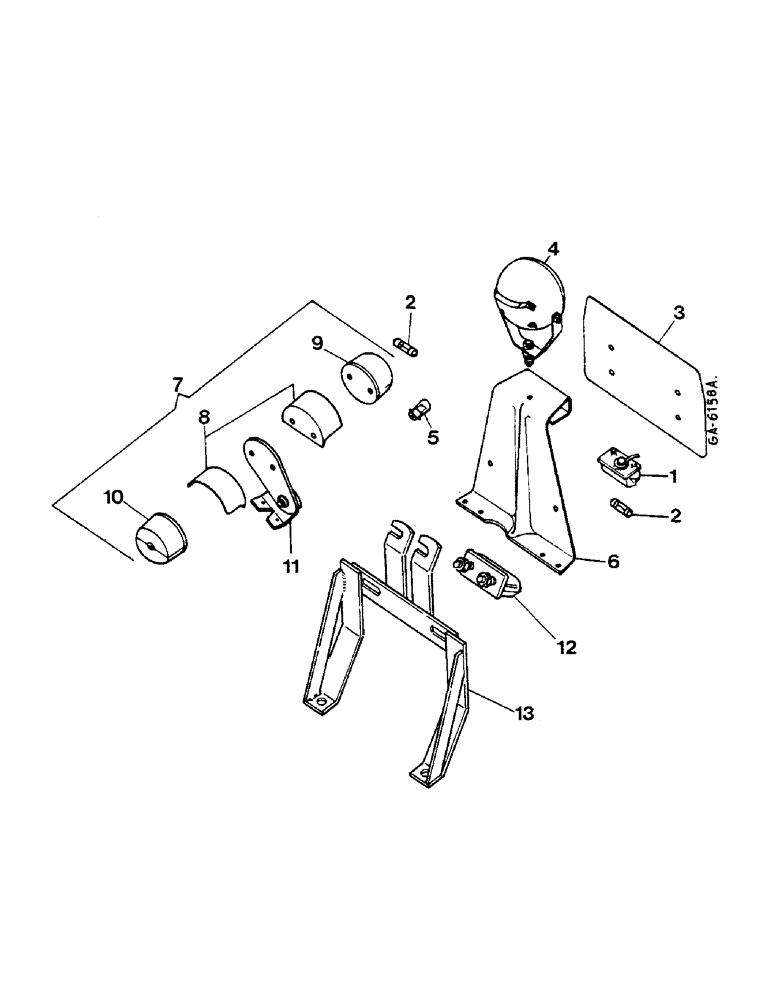

Запчасти Case IH 833 (08-33) - LIGHTS (06) - ELECTRICAL

1

3057689R91

INTERIOR LIGHT

NUMBER PLATE

1шт.

930959R1

SCREW,Pan Slotted, M4 x 30mm, Cl 4.8

2шт.

140047

LOCK WASHER

M14

2шт.

2

710196R1

BULB,C5W, 12V, 5W

1шт.

3

3058317R2

TYPE PLATE

HOLDER, NUMBER

1шт.

931111R1

SCREW,M5 x 0.8 x 12mm, Cl 4.8

BOLT, M5 X 12 MM

2шт.

933122R1

WASHER

M5

2шт.

933187R1

NUT,M5, Cl 8

WASHER, 5 MM

2шт.

4

NSS

NOT SOLD SEPARAT

LIGHT, SPOT, SEE SPOT LIGHT

1шт.

5

3131227R1

BULB,P25-1, 12V, 21W

Lamp

1шт.

6

3057683R1

HOLDER

BRACKET, NUMBER PLATE LIGHT

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

7

3146888R91

LAMP, TAIL

LIGHT, TAIL DIRECTION INDICATOR, TAIL AND POSITION, RH

1шт.

7

3146887R91

LAMP, TAIL

LIGHT, TAIL DIRECTIONAL INDICATOR, TAIL AND POSITION, LH

1шт.

931231R1

SCREW,Slotted Cheese, M5 x 0.8 x 16mm, Cl 4.8

BOLT, M5 X 15 MM

4шт.

933986R1

LOCK WASHER,M5

4шт.

933972R1

NUT

M5

4шт.

8

3146892R1

PROTECTOR

CAP

2шт.

9

3146893R1

LAMP, TAIL

LIGHT, TAIL FLASH

2шт.

10

3146894R1

LIGHT

FLASH AND POSITION

2шт.

11

3146896R91

SUPPORT

BRACKET, RH

1шт.

11

3146895R91

HOLDER

BRACKET, LH

1шт.

12

3053400R92

LIGHT, WARNING

NUNBER PLATE

1шт.

13

3223621R91

SUPPORT ASSY.

HOLDER, NUMBER PLATE

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.
