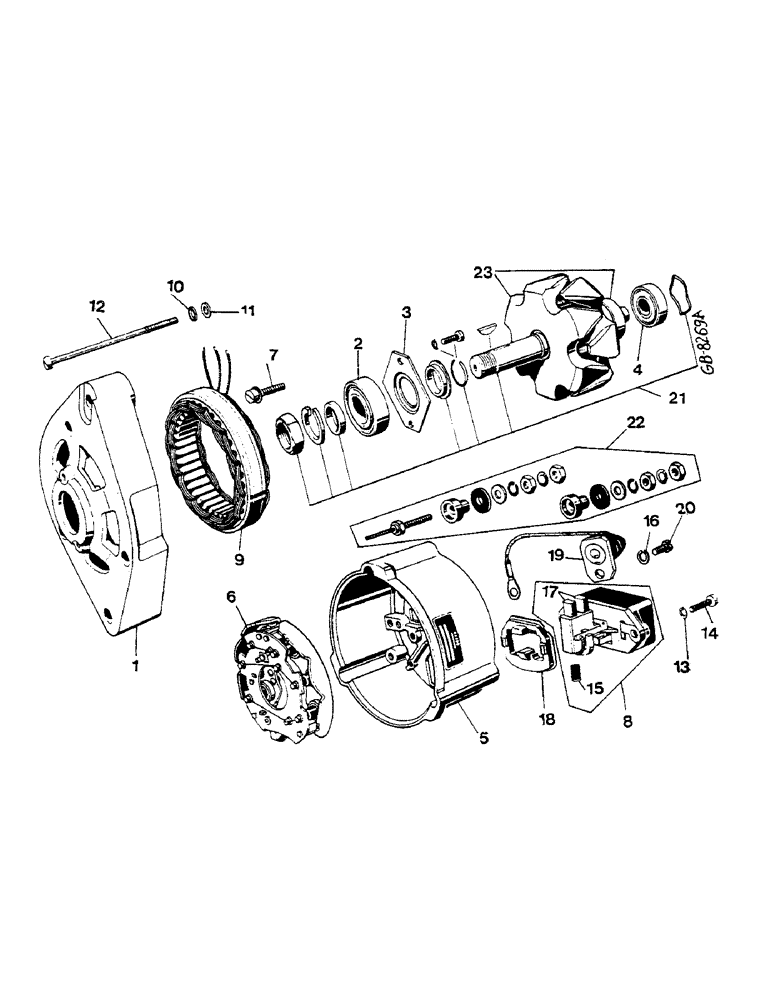

Запчасти Case IH 833 (08-12) - ALTERNATOR - 33 AMP - (06) - ELECTRICAL

3218577R91

ALTERNATOR

WITH REGULATOR

1шт.

87297228

REMAN-ALTERNATOR

Remanufactured ALTERNATOR - NA Only

1шт.

87297229

CORE-ALTERNATOR

Return Number, ALTERNATOR 12v 33A - NA Only

1шт.

1

3079034R1

COVER

1шт.

2

3078585R91

BEARING, BALL

1шт.

3

3078587R1

PLATE

1шт.

4

3079139R91

BEARING, BALL

1шт.

5

3079036R1

HOUSING

1шт.

6

3078957R92

PLATE

WITH DIODES

1шт.

7

3078588R91

BOLT

WITH LOCK WASHER

3шт.

8

3079123R91

REGULATOR

HOLDER, BRUSH

1шт.

9

3079121R1

STATOR

1шт.

10

933986R1

LOCK WASHER,M5

3шт.

11

887416R1

WASHER

3шт.

12

3209676R1

SCREW

BOLT

3шт.

13

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

4 MM

2шт.

14

3079379R1

SCREW,Slot Cheese Hd, M4 x .7 x 16, 5.8

BOLT, M4 X 18 MM

2шт.

15

3209062R11

VALVE SPRING

2шт.

16

933677R1

WAVE WASHER

LOCK 5 MM

1шт.

17

3079038R91

BRUSH SET

1шт.

18

3079039R1

GASKET

1шт.

19

3079040R91

DIODE

RECTIFIER (ZENER)

1шт.

20

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

BOLT, M5 X 10 MM

1шт.

21

3078595R91

SET OF PARTS

ROTOR

1шт.

22

3078596R91

PACKAGE

SET, CONNECTING PARTS

1шт.

22

3078597R91

PACKAGE

SET, CONNECTING PARTS

1шт.

23

3079035R2

ROTOR

1шт.
