Запчасти Case IH 833 (08-09) - BATTERY, STARTING MOTOR, ALTERNATOR (06) - ELECTRICAL

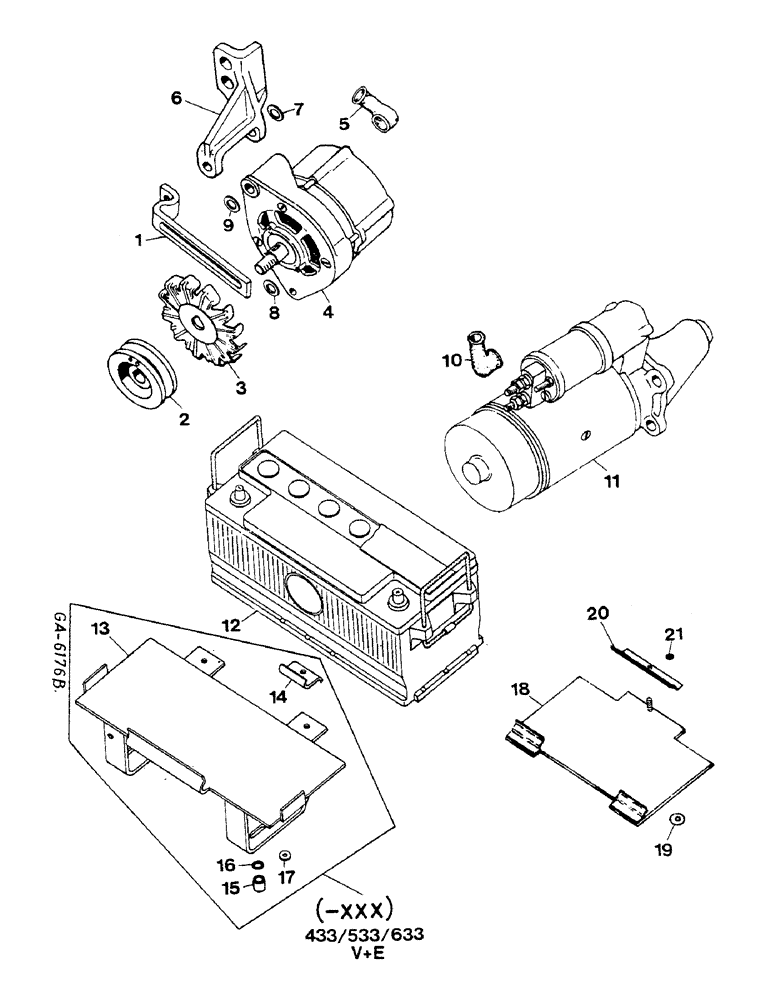

Схема запчастей Case IH 833 - (08-09) - BATTERY, STARTING MOTOR, ALTERNATOR (06) - ELECTRICAL
13
8
16
7
18
1
21
3
4
12
2
9
10
14
19
17
15
20
11
6
5

Артикул

Название

Примечание

Количество

1

3144909R1

BRACE

ALTERNATOR

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

2

3138943R1

PULLEY

V-BELT

1шт.

3

3138944R1

FAN BLADE

PULLEY

1шт.

4

NSS

NOT SOLD SEPARAT

GENERATOR, ALTERNATOR - SEE ALTERNATOR

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

1шт.

933334R1

LOCK WASHER,M8

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

932833R1

LOCK PIN,M13 x 18, Slotted

1шт.

5

3052809R1

PLUG

PROTECTOR, RUBBER, ALTERNATOR

2шт.

6

3144908R1

BRACKET

ALTERNATOR

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

103326

LOCK WASHER,3/4"

1шт.

7

Q397

WASHER

1шт.

8

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

1шт.

9

3051771R1

WASHER

1шт.

10

3055196R1

BOOT

PROTECTOR, RUBBER, STARTER

1шт.

11

NSS

NOT SOLD SEPARAT

STARTER, SEE STARTING MOTOR

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

12

NSS

NOT SOLD SEPARAT

BATTERY, SEE CABLES

1шт.

13

3137414R12

TRAY

BATTERY

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

103320

LOCK WASHER,5/16"

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

3137422R2

SUPPORT

BRACKET

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

5шт.

102635

NUT,3/8"-16, G5

5шт.

15

3130813R1

SPACER, 9.7 X 20 X 20 MM, V-VERSION

2шт.

15

3052430R2

SPACER, 14 X 19 X 33 MM, E-VERSION

2шт.

16

3140757R1

WASHER

11 X 16 X 2 MM

6шт.

17

615031R1

WASHER

9.7 X 22 X 1.5 MM

2шт.

18

3217835R92

BATTERY TRAY

433/533/633/733 - (XXX-), 833

1шт.

18

NSS

NOT SOLD SEPARAT

TRAY, BATTERY, 433/533/633/733 - (-XXX), ORDER: 3217835R92 + 3229906R1

1шт.

19

3146380R1

WASHER

4шт.

717457R1

NUT,M8 x 1.25, Thin

M8

4шт.

20

3229906R1

SUPPORT

BRACKET, 433/533/633/733 - (XXX-), 833

1шт.

20

3140060R1

BRACKET

433/533/633/733 - (-XXX)

1шт.

21

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

1шт.

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

Выбрано товаров: 48
