Запчасти Case IH 833 (08-02) - CABLES (06) - ELECTRICAL

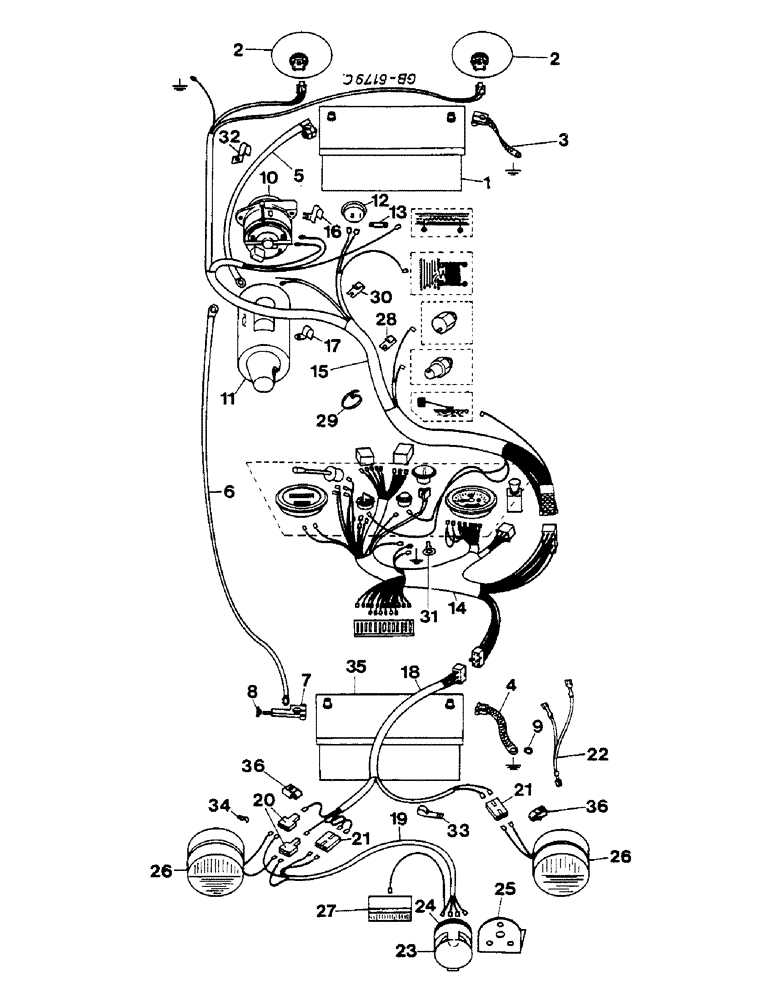

Схема запчастей Case IH 833 - (08-02) - CABLES (06) - ELECTRICAL
24
7
32
6
20
25
26
23
5
33
8
29
14
11
16
4
18
13
10
30
31
15
1
26
34
36
17
9
3
36
35
19
21
22
28
2
2
27
12
21

Артикул

Название

Примечание

Количество

1

3217833R1

BATTERY, DRY

BATTERY DRY 12 V 88 AH

1шт.

2

NSS

NOT SOLD SEPARAT

LIGHT HEAD, SEE HEAD LIGHT

2шт.

3

3148449R1

CABLE

BATTERY GROUND, 433/53/633/733/833

1шт.

4

718090R91

CABLE,330mm L

BATTERY GROUND, 433/533/633 - (-XXX)

1шт.

5

3217834R1

CABLE

BATTERY, STARTING MOTOR, 433/533/633

1шт.

5

3226882R1

CABLE

BATTERY, STARTING MOTOR, 733/833

1шт.

6

3137423R1

CABLE BATTERY, STARTING MOTOR, 433/533/633 - (-XXX)

1шт.

7

787496R91

TERMINAL CONNECTOR

CLAMP, 433/533/633 - (-XXX)

1шт.

8

756620R91

HANDLE

BUTTON, TERMINAL CLAMP, 433/533/633 - (-XXX)

1шт.

9

3058249R1

WASHER

CABLE GROUND, 433/533/633 - (-XXX)

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

NSS

NOT SOLD SEPARAT

GENERATOR, ALTERNATOR, - SEE BATTERY, STARTING MOTOR, ALTERNATOR

1шт.

11

NSS

NOT SOLD SEPARAT

STARTER, SEE BATTERY, STARTING MOTOR, ALTERNATOR

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

12

3057542R91

HORN

BOSCH

1шт.

12

3057682R92

HORN

MIXO FRANCE

1шт.

12

3147285R91

HORN

SEIMA

1шт.

13

3142066R1

BRACKET

MIXO

1шт.

13

3147286R1

SUPPORT

BRACKET, SEIMA

1шт.

120376

NUT,5/16"-18, G5

1шт.

103320

LOCK WASHER,5/16"

1шт.

14

3148487R3

HARNESS

INSTRUMENT PANEL, 433/533/633 - (-XXX), ORDER ALSO, 3223938R1

1шт.

14

3402235R1

HARNESS

INSTRUMENT PANEL, 433/533/633 - (XXX-), 733/833

1шт.

14

3217298R3

HARNESS

INSTRUMENT PANEL, 433/533/633 - (-XXX), VERSION W/OUT WARNING FLASHER UNIT

1шт.

14

3402234R1

HARNESS

INSTRUMENT PANEL, 433/533/633 - (XXX-), 733/833, VERSION W/OUT WARNING FLASHER UNIT

1шт.

15

3148482R1

HARNESS

FRONT, 433/533/633

1шт.

15

3226881R1

HARNESS

FRONT, 733

1шт.

16

3229712R1

CLIP

CABLE

1шт.

17

3229709R1

CLIP

CABLE

1шт.

18

3217291R1

HARNESS

REAR

1шт.

19

3059590R92

CABLE

FOR PLUG SOCKET

1шт.

20

3057563R91

TERMINAL CONNECTOR

SOCKET, CONNECTING

1шт.

21

3054787R91

CONNECTOR, ELEC

CONNECTOR SOCKET, 2 POLE

1шт.

22

3223938R1

CABLE

HARNESS, VERSION W/START SAFETY SWITCH

1шт.

23

3142496R1

SOCKET/RECEPTACLE,A7

PLUG

1шт.

3058125R1

CABLE GROUND

1шт.

21268R1

SCREW

BOLT, NO. 10 X 38 MM

3шт.

120361

NUT,Hex Mach Screw, #10 - 24

3шт.

120385

WASHER,3/16"

433/533/633

3шт.

23

3142496R1

SOCKET/RECEPTACLE,A7

PLUG

1шт.

3058125R1

CABLE, GROUND

1шт.

931858R1

SCREW,M5 x 0.8 x 35mm, Cl 5.8

BOLT

3шт.

934871R1

NUT,M5, Cl 5

3шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

733/833

3шт.

24

3131909R1

CAP

BOOT RUBBER

1шт.

25

3059686R1

SUPPORT

SPARE PART ANGLE, FOR SOCKET

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

26

NSS

NOT SOLD SEPARAT

LAMP, DIRECTIONAL INDICATOR, TAIL AND POSITION LIGHT - SEE LIGHTS

2шт.

27

NSS

NOT SOLD SEPARAT

LAMP, NUMBER PLATE, SEE LIGHTS

1шт.

28

3229708R1

CLIP

CABLE

1шт.

29

3148767R1

CABLE TIE

CABLE STRAP STRIP, FIXING, 200 MM

1шт.

29

3141428R1

BAND

STRIP, CABLE FIXING, 140 MM

1шт.

30

3229710R1

CLIP

CABLE

1шт.

31

3145710R1

SPADE TERMINAL

CONNECTOR

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

32

3229711R1

CLIP

CABLE

1шт.

33

3229713R1

CLIP

CABLE

1шт.

34

3229716R1

CLIP

SPARE PART CABLE

1шт.

932844R1

BOLT,Pan, Slotted, M5 x 12mm, Cl 4.8

2шт.

933986R1

LOCK WASHER,M5

2шт.

933972R1

NUT

M5

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

2шт.

35

3137413R1

BATTERY

12 V 88 AH

1шт.

35

3142083R1

BATTERY

12 V 88 AH, OPTIONAL, 433/533/633 - (-XXX)

1шт.

36

3217492R1

CLAMP

CLIP CABLE

2шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

2шт.

80681

LOCK WASHER,5/16"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
