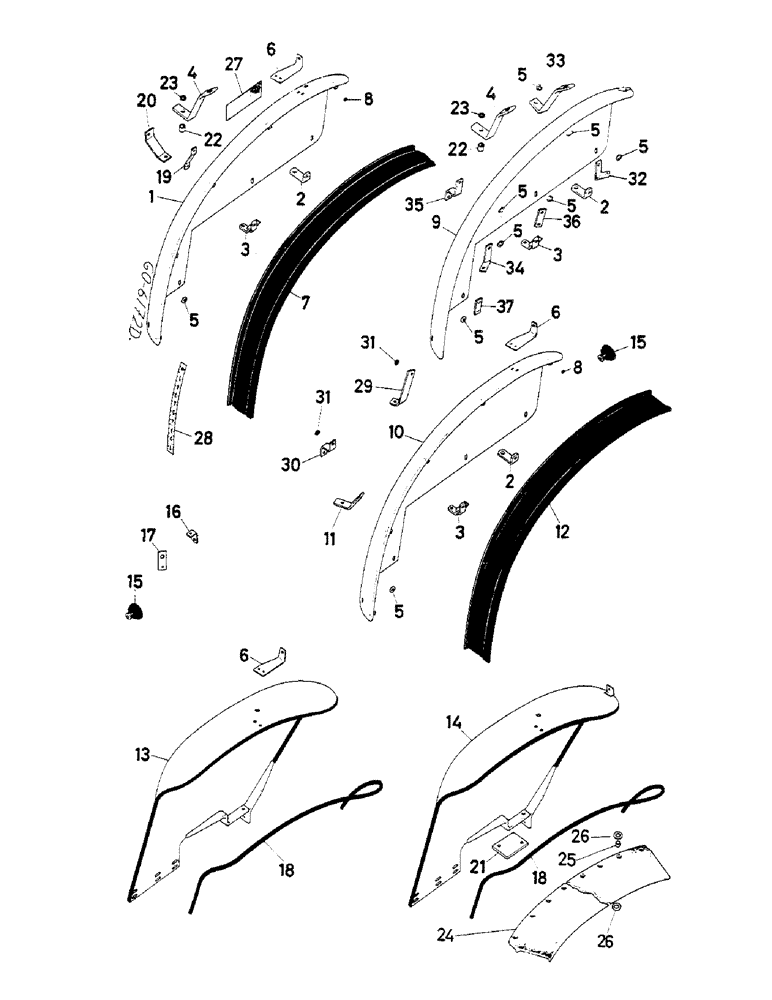

Запчасти Case IH 833 (13-06) - FENDERS (05) - SUPERSTRUCTURE

1

3216829R1

FENDER, LH

1шт.

1

3216830R91

FENDER, RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16" X 22 MM

8шт.

80681

LOCK WASHER,5/16"

6шт.

120376

NUT,5/16"-18, G5

10шт.

V Version

1шт.

2

786970R2

ANGLE

ANGLE

3шт.

V Version

1шт.

3

3131439R11

BRACKET

SPARE PART SUPPORT, FENDER

2шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

4шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

V Version

1шт.

4

3131785R1

SUPPORT

SPARE PART FENDER

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

2шт.

103320

LOCK WASHER,5/16"

2шт.

V Version

1шт.

5

21448R1

WASHER

6шт.

5

21448R1

WASHER

1шт.

V Version

1шт.

5

21448R1

WASHER

6шт.

E Version

1шт.

6

3146889R1

HOLDER

SPARE PART REAR REFLECTOR, LH

1шт.

6

3146890R1

HOLDER

SPARE PART REAR REFLECTOR, RH - 433/533/633 (-XXX)

1шт.

7

3136603R1

RUBBER

SHROUD

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

BOLT, 1/4" X 16 MM

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

V Version

1шт.

8

120392

WASHER,1/4", SAE

10шт.

V Version

1шт.

9

3146050R92

FENDER

LH

1шт.

9

3146051R92

FENDER

RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

80681

LOCK WASHER,5/16"

6шт.

120376

NUT,5/16"-18, G5

10шт.

V Version

1шт.

10

3147690R92

FENDER

LH

1шт.

10

3147691R92

FENDER

RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

80681

LOCK WASHER,5/16"

6шт.

120376

NUT,5/16"-18, G5

10шт.

V Version

1шт.

11

3146779R1

SUPPORT

SPARE PART FENDER

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

2шт.

103320

LOCK WASHER,5/16"

2шт.

V Version

1шт.

12

3147692R1

SHROUD

RUBBER

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

BOLT, 1/4" X 16 MM

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

V Version

1шт.

13

3146898R91

FENDER

SPARE PART LH CPTE. WITH: 18

1шт.

13

3146899R91

FENDER

SPARE PART RH CPTE. WITH: 18

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103325

LOCK WASHER,5/8"

4шт.

80681

LOCK WASHER,5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

E Version

1шт.

14

3146047R91

FENDER

LH CPTE. WITH: 18

1шт.

14

3146048R91

FENDER

SPARE PART RH CPTE. WITH: 18

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Course Threads

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103325

LOCK WASHER,5/8"

6шт.

80681

LOCK WASHER,5/16"

4шт.

120376

NUT,5/16"-18, G5

6шт.

575810R1

WASHER

16 X 38 X 3 MM

2шт.

E Version

1шт.

15

34802DA

REFLECTOR

4шт.

16

3147867R1

HOLDER

SPARE PART REAR REFLECTOR

2шт.

V Version

1шт.

17

3217299R1

BAR

HOLDER, REAR REFLECTOR

4шт.

E Version

1шт.

18

3233490R1

PROTECTION STRIP

2шт.

3217585R1

RIVET

24шт.

E Version

1шт.

19

3217742R1

SUPPORT

SPARE PART LH

1шт.

V Version

1шт.

20

3217743R1

SUPPORT

SPARE PART RH

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

V Version

1шт.

21

3137385R1

BAR

SPARE PART PLATE, 12 MM

4шт.

21

3137386R1

BAR

SPARE PART PLATE, 10 MM

4шт.

E Version

1шт.

22

3130813R1

SPACER

2шт.

V Version

1шт.

23

615031R1

WASHER

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

V Version

1шт.

24

3229631R1

SHROUD

RUBBER

2шт.

E Version

1шт.

25

3057415R1

BUSHING

18шт.

E Version

1шт.

26

3145213R1

WASHER

36шт.

905170R1

SCREW,Pan Cross Recess, M6 x 20mm, Cl 4.8

18шт.

832-10406

NUT,M6 x 1, Cl 8

18шт.

3217585R1

RIVET

6 X 20 MM

2шт.

E Version

1шт.

27

1091352R1

PRODUCT GRAPHIC

"CLUTCH LEVER"

1шт.

28

1091684R1

PRODUCT GRAPHIC

SPARE PART HYDRAUL.SKALA

1шт.

V Version

1шт.

29

3232023R1

SUPPORT

SPARE PART RH

1шт.

V Version

1шт.

30

3232024R1

SUPPORT

SPARE PART LH

1шт.

V Version

1шт.

31

20285H

WASHER

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

V Version

1шт.

32

3401226R1

SUPPORT

SPARE PART LH, ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.

32

3401227R1

SUPPORT

SPARE PART RH, ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

V Version

1шт.

33

3401232R1

SUPPORT

SPARE PART LH ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.

33

3401233R1

SUPPORT

SPARE PART RH, ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

V Version

1шт.

34

3401230R1

SUPPORT

SPARE PART ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

V Version

1шт.

35

3401237R1

SUPPORT

SPARE PART ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

V Version

1шт.

36

3401236R1

PLATE

SPARE PART ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.

37

3401255R1

PLATE ASSY.

ONLY FOR V-733/833 WITH 14.9 X 28 TYRES

1шт.
