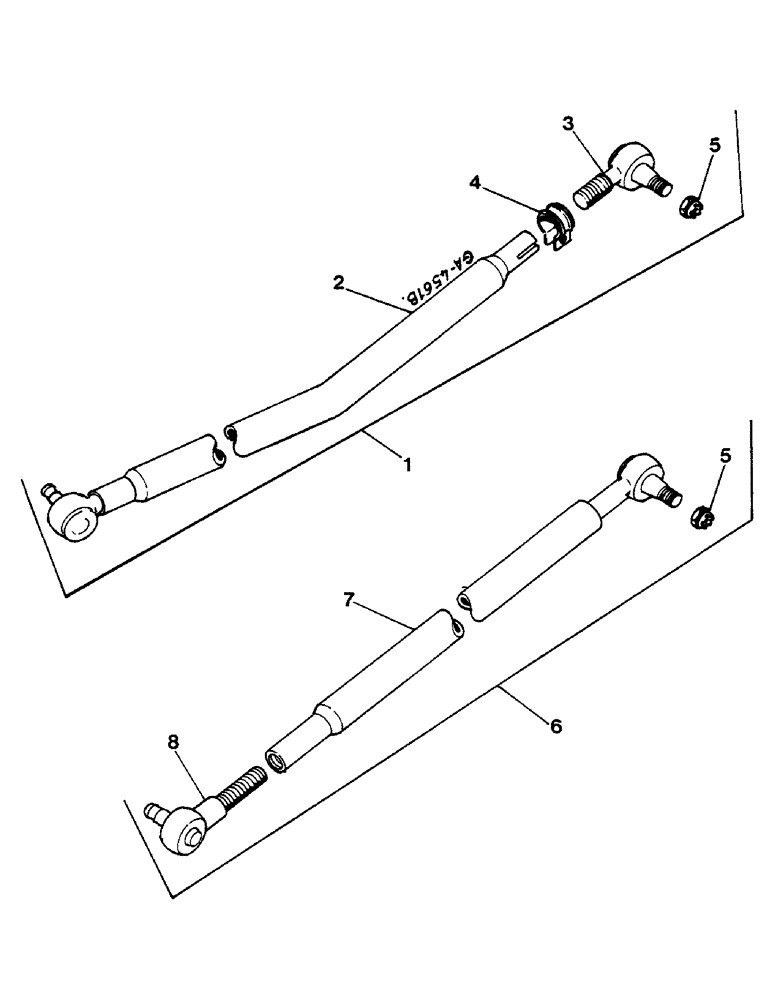

Запчасти Case IH 833 (05-09) - DRAG LINK (04) - STEERING

1

3137934R91

TIE-ROD

TIE ROD LINK DRAG (433/533/633), E VERSIONS

1шт.

1

3226850R91

TIE-ROD

LINK DRAG (733), E VERSIONS

1шт.

1

3226850R91

TIE-ROD

LINK DRAG (733), FOR VERSION WITH FRONT AXLE 3137251R11, V VERSIONS

1шт.

1

3137934R91

TIE-ROD

TIE ROD LINK DRAG (433/533/633), FOR VERSION WITH FRONT AXLE 3137251R11, V VERSIONS, CONSISTS OF: ITEMS 2 - 5

1шт.

2

3224358R1

CLAMP

PIPE STEEL, WITH BALL JOINT, 433/533/633, E VERSIONS

1шт.

2

3226959R1

PIPE

STEEL, WITH BALL JOINT, 733

1шт.

3

3224387R1

BALL JOINT

1шт.

4

3131018R1

CLAMP

1шт.

716206R1

BOLT,Hex, M8 x 1 x 40mm, Cl 8.8

1шт.

103320

LOCK WASHER,5/16"

1шт.

716196R1

NUT,M8, Cl 6

1шт.

5

933757R1

THIN NUT,M14 x 1.5

1шт.

932843R1

COTTER PIN,M3.2 x 28

COTTER, 3 X 28 MM

1шт.

6

3146916R91

ROD

LINK DRAG, CPTE, 433/533/633, V VERSIONS

1шт.

6

3226849R91

GUIDE

LINK DRAG, CPTE, 733, V VERSIONS, CONSISTS OF: ITEMS 5, 7, 8

1шт.

7

3146934R91

TIE-ROD

PIPE STEEL, WITH BALL JOINT, 433/533/633, V VERSIONS

1шт.

7

3226957R1

PIPE

STEEL, WITH BALL JOINT, 733, V VERSIONS

1шт.

8

3146935R91

BALL JOINT

433/533/633, V VERSIONS

1шт.

8

3226958R1

BALL JOINT

733, V VERSIONS

1шт.

933067R1

NUT

M20

1шт.
