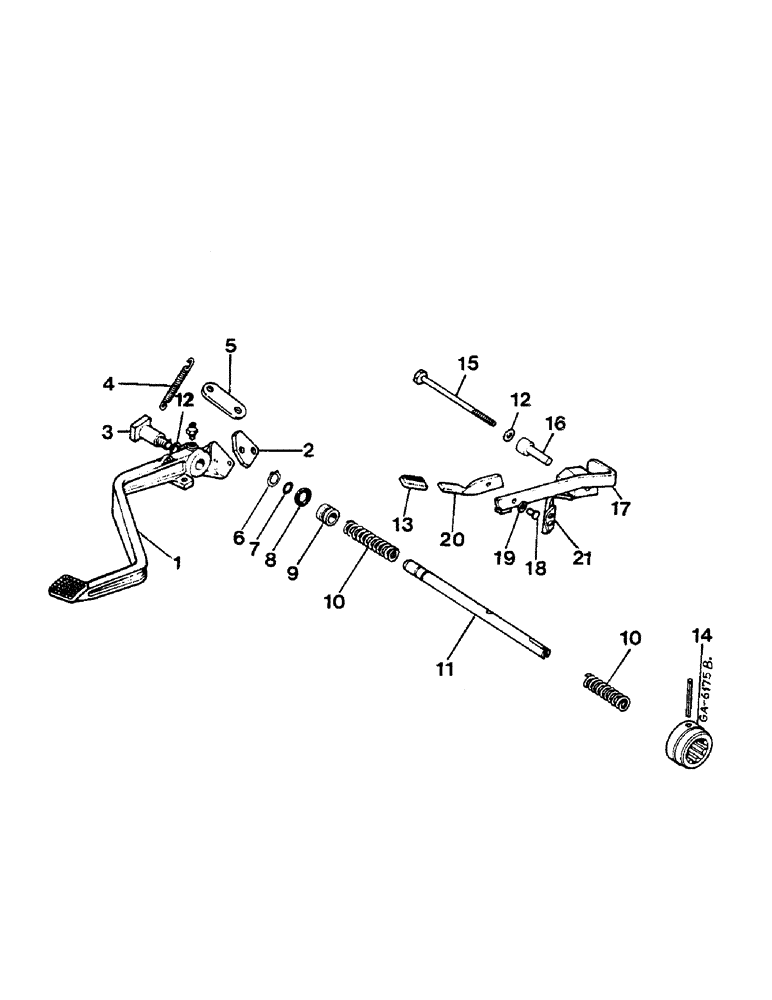

Запчасти Case IH 833 (07-37) - DIFFERENTIAL LOCK (04) - Drive Train

1

3137361R11

PEDAL

FOOT, WITH SLIDING PLATE AND LUBRICATOR

1шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

FITTING

1шт.

E 433/533/633/733/833

1шт.

2

786429R1

PLATE

SLIDING

1шт.

104168

RIVET,Csk, 1/4" x 7/8"

1/4" X 11 MM

2шт.

E 433/533/633/733/833

1шт.

3

3134568R1

BOLT

PEDAL

1шт.

E 433/533/633/733/833

1шт.

4

758960R2

SPRING

RETURN

1шт.

E 433/533/633/733/833

1шт.

4

3059790R1

SPRING

RETURN

1шт.

V 433/533/633/733/833

1шт.

5

3137367R1

SUPPORT ASSY.

SPARE PART SPRING RETURN

1шт.

E 433/533/633/733/833

1шт.

6

933389R1

SNAP RING,M13, Ext

RING LOCK

1шт.

7

355967R1

O-RING,0.364" ID x 0.003" Width

1шт.

8

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

9

786427R1

RETAINER

PACKING RING

1шт.

10

759775R2

SPRING

2шт.

11

3134570R11

SHAFT

DIFFERENTIAL LOCK

1шт.

717020R1

LOCK PIN,M5 x 18, Slotted

1шт.

12

933102R1

WASHER

19 X 38 MM

1шт.

E 433/533/633/733/833

1шт.

12

PO10535

WASHER

13.5 X 32 MM

1шт.

V 433/533/633/733/833

1шт.

13

3142644R1

PAD

SPARE PART RUBBER

1шт.

V 433/533/633/733/833

1шт.

14

711482R3

SPLINED COUPLING

CLUTCH, DIFFERENTIAL LOCK

1шт.

932172R1

ROLL PIN,M6 x 60, Slotted

1шт.

15

3057211R1

BOLT

1шт.

V 433/533/633/733/833

1шт.

16

3059362R1

RING

BUSHING PEDAL

1шт.

V 433/533/633/733/833

1шт.

17

3146875R91

PEDAL

SPARE PART FOOT, WITH SLIDING PLATE

1шт.

104098

RIVET,But Hd, 5/16" x 7/8"

5/16" X 13 MM

1шт.

104168

RIVET,Csk, 1/4" x 7/8"

1/4" X 11 MM

1шт.

V 433/533/633/733/833

1шт.

18

932842R1

HEADED PIN,M10 x 22

HEADED

1шт.

V 433/533/633/733/833

1шт.

19

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

V 433/533/633/733/833

1шт.

20

3146878R1

PEDAL

SPARE PART FOR DIFFERENTIAL LOCK

1шт.

932040R1

LOCK PIN,4mm OD x 24mm L, Slotted

1шт.

V 433/533/633/733/833

1шт.

21

3059361R1

PLATE SLIDING

1шт.

V 433/533/633/733/833

1шт.
