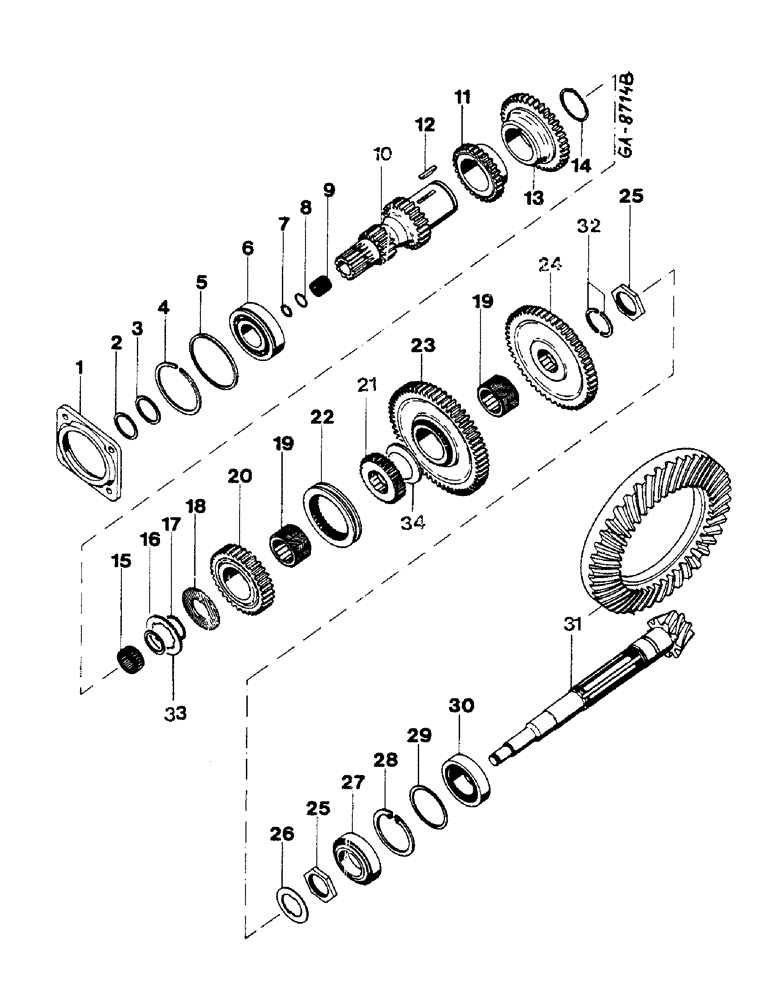

Запчасти Case IH 833 (07-21) - TRANSMISSION - 3RD AND 4TH REVERSE RANGE (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3148057R2
COVER
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
103321
LOCK WASHER,3/8"
4шт.
2
933283R1
SNAP RING,M45, Ext
RING, LOCK
1шт.
3
3148640R1
WASHER
1шт.
4
3217223R1
RING
RETAINING, 2.95 MM (.116")
1шт.
4
3217224R1
SEALING RING
RING RETAINING, 2.85 MM (.112")
1шт.
4
3217225R1
RING
RETAINING, 2.75 MM (.108")
1шт.
4
3217226R1
X
RETAINING, 2.65 MM (.104")
1шт.
5
3148642R1
WASHER
1шт.
6
3216053R91
BEARING, BALL
433/533/633/733
1шт.
6
3233181R91
BEARING, ROLLER
833
1шт.
7
3148226R1
RING, SNAP
RING SNAP RETAINING
1шт.
8
3148083R1
THRUST WASHER
1шт.
9
3148632R91
NEEDLE BEARING
1шт.
10
3216960R2
SHAFT
HOLLOW, 16/22 TEETH, 433/533/633 : (Y8665-), 733/833
1шт.
10
3148625R1
SHAFT
HOLLOW, 16/22 TEETH, 433/533/633 : (-Y8664)
1шт.
11
3148369R2
GEAR
3RD SPEED, 29 TEETH
1шт.
12
3148065R1
KEY
4шт.
13
3148370R2
GEAR
4TH SPEED, 38 TEETH
1шт.
14
3047960R1
SNAP RING,M65, Ext
RING LOCK
1шт.
15
3216050R91
BEARING, NEEDLE
1шт.
16
3148638R1
THRUST WASHER
1шт.
17
933946R1
RING, SNAP
RING SNAP LOCK
1шт.
18
3148624R1
THRUST WASHER
1шт.
19
3148623R1
SPLINED COUPLING
BUSHING
2шт.
20
3148235R1
GEAR
ROAD RANGE, 34 TEETH
1шт.
20
3148235R1
GEAR
ROAD RANGE, 36 TEETH
1шт.
21
3225623R1
HUB
SLIDING, 433/533/633 : (B8574-)
1шт.
21
3148039R1
GEAR
HUB SLIDING, 433/533/633 : (-B8573), 733/833
1шт.
22
3148038R1
COLLAR
SHIFTER
1шт.
23
3148036R1
GEAR
FIELD RANGE, 60 TEETH
1шт.
24
3225621R1
GEAR
REVERSE RANGE, 53 TEETH, 433/533/633 : (B8574-)
1шт.
24
3148035R1
GEAR
REVERSE RANGE, 53 TEETH, 433/533/633 : (-B8573), 733/833
1шт.
25
3148033R1
THIN NUT
LOCK
2шт.
26
786308R1
LOCK WASHER
1шт.
27
3148445R91
BEARING, ROLLER
TAPERED
1шт.
28
717704R1
LOCKING RING
3.85 MM (.152")
1шт.
28
717705R1
X
LOCK 3.90 MM (.154")
1шт.
28
717706R1
RING, SNAP
RING SNAP LOCK 3.95 MM (.156")
1шт.
28
717707R1
RING
LOCK 4.00 MM (.158")
1шт.
28
717249R1
RING, SNAP
RING SNAP LOCK 4.05 MM (.160")
1шт.
29
3148019R1
WASHER
SHIM, 1.35 MM (.053")
1шт.
29
3148020R1
SHIM
1.40 MM (.055")
1шт.
29
3148021R1
SHIM
1.45 MM (.057")
1шт.
29
3148022R1
SHIM
1.50 MM (.059")
1шт.
29
3148023R1
DISC
SPARE PART SHIM, 1.55 MM (.060")
1шт.
29
3148027R1
DISC
SHIM, 1.60 MM (.062")
1шт.
29
3148024R1
SHIM
1.65 MM (.064")
1шт.
29
3148025R1
DISC
SHIM, 1.70 MM (.066")
1шт.
29
3148026R1
SHIM
1.75 MM (.068")
1шт.
29
3148028R1
SHIM
1.80 MM (.070")
1шт.
29
3148029R1
SHIM
1.85 MM (.072")
1шт.
29
3148030R1
SHIM
1.90 MM (.075")
1шт.
29
3148031R1
SHIM
1.95 MM (.077")
1шт.
29
3148032R1
SHIM
2.00 MM (.079")
1шт.
29
3148034R1
DISC
SHIM, 2.05 MM (.080")
1шт.
29
3148037R1
DISC
SHIM, 2.10 MM (.082")
1шт.
29
3148040R1
SHIM
2.15 MM (.084")
1шт.
29
3148041R1
DISC
SHIM, 2.20 MM (.086")
1шт.
29
3148042R1
SHIM
2.25 MM (.088")
1шт.
29
3148043R1
SHIM
2.30 MM (.090")
1шт.
29
3148044R1
SHIM
2.35 MM (.092")
1шт.
29
3148045R1
SHIM
2.40 MM (.094")
1шт.
29
3148046R1
DISC
SHIM, 2.45 MM (.096")
1шт.
29
3131412R1
BEARING WASHER
2.50 MM (.098")
1шт.
29
3131413R1
BEARING WASHER
SHIM, 2.55 MM (.100")
1шт.
29
3131414R1
BEARING WASHER
2.60 MM (.102")
1шт.
29
3131415R1
BEARING WASHER
2.65 MM (.104")
1шт.
29
3131416R1
BEARING WASHER
2.70 MM (.106")
1шт.
29
3131417R1
BEARING WASHER
2.75 MM (.108")
1шт.
29
3131418R1
BEARING WASHER
2.80 MM (.110")
1шт.
29
3131419R1
BEARING WASHER
2.85 MM (.112")
1шт.
30
3216048R91
TAPERED BEARING
TAPERED
1шт.
31
3225619R91
GEAR-SET
SHAFT, SPLINE, WITH DRIVE BEVEL GEAR 9/44 TEETH, 433/533/633 : (B8574-) -
1шт.
31
3148224R91
BEVEL GEAR
SHAFT, SPLINE, WITH DRIVE BEVEL GEAR 9/44 TEETH, 733/833, 433/533/633 : (-B8573)
1шт.
32
3225622R1
RING
HALF, 433/533/633 : (B8574-)
2шт.
32
3216860R2
SET
RING HALF, 733/833, 433/533/633 : (-B8573)
1шт.
33
3225625R1
SHIM
0.10 MM
1шт.
33
3225626R1
SHIM
0.20 MM
1шт.
33
3225627R1
SHIM
0.30 MM
1шт.
33
3225628R1
SHIM
0.40 MM, 433/533/633 : (B8574-)
1шт.
34
3225624R1
BELLEVILLE SPRING
433/533/633 : (B8574-)
1шт.
Выбрано товаров: 83
