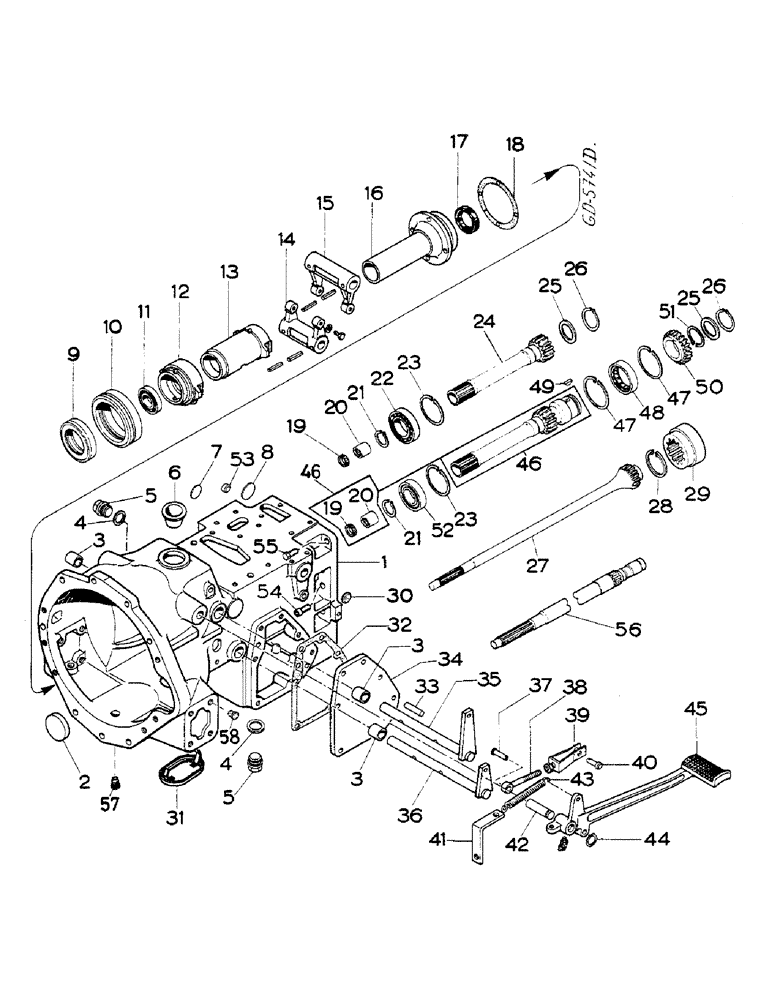

Запчасти Case IH 833 (07-10) - DOUBLE CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

1

3217432R91

HOUSING

CLUTCH CPTE., WITH: 42, 53, 433/533/633

1шт.

1

3232747R91

HOUSING

CLUTCH CPTE., WITH: 42, 53, 733/833

1шт.

2

3139281R1

PLUG

EXPANSION

1шт.

3

43291D

BUSHING

4шт.

4

933609R1

RING

2шт.

5

3059999R2

PLUG

2шт.

6

785816R1

CAP

DUST

1шт.

7

172558

PLUG,Exp, 1 1/4"

EXPANSION

1шт.

8

934010R1

PLUG,M12, Conical

EXPANSION

1шт.

9

786532R91

THRUST BEARING,65mm ID x 101.5mm OD x 21.5mm W

THRUST

1шт.

10

3142800R1

THRUST RING,106.2mm ID x 135mm OD x 44.85mm L

RELEASE

1шт.

10

786533R91

BEARING

RING, RELEASE CPTE., WITH: 11

1шт.

11

3146056R91

BEARING

BALL

1шт.

12

3148748R1

SLEEVE

RELEASE, OUTER

1шт.

757732R91

NIPPLE, LUBE

NIPPLE FITTING

1шт.

13

786530R3

HOUSING

SLEEVE, RELEASE, INNER

1шт.

13

786530R31

STOP

SLEEVE, RELEASE, INNER CPTE., WITH: 9 - 13

1шт.

14

786535R1

YOKE

UNIVERSAL JOINT YOKE CLUTCH RELEASE

1шт.

Q2933

LOCK PIN,M8 x 40, Slotted

2шт.

932236R1

LOCK PIN,M5 x 40, Slotted

2шт.

786552R1

SET SCREW,Hex, 1/4" - 20 x 3/4"

SET 1/4" X 19 MM

2шт.

103319

LOCK WASHER,1/4"

2шт.

15

786551R1

FORK

PTO CLUTCH

1шт.

Q2933

LOCK PIN,M8 x 40, Slotted

2шт.

932236R1

LOCK PIN,M5 x 40, Slotted

2шт.

786552R1

SET SCREW,Hex, 1/4" - 20 x 3/4"

SET, 1/4" X 19 MM

2шт.

103319

LOCK WASHER,1/4"

2шт.

16

786527R31

TUBE

PIPE, GUIDE, CPTE., WITH: 17

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

17

786529R91

OIL SEAL,45mm ID x 65mm OD x 8mm Thk

1шт.

18

786526R1

GASKET

1шт.

19

786446R91

OIL SEAL

1шт.

20

747817R91

BEARING, NEEDLE,Needle, 25mm ID x 33mm OD x 20mm W

1шт.

21

933283R1

SNAP RING,M45, Ext

RING LOCK

1шт.

22

763321R91

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

433

1шт.

22

785728R91

BEARING, ROLLER,45 mm ID x 85 mm OD x 19 mm

533/633/733/833

1шт.

23

933288R1

SNAP RING,M85, Int

RING LOCK

1шт.

24

3405397R91

SHAFT

HOLLOW, 540 PTO CPTE., WITH: 19, 20

1шт.

25

3148225R1

THRUST WASHER

1шт.

26

3057131R1

RING, SNAP

RING SNAP LOCK

1шт.

27

3216992R1

SHAFT

CLUTCH

1шт.

27

3216951R1

SHAFT

CLUTCH, VERSION WITH SPEED REDUCER

1шт.

28

933235R1

SNAP RING,M40, Int

LOCK

1шт.

29

3148058R1

COUPLING, BREAK AWAY

1шт.

30

41-16

PLUG,Exp, 1"

EXPANSION

1шт.

31

786507R11

COVER

DUST, 433/533/633

1шт.

31

3233183R91

COVER

DUST, 733/833

1шт.

32

3134517R1

GASKET

1шт.

33

37-2614

DOWEL,3/8" x 7/8"

2шт.

34

3134534R1

PLATE

SIDE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

35

786537R11

SHAFT

CLUTCH RELEASE

1шт.

36

786536R11

SHAFT

CLUTCH RELEASE

1шт.

37

3131056R1

CLEVIS PIN

HEADED

1шт.

102762

COTTER PIN

2 X 15 MM

1шт.

38

786541R21

ROD

CONNECTING

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

831123R1

SQUARE NUT

3/8" SQUARE

1шт.

39

3058293R1

CLEVIS

YOKE

1шт.

40

103496

CLEVIS PIN,3/8" x 1.060"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

41

786540R1

PAD

SPARE PART PLATE FASTENING

1шт.

42

786505R1

SHAFT

1шт.

43

763192R1

SPRING

1шт.

44

933123R1

SNAP RING,M20, Ext

RING LOCK

1шт.

45

3059951R92

PEDAL

CLUTCH CPTE., WITH: 37, 38

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

739159R91

LUBE NIPPLE

LUBRICATOR FITTING

1шт.

46

3405391R91

SHAFT

HOLLOW, VERSION WITH 540/1000 PTO

1шт.

46

3405395R91

SHAFT

HOLLOW, VERSION WITH 540/1000 PTO AND WITH SPEED REDUCER

1шт.

47

933077R1

SNAP RING,M90, Int

2шт.

Circlip, version with 540/1000 PTO and with speed reducer: 833 for versions with 540/1000 PTO, speed reducer and for synchronizer

1шт.

48

3216468R91

ROLLER BEARING,60.4 mm ID x 20 mm

1шт.

Bearing, roller, version with 540/1000 PTO and with speed reducer, 833 for versions with 540/1000 PTO, speed reducer and for synchronizer

1шт.

49

218211

DRIVING SPROCKET

VERSION WITH: 540/1000 PTO

1шт.

50

3216471R1

GEAR

24 TEETH/DENTS, VERSION WITH 540/1000 PTO

1шт.

51

933030R1

SNAP RING,M55, Ext

CIRCLIP, VERSION WITH 540/1000 PTO

1шт.

52

763321R91

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

Bearing, ball, version with 540/1000 PTO and with speed reducer, 833 for versions with 540/1000 PTO, speed reducer and for synchronizer

1шт.

53

3058102R1

PLUG

1шт.

54

3217431R1

HEX SOC SCREW

BOLT

2шт.

103323

LOCK WASHER,1/2"

433/533/633

2шт.

54

3217431R1

HEX SOC SCREW

BOLT

2шт.

711055R1

WASHER

13 X 22 X 2 MM - 733/833

2шт.

55

3216191R1

BOLT

BOLT

6шт.

103323

LOCK WASHER,1/2"

433/533/633

6шт.

55

3216191R1

BOLT

BOLT

4шт.

711055R1

WASHER

13 X 22 X 2 MM

4шт.

56

3226964R1

SHAFT

CLUTCH, FOR SYNCHRONIZER, VERSION WITH SPEED REDUCER

1шт.

57

3402981R1

PLUG

19 MM DIA.

2шт.

57

3402980R1

PLUG

24 MM DIA.

1шт.

57

3402982R1

PLUG

44 MM DIA.

1шт.

58

716495R1

CAP

3/8"

8шт.
