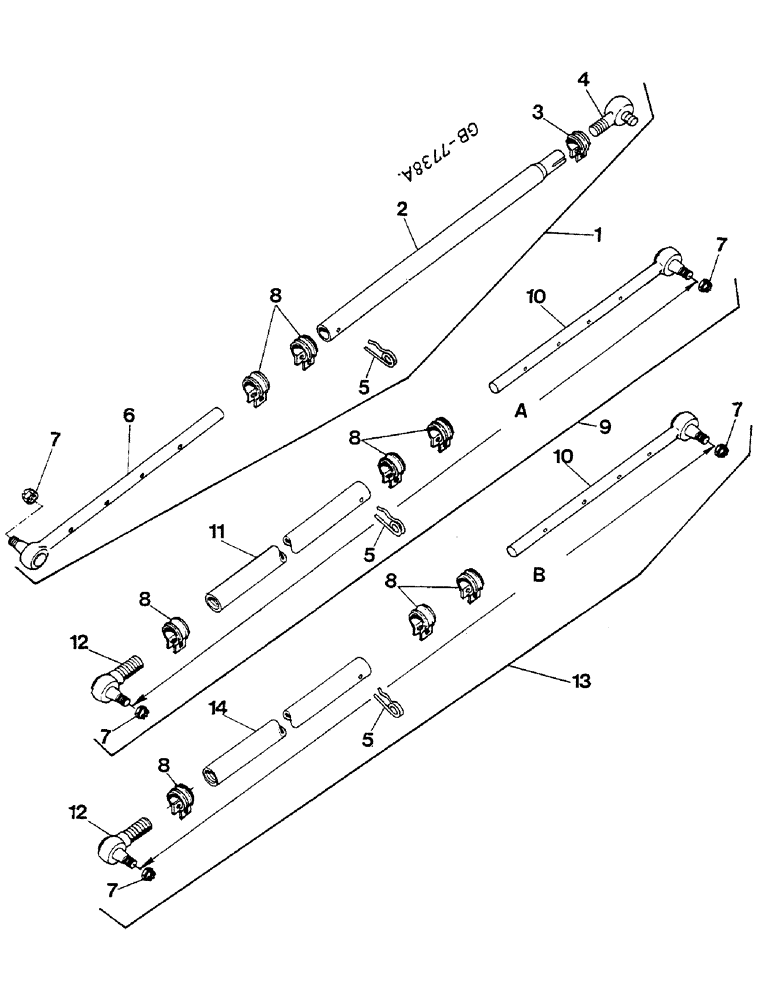

Запчасти Case IH 833 (14-14) - TIE ROD Suspension

1

3137341R91

TIE-ROD

2шт.

V Version

1шт.

1

3137341R91

TIE-ROD

V-733 W/FRONT AXLE 3137251R11

2шт.

E Version

1шт.

2

3137342R1

TIE-ROD

SPARE PART PIPE, STEEL

2шт.

3

3131025R1

CLAMP

2шт.

716206R1

BOLT,Hex, M8 x 1 x 40mm, Cl 8.8

2шт.

103320

LOCK WASHER,5/16"

2шт.

716196R1

NUT,M8, Cl 6

2шт.

4

3131016R1

BALL JOINT

2шт.

5

716198R1

SPLIT PIN/SAFETY PIN

SPRING

2шт.

6

3137343R1

BALL JOINT

PIPE, STEEL

2шт.

7

933169R1

NUT,M12 x 1.5

2шт.

934793R1

COTTER PIN,M3.2 x 25

1шт.

934794R1

COTTER PIN,M3.2 x 28

COTTER

1шт.

8

3131018R1

CLAMP

3шт.

716206R1

BOLT,Hex, M8 x 1 x 40mm, Cl 8.8

1шт.

103320

LOCK WASHER,5/16"

1шт.

716196R1

NUT,M8, Cl 6

1шт.

9

3146918R91

TIE-ROD

TIE ROD A - 675 MM - - 433/533/633 - - 733/833 WITH HIGH AXLE EXTENSION

1шт.

9

3226855R91

TIE-ROD

A - 715 MM - - 733/833 WITH LOCK AXLE EXTENSION

1шт.

E Version

1шт.

10

3224390R1

TIE-ROD

PIPE, STEEL, WITH BALL JOINT

1шт.

10

3224386R1

TIE-ROD

PIPE, STEEL, WITH BALL JOINT, OPTIONAL- 433/533/633 - - 733/833 WITH HIGH AXLE EXTENSION

1шт.

10

3226961R1

BALL JOINT

PIPE, STEEL- 733/833 WITH LOW AXLE EXTENSION

1шт.

E Version

1шт.

11

3224686R1

TUBE

PIPE, STEEL - FOR TIE ROD 3146918R91

1шт.

11

3226960R1

TUBE

PIPE, STEEL - FOR TIE ROD 3226855R91

1шт.

E Version

1шт.

12

3224380R1

BALL JOINT

1шт.

12

3147510R1

BALL JOINT

OPTIONAL

1шт.

E Version

1шт.

13

3146919R91

TIE-ROD

SPARE PART B - 565 MM

1шт.

E Version

1шт.

14

3224687R1

TUBE

PIPE, STEEL - FOR TIE ROD 3146919R1

1шт.

E Version

1шт.
