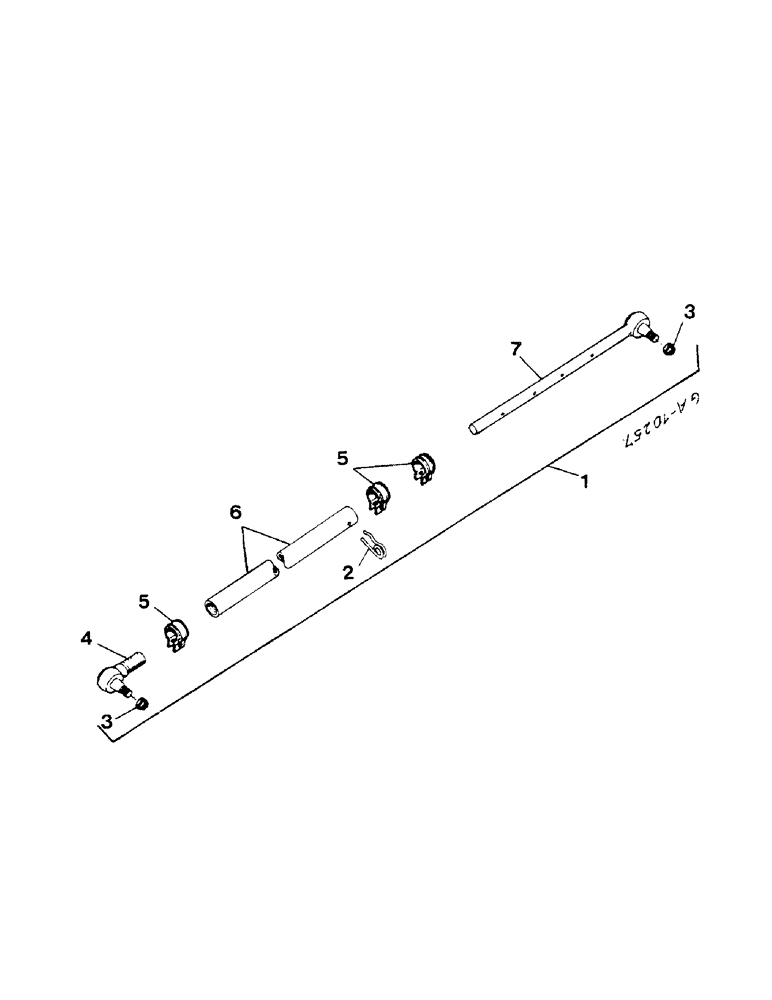

Запчасти Case IH 833 (14-12) - TIE ROD - E VERSION WITH POWER STEERING Suspension

1

3401563R91

TIE-ROD

1шт.

2

716198R1

SPLIT PIN/SAFETY PIN

SPRING

1шт.

3

933169R1

NUT,M12 x 1.5

2шт.

934794R1

COTTER PIN,M3.2 x 28

COTTER 3.2 X 28 MM

2шт.

4

3224380R1

BALL JOINT

1шт.

5

3131018R1

CLAMP

3шт.

716206R1

BOLT,Hex, M8 x 1 x 40mm, Cl 8.8

3шт.

103320

LOCK WASHER,5/16"

3шт.

716196R1

NUT,M8, Cl 6

3шт.

6

3401583R1

TIE-ROD

PIPE, STEEL

1шт.

7

3401584R1

TUBE

PIPE, STEEL, WITH BALL JOINT

1шт.
