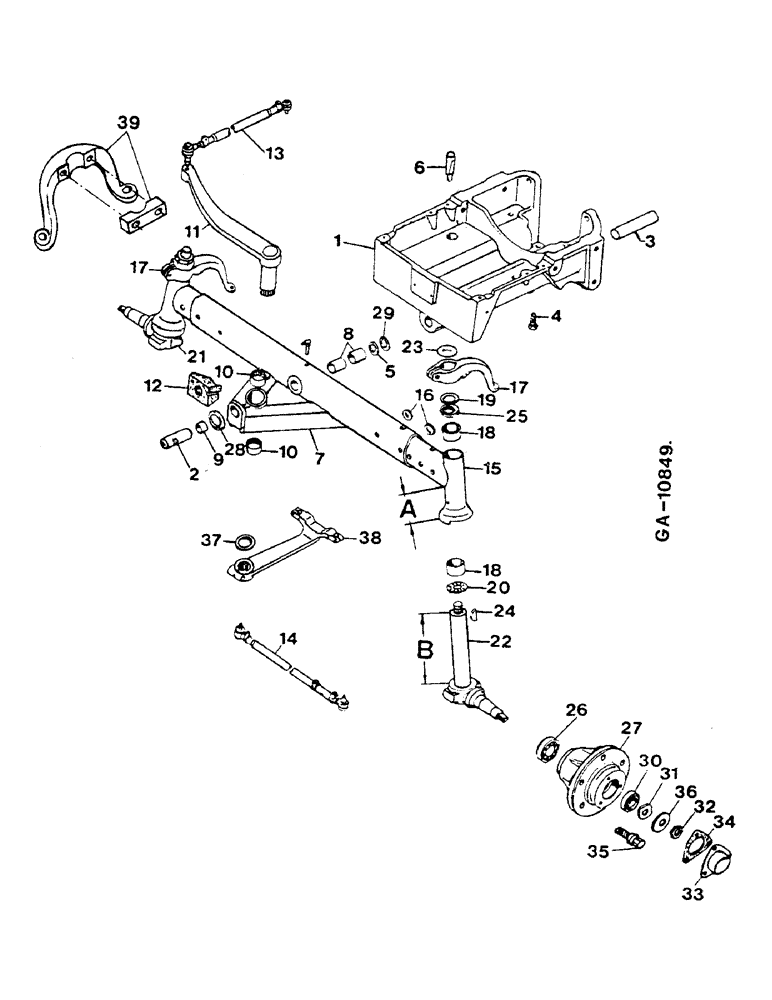

Запчасти Case IH 833 (14-07) - FRONT AXLE - E-VERSION Suspension

1

3401560R1

CARRIER

SUPPORT, FRONT AXLE - 433/533/633

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

103325

LOCK WASHER,5/8"

8шт.

1

3401561R1

CARRIER

SPARE PART SUPPORT, FRONT AXLE - 733/833

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

103325

LOCK WASHER,5/8"

4шт.

20296R1

HEX SOC SCREW,5/8"-11 x 2"

4шт.

2

786189R1

LARGE PIN

PIN, LARGE PIVOT, FRONT AXLE, FRONT

1шт.

3

786190R2

SHAFT

PIVOT, FRONT AXLE, REAR

1шт.

4

3059875R6

SCREW,5/8" - 11 x 40mm

SCREW, SET

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

5

715560R3

SHIM

0.5 MM (.020")

1шт.

6

786193R1

KEY

DRAW

1шт.

103026

NUT,3/8"-24, G5

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

1шт.

7

3113251R1

CLIP

AXLE, FRONT CENTRE, WITH: 8-10

1шт.

7

3401562R91

AXLE

FRONT, CENTRE, WITH: 8, 9 - - FOR VERSION W/POWER STEERING

1шт.

786199R1

FITTING

LUBE

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

3шт.

786202R1

BOLT

3/4" X 85 MM

4шт.

3402212R1

BOLT

3/4" X 89 MM - FOR VERSION W/POWER STEERING

4шт.

426099

NUT,3/4"-16, G5

4шт.

103326

LOCK WASHER,3/4"

4шт.

8

786197R1

BUSHING,32mm ID x 35.12mm OD x 35mm L

2шт.

9

786198R1

BUSHING,32.02mm ID x 35.12mm OD x 23mm L

1шт.

10

3058839R91

BEARING, NEEDLE

2шт.

11

3058832R31

LEVER

STEERING UPPER, WITH PIN

1шт.

930550R1

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

933335R1

LOCK WASHER,M10

1шт.

933065R1

NUT,M10, Cl 5

1шт.

12

3131115R1

GASKET

1шт.

12

3401462R1

GASKET

SPARE PART FOR VERSION W/POWER STEERING

1шт.

13

NSS

NOT SOLD SEPARAT

LINK, DRAG - SEE DRAG LINK

1шт.

14

NSS

NOT SOLD SEPARAT

ROD, TIE - SEE TIE ROD

2шт.

14

NSS

NOT SOLD SEPARAT

ROD, TIE - SEE TIE ROD - - FOR VERSION W/POWER STEERING

1шт.

15

3137338R11

EXTENSION

FRONT AXLE CPTE. - WITH: 18, 25 - - A - 84 MM

2шт.

15

3137339R91

SPARE PART FRONT AXLE, CPTE. WITH: 18, 25 - - A - 164 MM

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

2шт.

16

3220690R1

WASHER

FOR VERSION W/POWER STEERING

4шт.

17

3058745R1

ARM

STEERING KNUCKLE, RH

1шт.

25891R1

BOLT,Hex, 1/2" - 13 x 2 3/8", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

18

3059475R1

BUSHING

EXTENSION

2шт.

19

3059771R1

SHIM

0.20 MM

1шт.

19

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

0.50 MM

1шт.

19

3217593R1

SHIM

1.00 MM

1шт.

19

3217594R1

SHIM,40mm ID x 60mm OD x 1.5mm Thk

1.50 MM

1шт.

20

3057058R91

BEARING ASSY

THRUST

2шт.

21

3137796R91

STEERING KNUCKLE

RH - B - 240 MM

1шт.

21

3401564R1

STEERING KNUCKLE

RH - B - 240 MM - - FOR VERSION W/POWER STEERING

1шт.

21

3137794R91

STEERING KNUCKLE

RH - B - 320 MM

1шт.

21

3401565R1

STEERING KNUCKLE

RH - B - 320 MM - - FOR VERSION W/POWER STEERING

1шт.

933723R1

THIN NUT,Thin, M27 x 1.5

M27

2шт.

22

3137795R91

STEERING KNUCKLE

LH - B - 240 MM

1шт.

22

3137793R91

STEERING KNUCKLE

LH - B - 320 MM

1шт.

933723R1

THIN NUT,Thin, M27 x 1.5

M27

2шт.

23

3058750R1

WASHER

2шт.

24

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

2шт.

25

3131033R1

SEAL,39mm ID x 53mm OD x 8mm Thk

SEAL, OIL

2шт.

26

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

FRONT WHEEL

2шт.

27

3137457R2

HUB

FRONT WHEEL

2шт.

28

3131915R1

RING

SEAL

1шт.

29

3059770R1

DISC

SHIM, 0.2 MM

1шт.

30

572562R91

BEARING ASSY,1.0625" ID x 1.991" OD x 0.56"

FRONT WHEEL OUTER

2шт.

30

3142105R92

BEARING

FRONT WHEEL OUTER, OPTIONAL

2шт.

31

787643R1

PLATE, LOCKING

WASHER, WITH ONE FLAT IN HOLE

2шт.

32

219753

BACK-UP RING

2шт.

33

3137461R1

CAP

CLOSING

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

34

49116D

GASKET,0.79mm Thk

2шт.

35

3137538R1

BOLT

SCREW, BALL FLANGE M14

10шт.

36

3142197R1

DISC

PLATE, LOCK

2шт.

37

715121R1

SHIM

0.4 MM (.016")

1шт.

37

715122R1

SHIM

0.75 MM (.03")

1шт.

37

3217268R1

WASHER

SHIM, 1.0 MM (.04")

1шт.

38

3058833R2

LEVER

STEERING, LOWER

1шт.

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

1шт.

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

103325

LOCK WASHER,5/8"

1шт.

933335R1

LOCK WASHER,M10

2шт.

425-1110

NUT,5/8"-18, G5

1шт.

933065R1

NUT,M10, Cl 5

2шт.

39

3401892R91

LEVER

ARM STEERING KNUCKLE, RH

1шт.

905636R1

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

2шт.

3401465R1

WASHER

SPARE PART FOR VERSION W/POWER STEERING

2шт.
