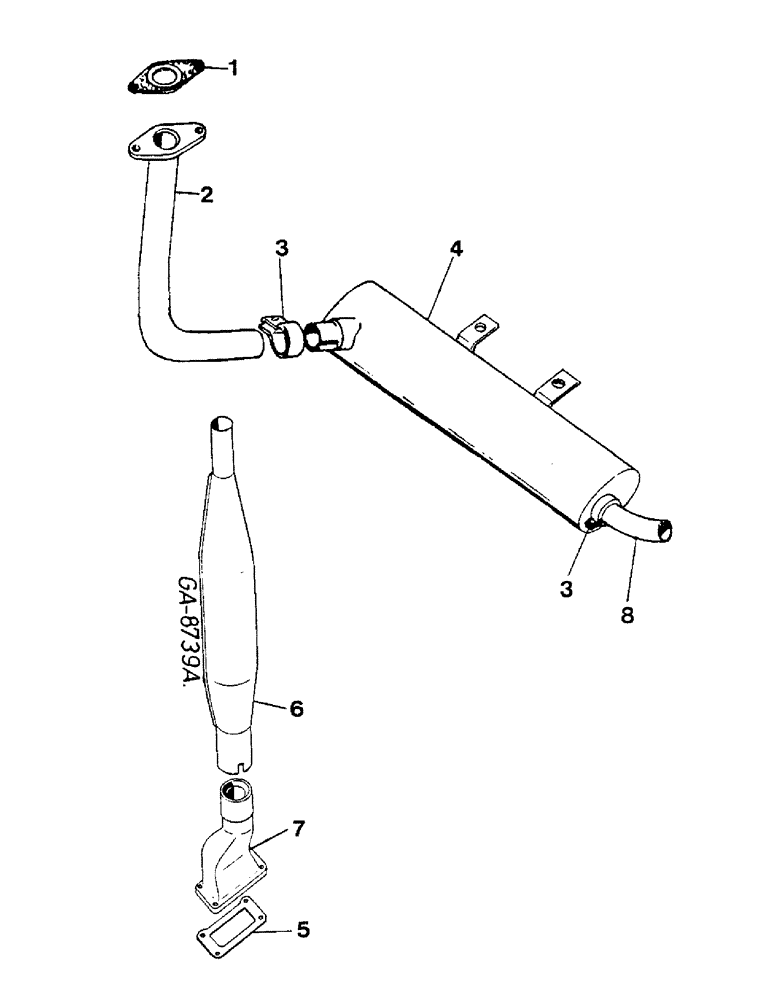

Запчасти Case IH 833 (12-14) - EXHAUST - 733/833 - Power

1

3057485R1

SEAL

1шт.

2

3405320R1

PIPE

EXHAUST - 833

1шт.

2

3226858R91

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST 733

1шт.

24619R1

BOLT

3/8" X 42 MM

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

3

710522R1

CLAMP

EXHAUST PIPE

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

3226694R91

MUFFLER

CPTE. - WITH: 3, 8

1шт.

NLS

NO LONGER SERVICED

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

1шт.

6

3399347R1

MUFFLER

833

1шт.

6

3216683R1

MUFFLER

733

1шт.

7

3399348R1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

8

3226962R1

PIPE FITTING

EXHAUST

1шт.

3144792R91

ENGINE

D-155 - FOR, 433

1шт.

3144793R91

ENGINE ASSEMBLY

ENGINE ASSY D-155 - FOR, 533

1шт.

3144794R91

ENGINE ASSEMBLY

ENGINE ASSY D-179 - FOR, 633

1шт.

3218840R92

ENGINE

D-206 - FOR, 733

1шт.

3228770R91

ENGINE ASSEMBLY

ENGINE ASSY D-239 FOR, 833 - THE ENGINE CONSISTS OF: CRANK - CASE WITH PISTIONS, CONNECTING RODS AND SLEEVES, CRANKSHAFT, CAMSHAFT AND VALVE TAPPETS

1шт.
