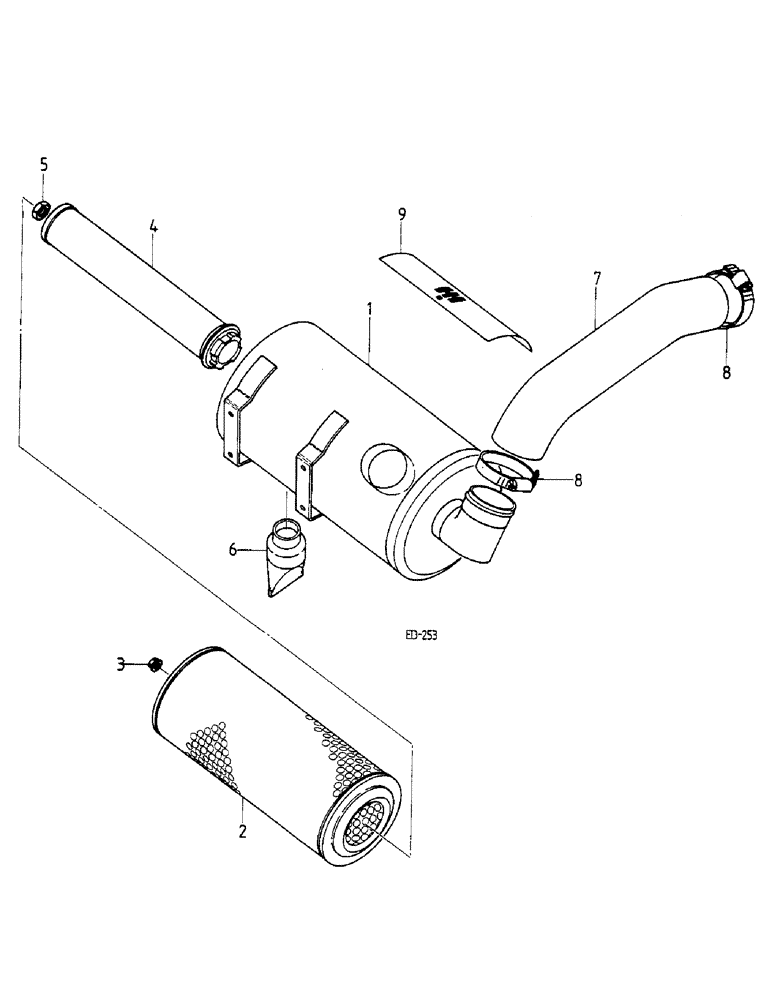

Запчасти Case IH 833 (12-10) - DRY TYPE AIR CLEANER - 833 - Power

1

3405086R91

AIR CLEANER

TWO STAGE CPTE. - CONSISTS OF: ITEMS 2-6

1шт.

930775R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

4шт.

43362

NUT,M8 x 1.25, Cl 10

1шт.

3058250R1

WASHER

1шт.

2

3146576R1

AIR FILTER

1шт.

3

3146575R1

NUT

1шт.

4

3147878R1

FILTER, ELEMENT

ELEMENT, FILTER SAFETY

1шт.

5

934302R1

THIN NUT,Thin, M16 x 1.5, Cl 05

1шт.

5

3233326R1

THIN NUT,Thin, M16 x 1.5, Cl 04

optional

1шт.

6

3219418R1

VALVE

DUST

1шт.

7

3405219R1

HOSE

1шт.

8

3219245R1

CLAMP,M70-90, Worm

2шт.

8

755021R92

CLAMP

OPTIONAL

2шт.

9

1091387R1

PRODUCT GRAPHIC

1шт.
