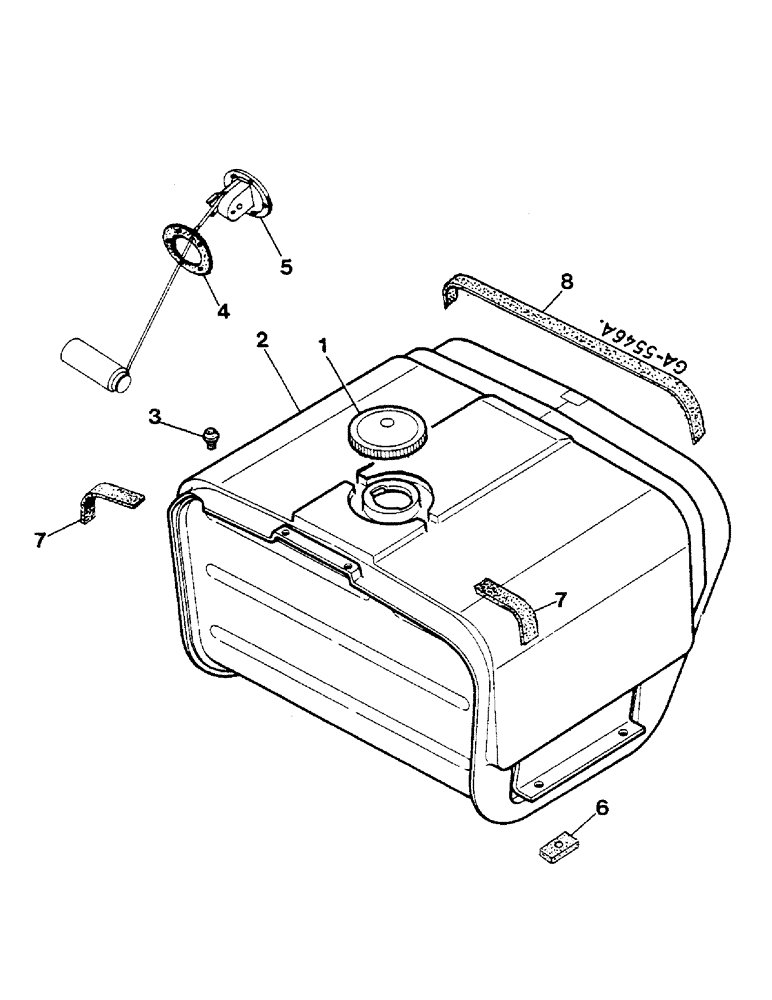

Запчасти Case IH 833 (12-02) - FUEL TANK Power

1

3137474R1

LOCKABLE FUEL CAP

WITH GASKET

1шт.

2

3142657R92

TANK

FUEL

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

120376

NUT,5/16"-18, G5

4шт.

3058250R1

WASHER

4шт.

3

786837R1

BUMPER

RUBBER

4шт.

4

3138438R1

GASKET

VDO

1шт.

4

3131253R1

GASKET

JAEGER

1шт.

5

3057574R93

GAUGE

TRANSMITTER, FUEL LEVEL - VDO

1шт.

5

787205R92

FUEL GAUGE

TRANSMITTER, LEVEL - JAEGER

1шт.

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

BOLT, M5 X 12 MM

5шт.

933598R1

SEALING RING,5mm ID x 7.5mm OD x 1mm Thk

PACKING

5шт.

6

3142584R1

PAD

RUBBER

4шт.

7

3137892R1

RUBBER STRIP

PAD

2шт.

8

786836R1

GASKET

FELT

1шт.
