Запчасти Case IH 833 (02-09) - TOOLBOX, TOOLS Accessories & Attachments / Miscellaneous

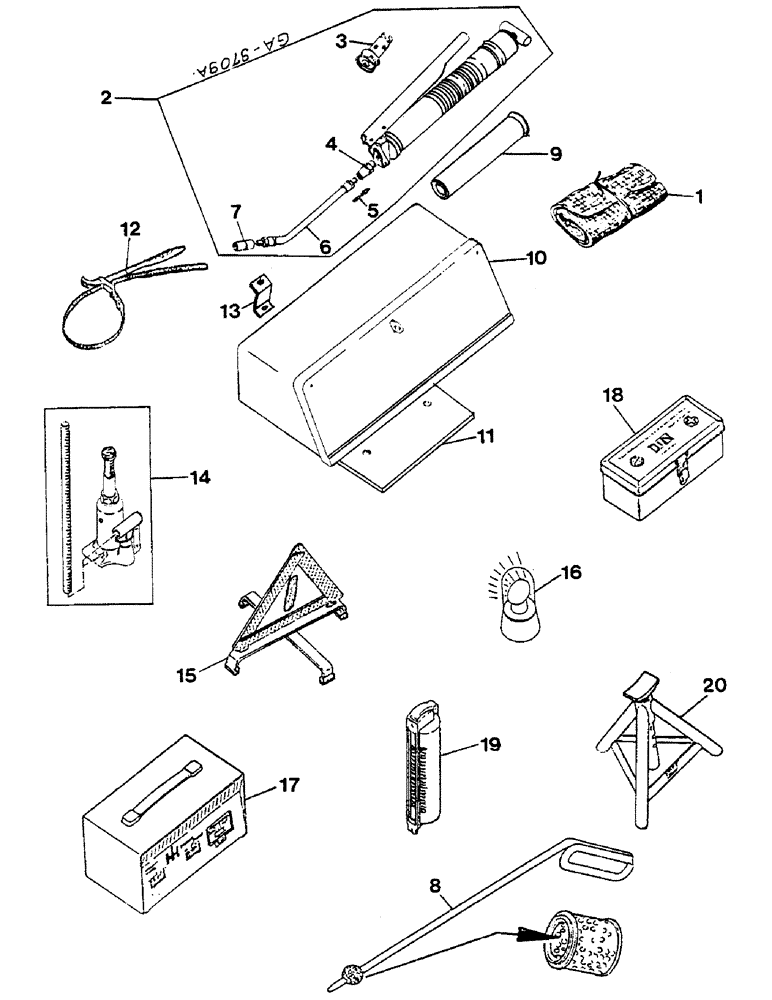

Схема запчастей Case IH 833 - (02-09) - TOOLBOX, TOOLS Accessories & Attachments / Miscellaneous
6
10
13
9
5
7
1
14
2
8
15
17
4
16
11
3
19
20
18
12

Артикул

Название

Примечание

Количество

1

3147369R91

BAG-TOOL

BAG W/TOOL KIT

1шт.

Bag tool, with: wrench, socket 15 x 16 x 34, handle, wrench, hammer 500, pliers, universal screwdriver, wrench, 8/9 mm, 14/15 mm, 20/22 mm, 10/11 mm, 16/17 mm, 24/26 mm, 12/13 mm, 18/19 mm, 27/32 mm

1шт.

1

4316274R1

TOOL ASSY.

1шт.

Bag tool, with: hammer 500 G, pliers universal, pliers universal, pliers combination, screwdriver 5.5 mm, 8 mm, screwdriver, cross recess nr. 3, spanner, cross 24/27/30/32 mm, wrench, 6/7 mm, 8/9 mm, 14/15 mm, 20/22 mm, 10/11 mm, 16/17 mm, 24/27 mm, 12/13 mm, 18/19 mm, 30/32 mm, wrench special

1шт.

2

3050943R91

GUN, GREASE

GREASE GUN LUBRICATOR

1шт.

3

3053668R91

PISTON

LUBRICATION

1шт.

3056700R1

SPARE PART SLOTTED

1шт.

4

3056634R1

VALVE POPPET

1шт.

5

3056633R1

SPRING, VALVE

1шт.

6

3053667R1

TUBE

PIPE LUBRICATION, 255 MM

1шт.

6

3053666R1

PIPE

LUBRICATION, BENTL, 89 MM

1шт.

6

3051386R91

HOSE

Lubrication

1шт.

7

3051242R91

NOZZLE CAP

1шт.

8

407073R1

SPARE PART

TOOL CLEANING, FOR DRY TYPE AIR CLEANER ELEMENT

1шт.

9

3050944R91

LUBRICANT

CONTAINER

1шт.

10

3131836R91

BOX, TOOL

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

80681

LOCK WASHER,5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

11

NSS

NOT SOLD SEPARAT

ANGLE, ORDER: 3131836R91

1шт.

12

3136279R1

TOOL

WRENCH, FOR OIL FILTER

1шт.

13

3226871R1

HOLDER

SPARE PART

1шт.

934674R1

WASHER,M10.5 x 30 x 2.5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

14

3076573R92

JACK

HYDRAULIC, 5 TON

1шт.

14

3078830R1

JACK

HYDRAULIC, 12 TON

1шт.

15

3134870R1

WARNING SIGN

TRAFFIC

1шт.

16

3134961R91

LIGHT, WARNING

1шт.

17

3131432R1

BATTERY CHARGER

10 AMP.

1шт.

18

4717

KIT, FIRST AID

EMERGENCY, EXTINGUISHER, FIRE, WITH PRESSURE LEVER VALVE, SPRAYING NOZZLE AND HOLDER

1шт.

19

PD1GS

EXTINGUISHER, W/2.2 LBS EXTINGUISHING POWDER

1шт.

19

PD2GS

EXTINGUISHER, W/4.4 LBS EXTINGUISHING POWDER

1шт.

19

PD6GM

FIRE EXTINGUISHER

W/13.2 LBS EXTINGUISHING POWDER

1шт.

20

3078831R1

STAND

REPAIR, 1.5 TON

1шт.

20

3078832R1

STAND

REPAIR, 3 TON

1шт.

Выбрано товаров: 37
