Запчасти Case IH 833 (02-07) - CONNECTING PARTS FOR IH-TEST CENTRE Accessories & Attachments / Miscellaneous

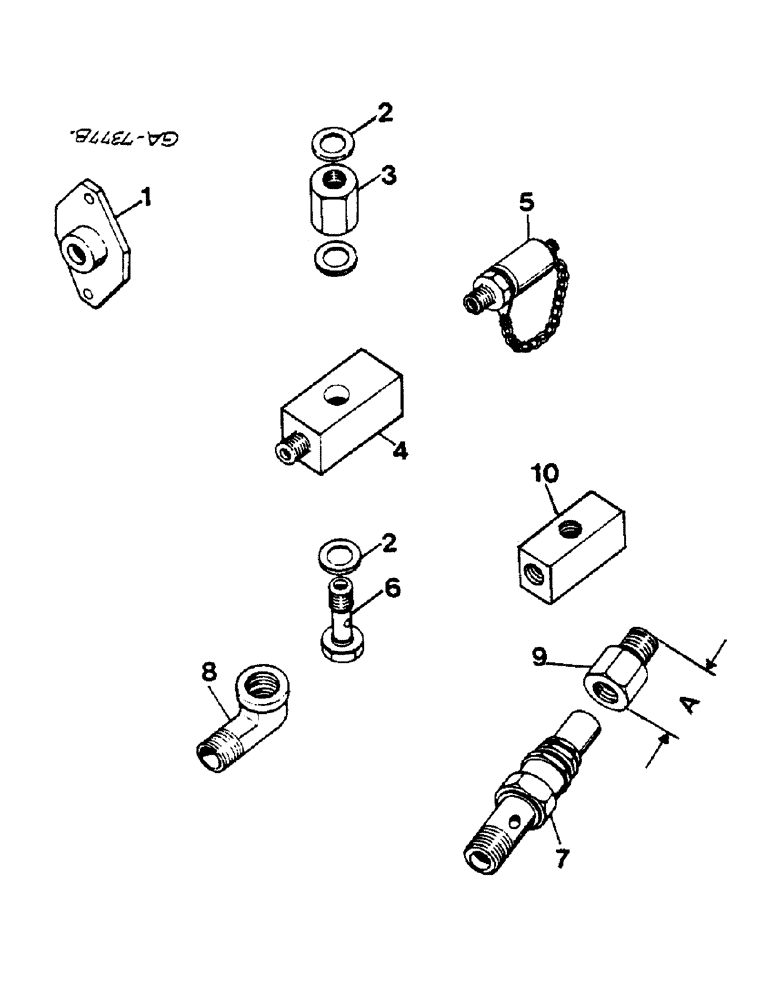

Схема запчастей Case IH 833 - (02-07) - CONNECTING PARTS FOR IH-TEST CENTRE Accessories & Attachments / Miscellaneous
3
4
1
8
2
5
10
9
7
2
6

Артикул

Название

Примечание

Количество

3221908R91

PACKAGE

SET, CONNECTING PARTS, CONSISTS OF: ITEMS 1- 6

1шт.

1

3221912R91

COVER

INJECTION PUMP

1шт.

2

933697R1

SEALING RING,M10 x 13.5 x 1

3шт.

3

3221917R1

NUT

INTAKE MANIFOLD CONNECTING

1шт.

4

3221916R1

ADAPTER

CONNECTOR, AIR CLEANER

1шт.

5

3139135R1

COUPLING, BREAK AWAY

SCREW, M16 X 1/8"

6шт.

6

3221915R1

SCREW

HOLLOW, M10

1шт.

7

3221911R1

SCREW

HOLLOW, FOR CYLINDER COVER: 3148099R91

1шт.

8

444163

ELBOW

1/8" X 1/8"

1шт.

9

3221918R91

UNION

SPARE PART CONNECTOR, M10 X 1/8"

1шт.

934847R1

CROWN NUT,Crown, M10 x 1, Cl6

1шт.

10

3224544R1

COUPLING, BREAK AWAY

SPARE PART

1шт.

Выбрано товаров: 12
