Запчасти Case IH 833 (02-05) - SERVICE TOOLS FOR TRANSMISSION Accessories & Attachments / Miscellaneous

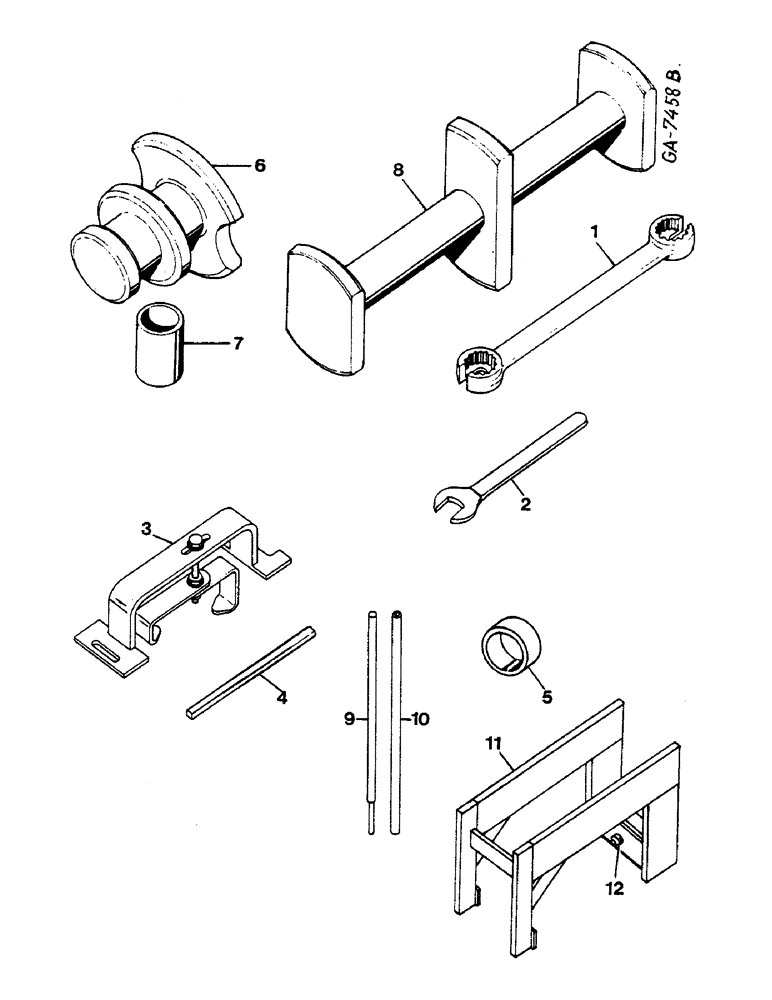

Схема запчастей Case IH 833 - (02-05) - SERVICE TOOLS FOR TRANSMISSION Accessories & Attachments / Miscellaneous
7
12
6
11
4
3
2
9
10
1
8
5

Артикул

Название

Примечание

Количество

1

3131882R1

SPECIAL WRENCH

24 X 27 MM

1шт.

2

3217859R1

SPECIAL WRENCH

2шт.

3

3217862R91

SUPPORT, DIFFERENTIAL

1шт.

931096R1

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

1шт.

934783R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8, Full Thd

1шт.

100016

NUT,M10 x 1.5, Cl 8

1шт.

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

1шт.

4

2711377R1

GAUGE CLEARANCE, DIFFERENTIAL BEARING

1шт.

5

3217861R1

SLEEVE

BUSHING, FOR: 3217860R1

1шт.

3217860R1

PULLER

SPARE PART BEARING

1шт.

6

2712193R11

GAUGE ADJUSTING, FOR PINION SHAFT OF BELT PULLEY

1шт.

7

2712195R1

BUSHING ADJUSTING, GAUGE

1шт.

8

2711395R1

GAUGE DISTANCE, SPLINE SHAFT SETTING

1шт.

9

3058986R1

TOOL

REMOVING, ROLL PIN, BRAKE BAND

1шт.

10

3058999R1

TOOL

INSTALLING, ROLL PIN, BRAKE BAND

1шт.

11

3230351R91

HOLDER

TOOL MOUNTING, FOR: 3225622R1

1шт.

12

3230352R1

SPINDLE

PRESSURE, M16 X 55 MM

1шт.

Выбрано товаров: 17
