Запчасти Case IH 833 (02-02) - SERVICE TOOLS FOR HYDRAULIC SYSTEM Accessories & Attachments / Miscellaneous

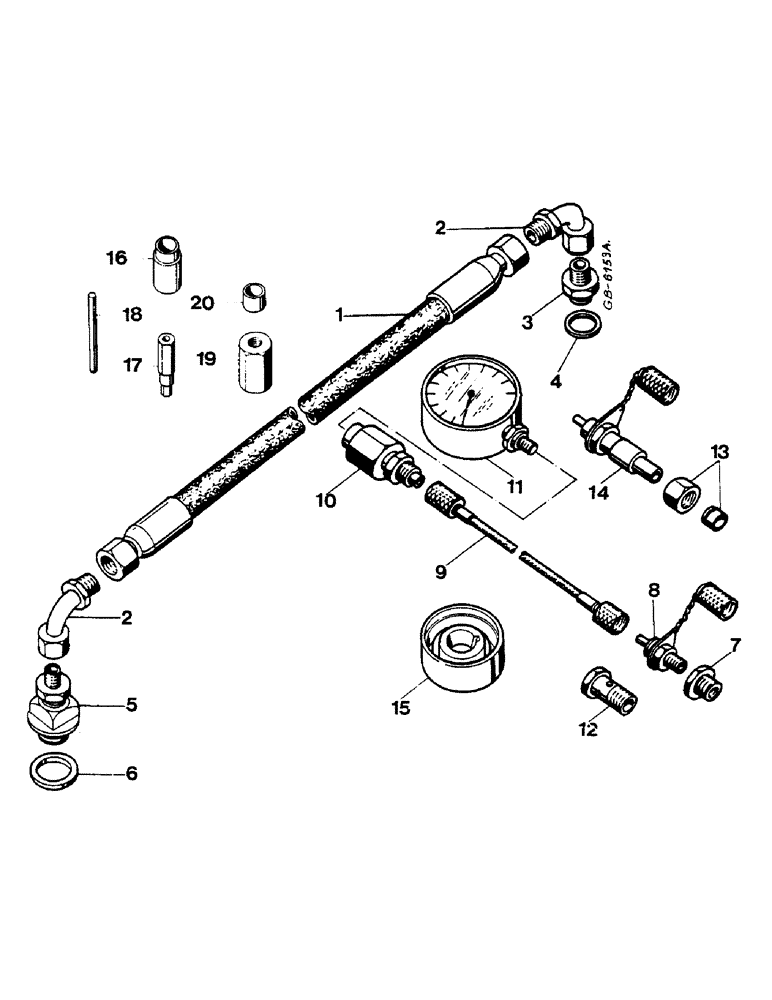

Схема запчастей Case IH 833 - (02-02) - SERVICE TOOLS FOR HYDRAULIC SYSTEM Accessories & Attachments / Miscellaneous
4
7
18
10
8
17
12
16
20
6
9
13
2
19
15
3
5
14
2
1
11

Артикул

Название

Примечание

Количество

3058933R91

REGULATOR

THROTTLE ASSY, CONSISTS OF: ITEMS 1- 6

1шт.

3139131R91

KIT

TOOL, SET OF, CONSISTS OF: ITEMS 1 - 14

1шт.

3224603R91

TOOL, SET OF, CONSISTS OF: ITEMS 16 - 20

1шт.

1

713436R91

HOSE

PRESSURE

1шт.

2

715747R91

FITTING

ELBOW, 90 DEG.

2шт.

3

717329R1

UNION

SPARE PART ADAPTER, M18 X M18

2шт.

4

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

5

NSS

NOT SOLD SEPARAT

UNION REGULATOR, ORDER: 3058933R91

1шт.

6

933609R1

RING

1шт.

7

3139134R1

PLUG

UNION ADAPTOR, M16 X 1/8" NPT

1шт.

7

3141523R1

UNION

ADAPTER, M10 X 1/8" NPT

1шт.

8

3139135R1

COUPLING, BREAK AWAY

SCREW, M16 X 1/8"

3шт.

8

3139829R1

COUPLING, BREAK AWAY

SCREW, M16 X 1/4"

2шт.

9

3139136R1

HOSE,600.00 mm

Pressure

3шт.

9

3139830R1

HOSE

Pressure, 1500 mm

3шт.

10

3139137R1

UNION

CONNECTOR, M16

3шт.

11

3139140R2

HEAD

GAUGE, SUCTION AND PRESSURE - 1 - + 1.5 KG/CM2

1шт.

11

3139141R2

GAUGE

SUCTION AND PRESSURE - 1 - + 15 KG/CM2

1шт.

11

3139142R2

GAUGE

PRESSURE - 0 - + 25 KG/CM2

1шт.

11

3139143R2

ELECTRICAL GAUGE

PRESSURE - 0 - + 25 KG/CM2

1шт.

12

3139132R1

PIPE FITTING

SCREW HOLLOW, M16 X 1/8"

2шт.

12

3139133R1

PIPE FITTING

SCREW HOLLOW, M18 X 1/8"

2шт.

13

3139139R1

UNION

CONNECTOR

1шт.

14

3139138R1

UNION

ADAPTOR

1шт.

15

3217500R1

TOOL

SPARE PART PUMP ALIGNMENT

1шт.

16

3058940R1

TOOL

SPARE PART INSTALLING, OIL SEAL, DRAFT LINK PLUNGER

1шт.

17

3058941R1

TOOL

ADJUSTING, SAFETY VALVE

1шт.

18

3058952R1

TOOL

SPARE PART PUNCH SECURING, CUT-OUT VALVE ADJUSTMENT

1шт.

19

3058950R1

UNION

CONNECTOR, SAFETY VALVE TO TEST PUMP

1шт.

20

3058953R1

BUSHING

SPARE PART SPACER 25 X 18 X 20 MM

1шт.

Выбрано товаров: 30
