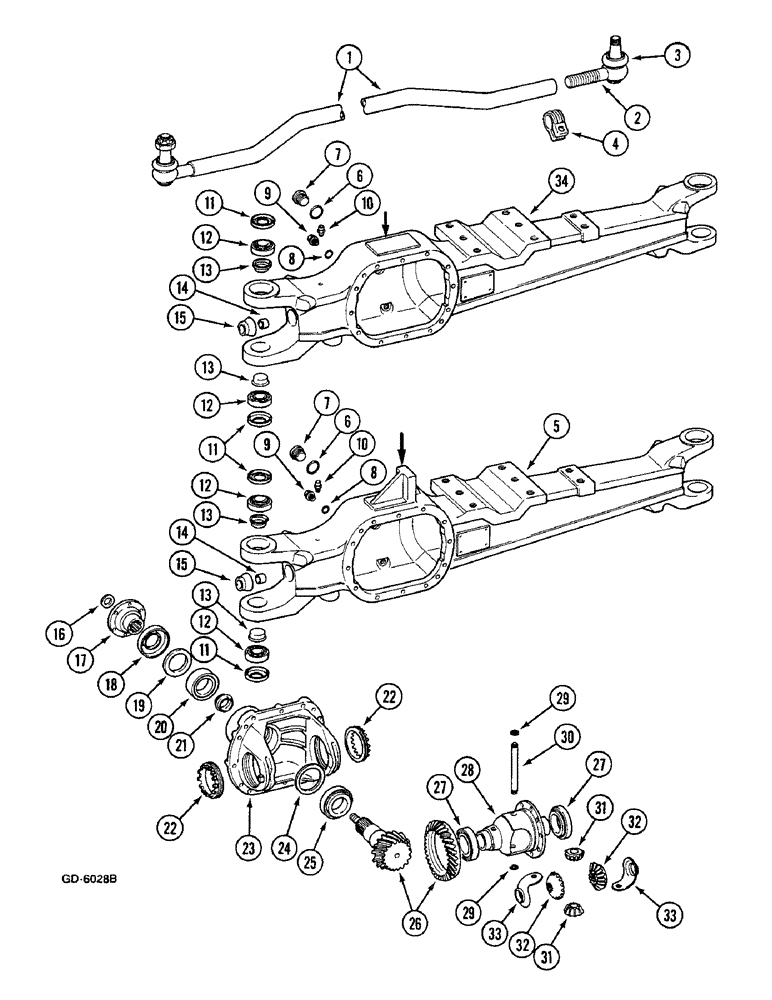

Запчасти Case IH 833 (6-424) - FRONT AXLE (APL-1251) (06) - POWER TRAIN

1

3216556R91

TIE-ROD

TIE ROD consists of Ref. 1 - 4, for models 533, 633, 733, 833

1шт.

934683R1

NUT,M18 x 1.5

for models 533, 633, 733, 833

2шт.

932956R1

COTTER PIN,M4 x 40

cotter, 4 x 40 mm, for models 533, 633, 733, 833

2шт.

1

3217281R1

ROD

tie, for models 533, 633, 733, 833

1шт.

2

3217282R1

BALL JOINT

for models 533, 633, 733, 833

1шт.

3

3217437R1

BELLOWS

BOOT, for models 533, 633, 733, 833

3шт.

4

3217280R1

CLAMP

for models 533, 633, 733, 833

1шт.

5

3216555R1

AXLE

for models 533, 633

1шт.

Mechanical Steering

1шт.

5

3216400R91

AXLE

with differential and planetary drive, for models 533, 633

1шт.

Mechanical Steering

1шт.

5

3223931R1

AXLE

SPARE PART for models 533, 633, 733, 833

1шт.

Power Steering

1шт.

5

3221936R91

DRIVE/STEERING AXLE

with differential and planetary drive, for models 533, 633, 733

1шт.

Power Steering

1шт.

932601R1

RIVET

PIN roll, for models 533, 633, 733, 833

2шт.

6

933709R1

PACKING RING

24 mm, for models 533, 633, 733, 833

1шт.

7

933799R1

PLUG,Hex Soc, M24 x 1.5

For models 533, 633, 733, 833

1шт.

8

933222R1

SEALING WASHER,M18 x 22 x 1.5

For models 533, 633, 733, 833

1шт.

9

3216584R1

PLUG

for models 533, 633, 733, 833

1шт.

10

898138H1

BREATHER

for models 533, 633, 733, 833

1шт.

10

3222497R1

PLUG

for models 533, 633, 733, 833

1шт.

11

3147243R1

CUP WASHER

for models 533, 633, 733, 833

4шт.

12

3404788R91

ROLLER BEARING,25.4 mm ID x 57.2 mm OD x 19.4 mm

for models 533, 633, 733, 833

4шт.

12

3404787R91

BEARING, CUP

cup, for models 533, 633, 733, 833

4шт.

13

3147245R1

PLUG

for models 533, 633, 733, 833

4шт.

14

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

for models 533, 633, 733, 833

2шт.

15

3216597R1

SEAL

for models 533, 633, 733, 833

4шт.

16

3216566R1

WASHER

for models 533, 633, 733, 833

1шт.

17

3216553R1

FLANGE

CONNECTOR, for models 533, 633, 733, 833

1шт.

18

3216554R1

SHIELD

for models 533, 633, 733, 833

1шт.

19

3146754R1

SEAL

SEAL, for models 533, 633, 733, 833

1шт.

20

871241R91

ROLLER BEARING

cone, for models 533, 633, 733, 833

1шт.

20

3404470R1

BEARING

cup, for models 533, 633, 733, 833

1шт.

21

3216560R1

SLEEVE

for models 533, 633, 733, 833

1шт.

22

3216565R1

NUT

for models 533, 633, 733, 833

2шт.

23

3216559R1

HOUSING

for models 533, 633, 733, 833

1шт.

931370R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

for models 533, 633, 733, 833

12шт.

Q5343

LOCK PIN,M5 x 30, Slotted

For models 533, 633, 733, 833

2шт.

932658R1

GROOVED PIN,Rd Hd, M3 x 5

groove, 3 x 5 mm, for models 533, 633, 733, 833

4шт.

24

3216564R1

SHIM

0.1 mm, for models 533, 633, 733, 833

1шт.

24

3216563R1

DISC

0.2 mm, for models 533, 633, 733, 833

1шт.

24

3216562R1

SHIM

0.3 mm, for models 533, 633, 733, 833

1шт.

24

3216561R1

DISC

0.6 mm, for models 533, 633, 733, 833

1шт.

25

313814R91

ROLLER BEARING,36.51mm ID x 28.57mm W

cone, for models 533, 633, 733, 833

1шт.

25

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

For models 533, 633, 733, 833

1шт.

26

3216552R92

GEAR-SET

for models 533, 633, 733

1шт.

89526C1

BOLT

for models 533, 633, 733, 833

10шт.

934649R1

NUT,M20 x 1.5, Cl 10

for models 533, 633, 733

1шт.

26

3216552R92

GEAR-SET

for models 533, 633

1шт.

With Self Locking Differential

1шт.

3216567R1

BOLT

for models 533, 633

10шт.

934649R1

NUT,M20 x 1.5, Cl 10

for models 533, 633, 733

1шт.

27

3216713R91

BEARING, ROLLER

for models 533, 633, 733, 833

2шт.

28

3216568R1

HOUSING

for models 533, 633, 733

1шт.

29

3139039R1

RING, SNAP

RING SNAP retaining, for models 533, 633, 733, 833

2шт.

30

3216569R1

LARGE PIN

PIN, LARGE AXLE, diff., for models 533, 633, 733

1шт.

31

3147201R1

GEAR

for models 533, 633, 733, 833

2шт.

32

3216570R1

GEAR

for models 533, 633, 733, 833

2шт.

33

3216572R1

THRUST WASHER

for models 533, 633, 733, 833

2шт.

34

3229805R1

AXLE

for models 533, 633, 733

1шт.

Power Steering

1шт.

For Austria and Switzerland Only

1шт.

Use Without Front Loader and Cab

1шт.

34

3229797R91

with differential and planetary drive, for models 533, 633, 733

1шт.

Power Steering

1шт.

For Austria and Switzerland Only

1шт.

Use Without Front Loader and Cab

1шт.
