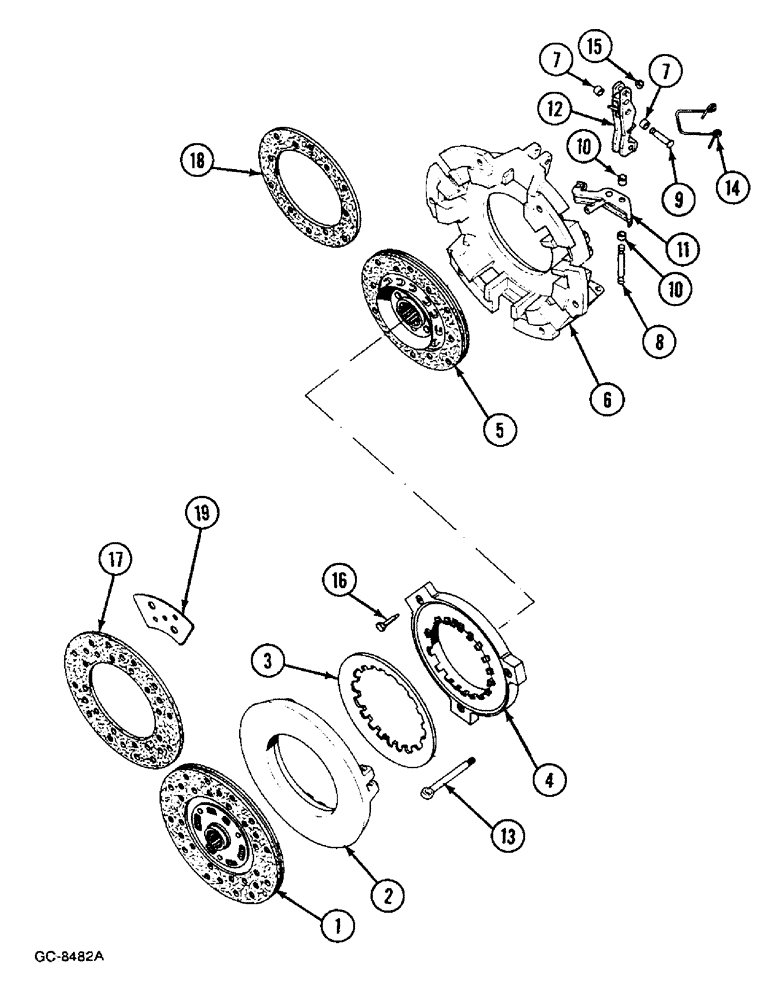

Запчасти Case IH 833 (6-298) - DOUBLE CLUTCH "LUK" (06) - POWER TRAIN

3404116R91

CLUTCH ASSEMBLY

Consists of Ref. 1 - 18, for model 833

1шт.

3216398R94

CLUTCH ASSEMBLY

Consists of Ref. 1 - 18, for models 433, 533

1шт.

3224545R92

CLUTCH ASSEMBLY

Consists of Ref. 1 - 18, for models 633, 733

1шт.

21237R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

3225978R91

CLUTCH & DISC ASSY

with 17, 19, for models 433, 533

1шт.

1

3224546R92

CLUTCH & DISC ASSY

with 17, 19, for models 633, 733, 833

1шт.

2

3224558R1

PLATE

1шт.

3

3224557R1

BELLEVILLE SPRING

for models 633, 733, 833

1шт.

3

3134896R2

SPRING

for models 433, 533

1шт.

4

3134888R1

PLATE

1шт.

932572R1

LOCK PIN,M4 x 12, Slotted

3шт.

5

3134885R92

CLUTCH & DISC ASSY

with 18

1шт.

5

3404117R91

CLUTCH DISC

CLUTCH DISK PTO clutch, for model 833

1шт.

6

3224547R1

HOUSING

1шт.

7

3223910R1

BUSHING

SPACER

3шт.

8

3224551R1

PIN

3шт.

9

3223909R1

PIN

3шт.

10

3224552R1

SPACER

6шт.

11

3224549R1

LEVER

3шт.

8004396R91

SET

PACKAGE, repair, consists of Ref. 8, 10, 11, 14, for models 433, 533, 633

1шт.

12

3224548R1

LEVER

3шт.

3224561R1

ROD

SPARE PART

3шт.

8004395R91

KIT

PACKAGE, repair, consists of Ref. 7, 9, 12, 15, for models 433, 533, 633

1шт.

13

3224559R1

BOLT

3шт.

Q2932

LOCK PIN,M8 x 36, Slotted

3шт.

14

3224550R1

SPRING

3шт.

15

3224560R1

NUT

3шт.

16

3224556R1

BOLT

3шт.

933681R1

THIN NUT,Thin, M10 x 1.5, Cl 04

3шт.

17

3225980R1

LINING

for models 433, 533

2шт.

17

3224563R1

LINING

for models 633, 733, 833

2шт.

712673R1

RIVET

24шт.

932654R1

RIVET,Flat Hd, M4 x 5

6шт.

18

3134886R1

LINING

2шт.

3134887R1

RIVET

12шт.

19

3224563R1

LINING

for models 633, 733, 833

6шт.

19

3225979R1

SPRING

SPARE PART for models 433, 533

6шт.
