Запчасти Case IH 833 (4-212) - TRACTORMETER (04) - ELECTRICAL SYSTEMS

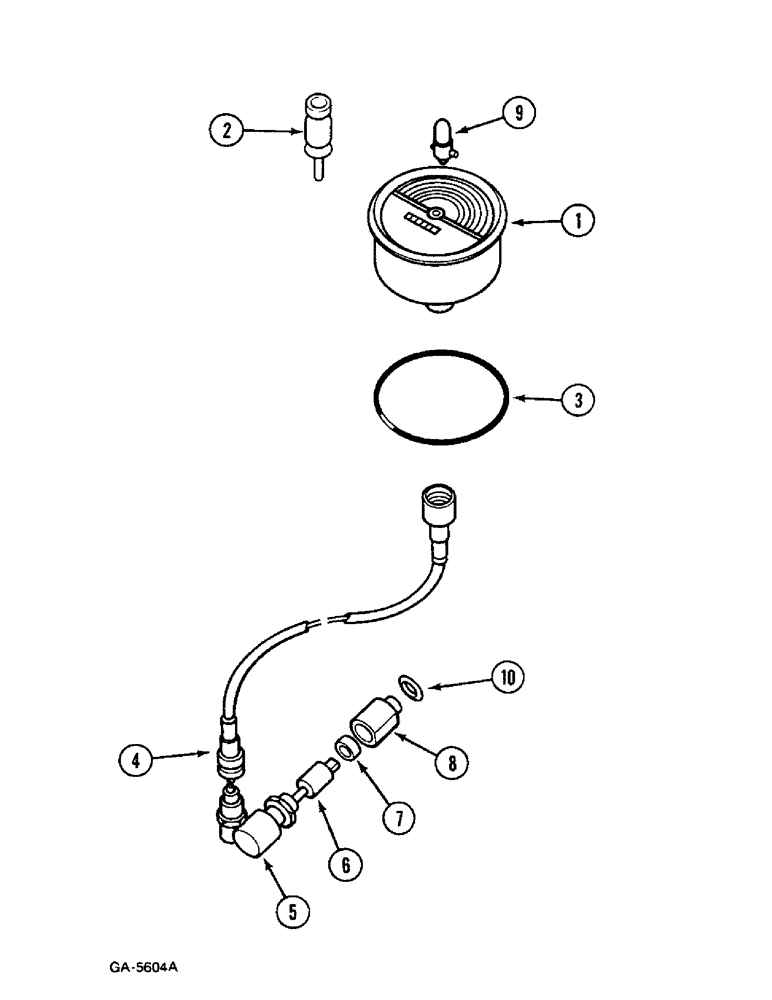

Схема запчастей Case IH 833 - (4-212) - TRACTORMETER (04) - ELECTRICAL SYSTEMS
7
3
8
2
1
10
9
5
6
4

Артикул

Название

Примечание

Количество

1

3216608R91

TRACTORMETER

25 km/h, Jaeger, for model 433

1шт.

1

82381C1

TRACTORMETER

30 km/h, Jaeger, for models 533, 633

1шт.

1

82380C1

TRACTORMETER

30 km/h, Jaeger, for model 433

1шт.

1

1328640C91

TRACTORMETER

40 km/h, Jaeger, for model 733

1шт.

1

3216492R91

TRACTORMETER

25 km/h, VDO, for model 433

1шт.

1

3216508R91

SPEEDOMETER

TRACTOR 16 mph, VDO, for model 433

1шт.

1

3229779R1

TRACTORMETER

30 km/h, VDO, for model 433

1шт.

1

3229780R1

TRACTORMETER 19 mph, VDO, for model 433

1шт.

1

3142187R91

TRACTORMETER

25 km/h, VDO, for models 533, 633, 733

1шт.

1

3220481R91

SPEEDOMETER

TRACTOR 16 mph, VDO, for models 533, 633

1шт.

1

3229785R1

TRACTORMETER

30 km/h, VDO, for models 533, 633, 733

1шт.

1

3229781R1

TRACTORMETER 19 mph, VDO, for models 533, 633, 733

1шт.

2

3131468R1

SOCKET

Jaeger

1шт.

2

3131182R1

CONNECTOR,ELECTRIC

SOCKET VDO

1шт.

3

3131472R1

O-RING

Jaeger

1шт.

3131470R1

HOLDER

Jaeger

1шт.

3

3230832R1

O-RING

VDO

1шт.

4

3232006R2

CABLE

Jaeger, for models 433, 533, 633

1шт.

4

3058287R94

CABLE,1540mm L

Jaeger, for model 733

1шт.

4

3131889R92

FLEXIBLE DRIVE SHAFT

CABLE VDO, for model 733

1шт.

4

3232005R1

CABLE

CABLE VDO, for models 433, 533, 633

1шт.

5

3141349R92

DRIVE, ANGLE

VDO, for models 433, 533, 633, 733

1шт.

6

3056986R1

SUPPORT

COUPLING VDO, for models 433, 533, 633, 733

1шт.

6

3059929R1

DRIVE DOG

COUPLING Jaeger, optional, for models 433, 533, 633, 733

1шт.

7

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

1шт.

8

3059191R11

SPACER

with: Ref. 7, 10

1шт.

9

3221006R1

BULB,W10/3, 12V, 3W

LAMP H 12V/ 3W, Jaeger

1шт.

9

3050957R1

BULB

LAMP J 12V/ 2W, VDO

1шт.

10

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

3148767R1

CABLE TIE

CABLE STRAP 200 mm

2шт.

Выбрано товаров: 30
