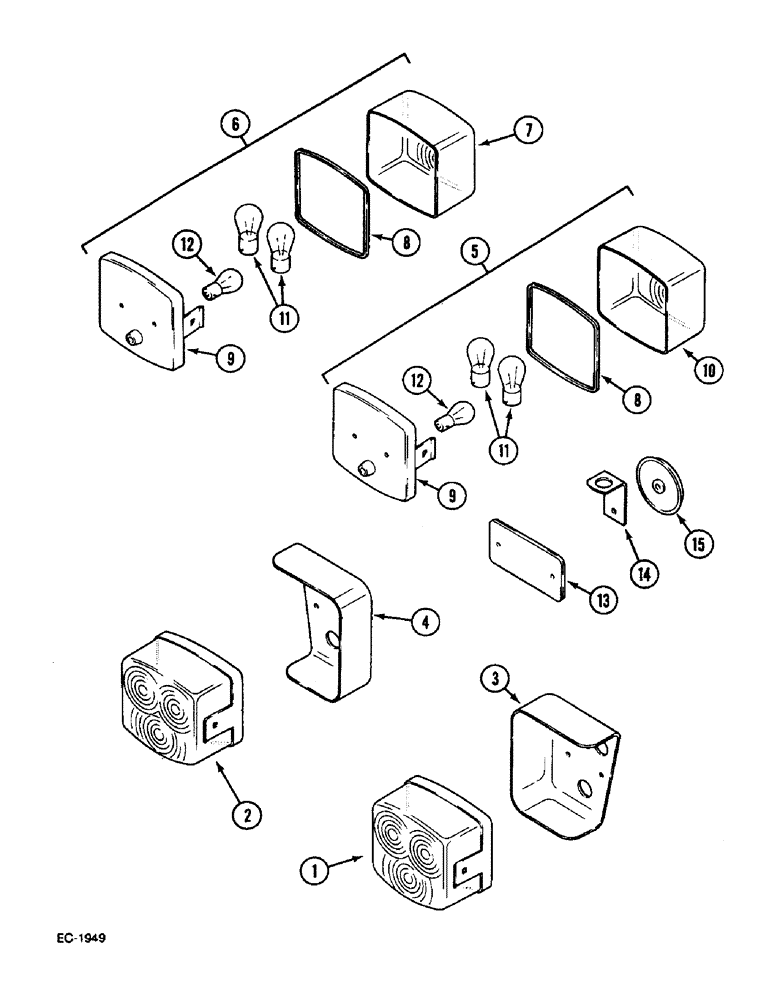

Запчасти Case IH 833 (4-182) - FLASH LAMPS - CAB (04) - ELECTRICAL SYSTEMS

1

3226119R1

LIGHT

flash, left, Hella

1шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

2шт.

933971R1

WASHER

4 x 8 x 0.5 mm

2шт.

933993R1

NUT

M4

2шт.

2

3226120R1

LIGHT

flash, right, Hella

1шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

2шт.

933971R1

WASHER

4 x 8 x 0.5 mm

2шт.

933993R1

NUT

M4

2шт.

3

1284541C1

MASK

left

1шт.

4

1284542C1

MASK

right

1шт.

5

3223263R91

LAMP, TAIL

LIGHT, TAIL ASSY. flash and stop, left, Hella

1шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

2шт.

933971R1

WASHER

4 x 8 x 0.5 mm

2шт.

933993R1

NUT

M4

2шт.

6

3223264R91

TAIL LAMP

LIGHT, TAIL ASSY. flash and stop, right, Hella

1шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

2шт.

933971R1

WASHER

4 x 8 x 0.5 mm

2шт.

933993R1

NUT

M4

2шт.

7

83874C1

LENS

1шт.

8

83875C1

GASKET

2шт.

9

83876C1

SUPPORT

HOLDER

2шт.

10

83873C1

LENS

for models 433, 533, 633, 733

1шт.

11

3131227R1

BULB,P25-1, 12V, 21W

Lamp

1шт.

12

3051192R1

BULB

LAMP 12V/ 10W

1шт.

13

3221232R2

REFLECTOR,RED

Jokon

2шт.

933971R1

WASHER

4 x 8 x 0.5 mm

4шт.

931339R1

SCREW,Slotted Cheese, M4 x 0.7 x 16mm, Cl 8.8

4шт.

933993R1

NUT

M4

4шт.

14

3147866R1

ANGLE

2шт.

15

3118665R2

REFLECTOR

Hella

2шт.

15

3233791R2

REFLECTOR

Ulo, optional

2шт.

934271R1

HARDWARE

SCREW M6 x 14 mm

2шт.

933833R1

LOCK WASHER,M6

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.
