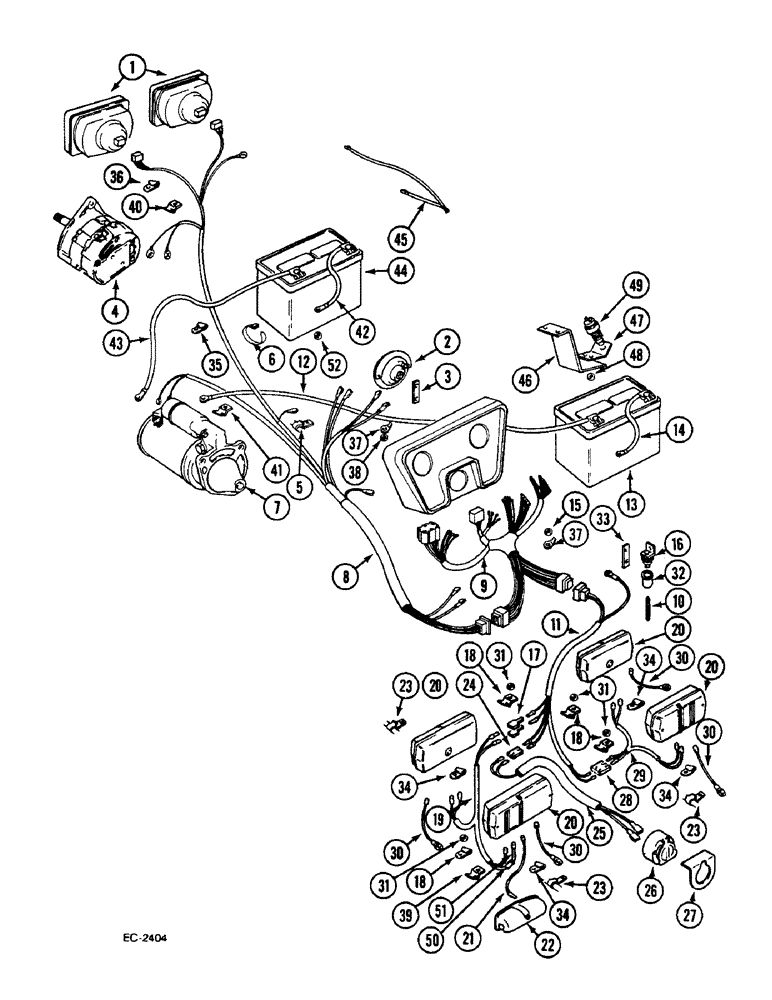

Запчасти Case IH 833 (4-148) - CABLES, CLIPS (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HEADLIGHT see Figures 4-178, 4-186

2шт.

2

3057542R91

HORN

Bosch

1шт.

2

3057682R92

HORN

Mixo

1шт.

2

3147285R91

HORN

Seima

1шт.

3

3142066R1

BRACKET

Mixo

2шт.

3

3147286R1

SUPPORT

BRACKET Seima

1шт.

103320

LOCK WASHER,5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

4

NSS

NOT SOLD SEPARAT

ALTERNATOR see Figures 4-140, 4-166

1шт.

5

3229710R1

CLIP

1шт.

6

3148767R1

CABLE TIE

CABLE STRAP 200 mm

1шт.

7

NSS

NOT SOLD SEPARAT

STARTER see Figure 4-166

1шт.

8

3148482R2

HARNESS

front, for models 433, 533, 633

1шт.

8

3226881R2

HARNESS

front, for model 733

1шт.

9

3220362R3

HARNESS

version with tail light, flasher and brake light, Serial Range: -XXXX

1шт.

9

3402233R1

HARNESS

version with tail light, flasher and brake light, Start Serial: XXXX

1шт.

9

3148487R3

HARNESS

version with tail and flasher light, Serial Range: -XXXX

1шт.

9

3402235R1

HARNESS

version with tail and flasher light, Start Serial: XXXX

1шт.

9

3216256R1

HARNESS

version with tail and safety start switch

1шт.

9

3148488R1

HARNESS

SPARE PART version with tail light for semi-crown fenders, Serial Range: -XXXX

1шт.

9

3402236R1

HARNESS

version with tail light for semi-crown fenders, Start Serial: XXXX

1шт.

10

3134352R1

SPRING

Austrian version, Serial Range: -XXXX

1шт.

11

3229775R1

CABLE

rear, version with flasher unit and brake light

1шт.

11

3220359R1

CABLE

rear, version with flasher unit and brake light, Austrian version, Serial Range: -XXXX

1шт.

11

3148493R1

CABLE

HARNESS version with flasher unit, without brake light

1шт.

11

3148494R1

CABLE

HARNESS rear, version with flasher unit, without brake light

1шт.

12

3148498R1

CABLE

starter motor

1шт.

13

3137413R1

BATTERY

12V/ 88AH for models 433, 533, 633, Serial Range: -XXXX

1шт.

13

3142083R1

BATTERY

12V/ 88AH, optional, for models 433, 533, 633, Serial Range: -XXXX

1шт.

14

718091R91

CABLE

STRAP for models 433, 533, 633, Serial Range: -XXXX

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

for models 433, 533, 633

1шт.

15

3058249R1

WASHER

10 mm

1шт.

16

3058667R92

PARK BRAKE SWITCH

stop light, Austrian version, Serial Range: -XXXX

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

17

3057563R91

TERMINAL CONNECTOR

2. pole

1шт.

18

3229713R1

CLIP

1шт.

179812

GEAR

1шт.

19

3229773R1

CABLE

version with tail light, flasher and brake light

1шт.

19

3220356R1

CABLE

SPARE PART version with tail light, flasher and brake light, Austrian, Serial Range: -XXXX

1шт.

19

3216996R1

CABLE

version with tail and flasher light

1шт.

19

787288R91

CABLE

version with lamp, flash, position and tail

1шт.

20

NSS

NOT SOLD SEPARAT

LAMP flash and tail light, see Figure 4-182

1шт.

21

3134263R1

CABLE

800 mm, number plate light

1шт.

21

3141573R1

CABLE

660 mm, number plate light

1шт.

22

NSS

NOT SOLD SEPARAT

LAMP see Figure 4-182

1шт.

23

44709D

CLIP

SPARE PART

4шт.

24

3056310R91

CONNECTOR, ELEC

CONNECTOR 1 pole

1шт.

24

3054787R91

CONNECTOR, ELEC

CONNECTOR 2 pole

1шт.

25

3148495R1

CABLE

HARNESS

1шт.

25

3220358R1

HARNESS

30 km/h version, for models 733, 833

1шт.

25

3216638R1

HARNESS

SPARE PART used on units with semi crown type fenders, France only

1шт.

25

3220358R1

HARNESS

Austrian version, Serial Range: -XXXX

1шт.

25

3148496R1

HARNESS

used on units with semi crown type fenders, France only

1шт.

26

3142496R1

SOCKET/RECEPTACLE,A7

1шт.

120385

WASHER,3/16"

3шт.

931858R1

SCREW,M5 x 0.8 x 35mm, Cl 5.8

M5 x 35 mm

3шт.

120361

NUT,Hex Mach Screw, #10 - 24

3шт.

3058125R91

CABLE

1шт.

3131909R1

CAP

1шт.

27

3148483R1

SUPPORT

1шт.

28

3141105R1

CONNECTOR, ELEC

CONNECTOR 3 pole

1шт.

29

3229774R1

CABLE

version with tail light, flasher and brake light

1шт.

29

3220357R1

CABLE

SPARE PART version with tail light, flasher and brake light, Austrian, Serial Range: -XXXX

1шт.

29

3216995R1

CABLE

version with tail and flasher light

1шт.

29

787289R91

CABLE

version with lamp, flash, position and tail

1шт.

30

3216997R1

CABLE

1шт.

31

3058250R1

WASHER

8 mm

1шт.

32

3134351R1

CAP

Austrian version, Serial Range: -XXXX

1шт.

33

3138859R1

SUPPORT

SPARE PART Austrian version, Serial Range: -XXXX

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

3216641R1

CLAMP

4шт.

35

3229708R1

CLIP

1шт.

36

3229711R1

CLIP

1шт.

37

3145710R1

SPADE TERMINAL

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

38

120392

WASHER,1/4", SAE

(7 x 16 x 1.3 mm)

1шт.

39

3217492R1

CLAMP

2шт.

40

3229712R1

CLIP

1шт.

41

3229709R1

CLIP

1шт.

42

3148449R1

CABLE

1шт.

43

3217834R1

CABLE

starter motor, for models 433, 533, 633

1шт.

43

3226882R1

CABLE

starter motor, for models 733, 833

1шт.

44

3217833R1

BATTERY, DRY

BATTERY DRY 12V/ 88AH

1шт.

45

3223938R1

CABLE

version with safety start switch

1шт.

46

3229776R1

SUPPORT

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

47

3223967R1

ANGLE

1шт.

48

934948R1

WASHER,M6

2шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

933833R1

LOCK WASHER,M6

2шт.

832-10406

NUT,M6 x 1, Cl 8

2шт.

49

3147137R1

SWITCH

Mesmer, stop light

1шт.

50

3229642R1

SOCKET/RECEPTACLE

1 pole, used with: P/N 787288R91

1шт.

51

3229643R1

CABLE

used with: P/N 787288R91

1шт.

52

934799R1

WASHER

1шт.
